Quick Guide 6. Cable Device to DMZ
Version 7.2 37 AudioCodes Mediant Gateway

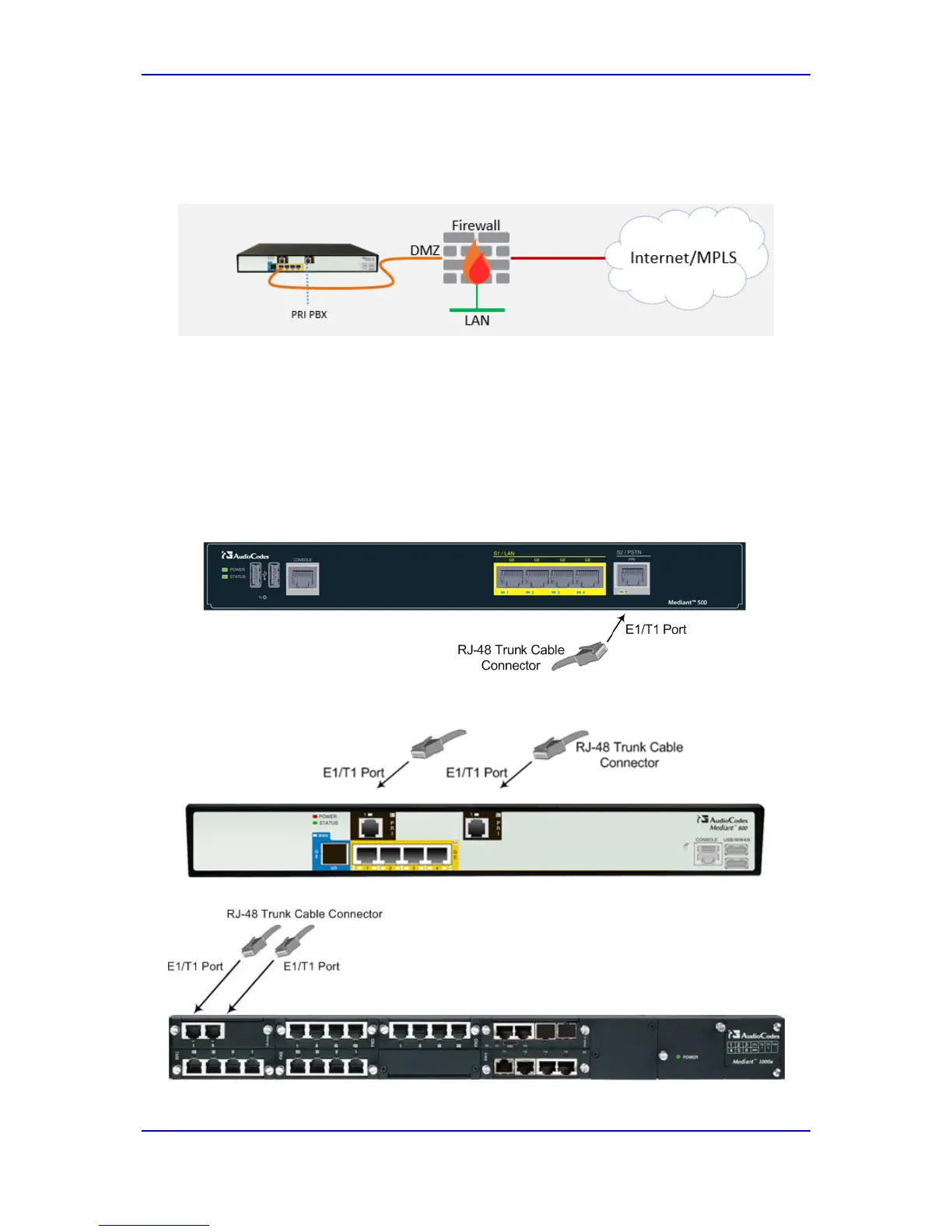

6 Cable Device to DMZ
Once you the device has reset with your new configuration (as described in the previous
section), its IP address changes to your newly configured address. You can now cable the
device to your DMZ network:
1. Disconnect the cable connecting the device to your PC.
2. Cable to the DMZ Network:
a. Connect one end of a straight-through RJ-45 Ethernet cable (Cat 5e or Cat 6) to
Port 1.
b. Connect the other end of the cable to your DMZ network.
3. Connect the E1/T1 trunk interface:
a. Connect the E1/T1 trunk cable to the device’s E1/T1 port.
b. Connect the other end of the trunk cable to your PBX switch.
Figure 6-1: Mediant 500 Cabling E1/T1 Port
Figure 6-2: Mediant 800B Cabling E1/T1 Port
Figure 6-2: Mediant 1000B Cabling E1/T1 Port
