4 Mounting the Device
You can mount the device using one of the following methods:
◼ Desktop/shelf mounting
◼ 19-inch Rack mounting
The device must be installed only in a restricted access location that is compliant with ETS
300 253 guidelines where equipotential bonding has been implemented.
4.1 Desktop / Shelf Mounting
Place the device on a desktop/shelf using the four anti-slide bumpers (supplied), which you need to
stick on the grooves located on the underside of the device. The bumpers avoid involuntary
movement of the unit on the desktop/shelf.
4.2 19-Inch Rack Mounting

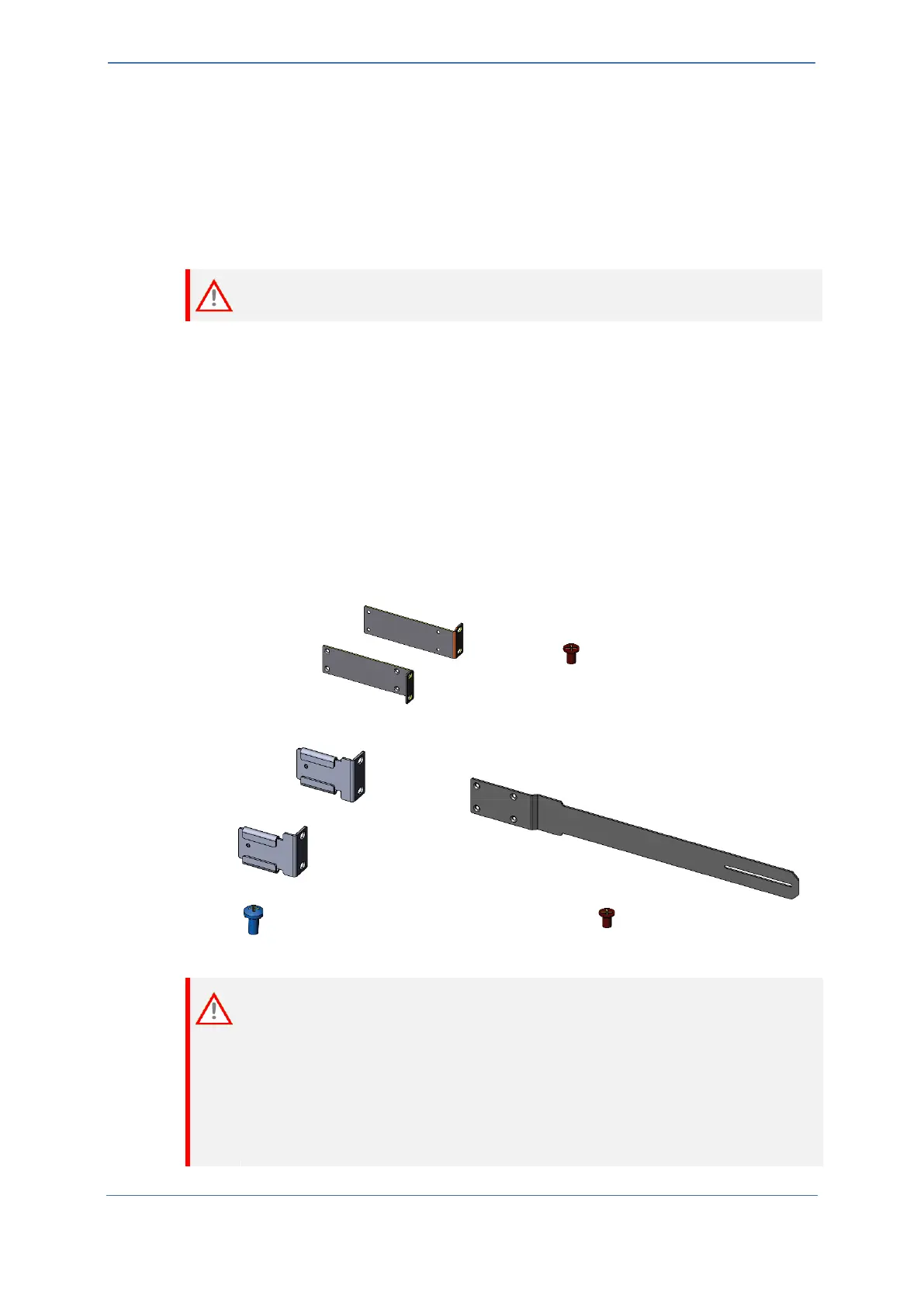

You can mount the device in a standard 19-inch rack. This is done by using front- and rear-mounting
brackets (supplied). The length of the rear-mounting brackets can be adjusted to suit the distance
between the device and the rear rack post.
◼ Front-mounting brackets:
◼ Rear-mounting brackets:
Warning:
◼ Elevated Operating Ambient: If installed in a closed or multi-unit rack assembly,
consideration should be given to installing the equipment in an environment
compatible with the maximum ambient temperature (Tmax) of 40°C (104°F).
◼ Reduced Air Flow: Installation should be such that the amount of air flow required for
safe operation on the equipment is not compromised. Do not stack equipment one on
top of the other and keep the ventilation openings on the front and rear panels free
from cables or any objects to allow free air flow.
◼ Only one device can be mounted per rack mount shelf.
