AudioCodes MediaPack 5 Series User Manual

4. Mounting the Device
MP-524 & MP-532
- 13 -
3. Attach the rear-mounting flanges to the rear sides of the chassis, using the supplied screws.

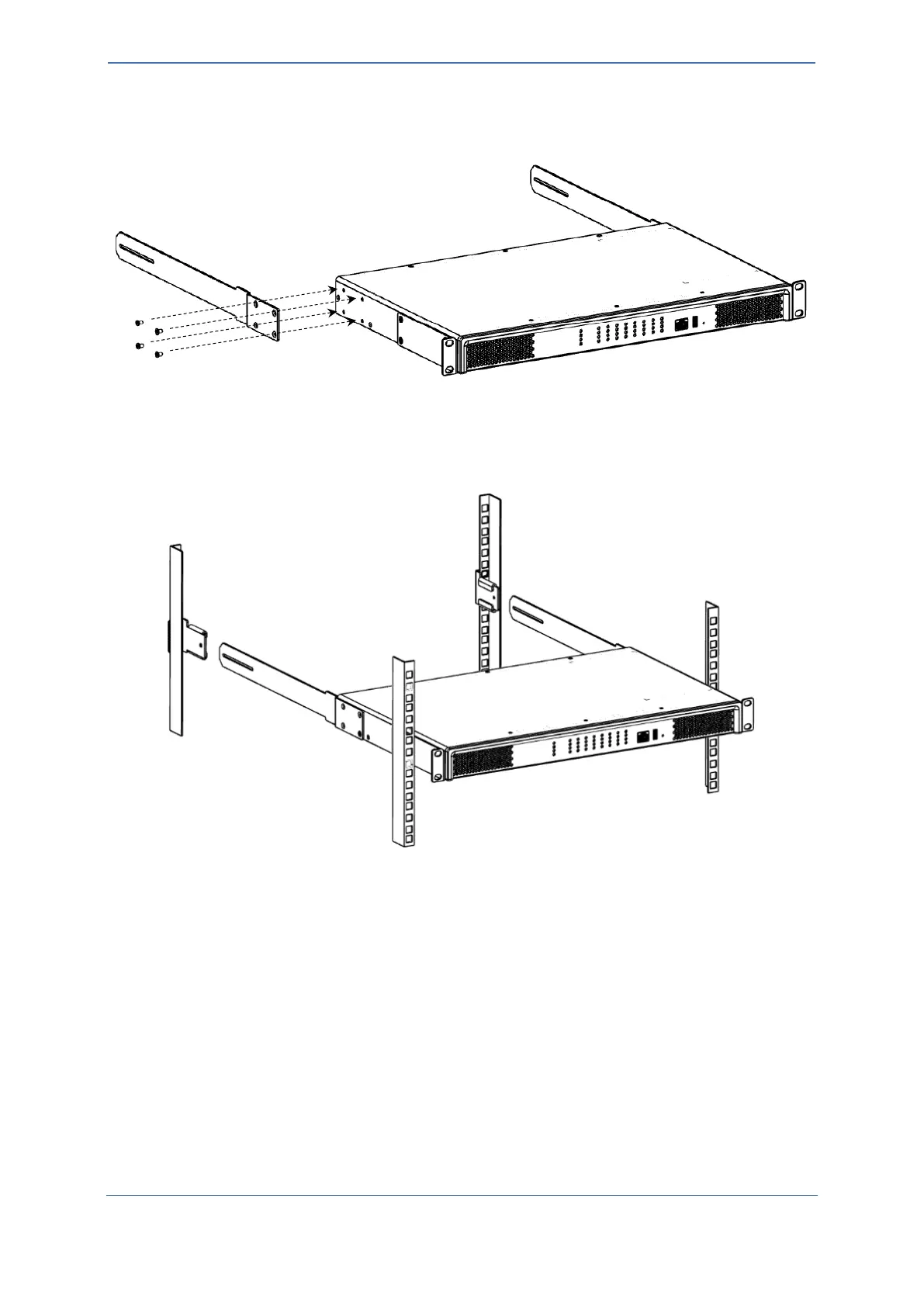

Figure 4-5: Attaching Rear-Mounting Flange to Chassis Rear-Side Mounting Holes
4. With two people, lift the chassis into the rack from the front of the rack.
5. Slide the two rear-mounting bracket flanges into the slide rails of the rear-mounting brackets
that you previously attached to the rear posts.
Figure 4-6: Sliding Rear-Mounting Flanges into Rear-Mounting Brackets

AudioCodes MediaPack 5 Series Specifications

General

Brand	AudioCodes
Model	MediaPack 5 Series
Category	Gateway
Language	English
