- 16 -
To connect device to an earth ground:
1. Prepare an adequate length (maximum 20 mm or 0.8 in.) of stranded grounding wire (16
AWG minimum size) for the ground connection, as shown in the following figure:

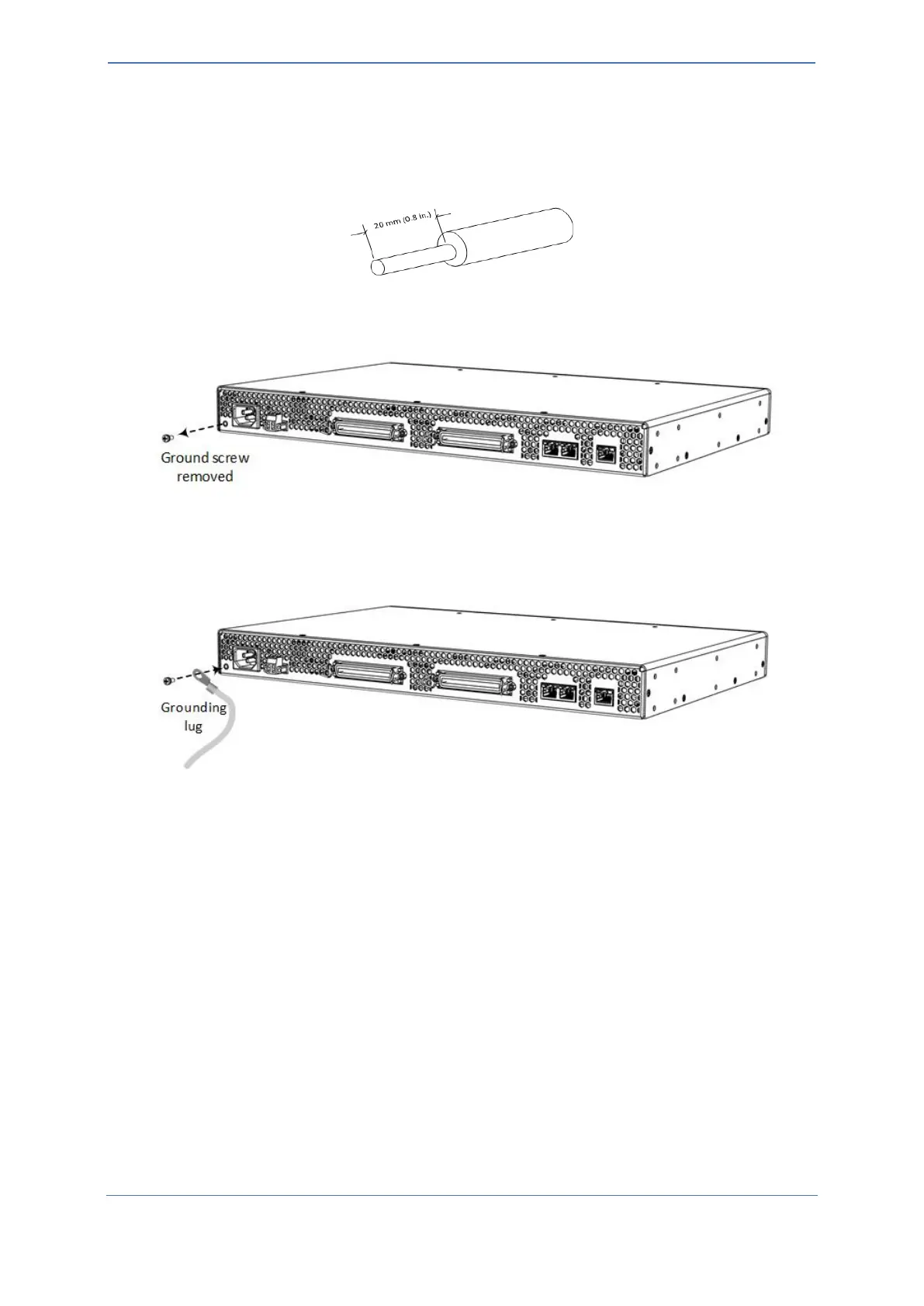

Figure 8: Stripped Grounding Wire
2. Using a Philips-head screwdriver, remove the ground screw located on the rear panel, as
shown below:
Figure 9: Removing Ground Screw
3. Insert one end of the grounding wire into the grounding lug, and then use a crimping tool (not
supplied) to secure the wire to the grounding lug.
4. Attach the grounding lug to the chassis using the grounding screw.
Figure 10: Attaching Grounding Lug to Chassis with Grounding Screw
5. Connect the other end of the grounding wire to the building protective earth. This should be
in accordance with the regulations enforced in the country in which the device is installed.
