AudioCodes MediaPack MP-114 Installation Manual

Installation Manual 10 Document #: LTRT-59809
MediaPack Series
2.1 Installing the MP-11x Series
This subsection describes the MP-11x hardware installation.
2.1.1 Physical Description
The subsections below provide a physical description of the front and rear panels of the
MP-11x.
2.1.1.1 MP-11x Front Panel
The device's front panel provides LEDs for indicating various operating statuses. The figure
below displays the front panel of the MP-118. This is similar to the MP-114 and MP-112
models, differing only in the number of Channel Status LEDs (corresponding to the
number of channels). For a description of the device's LEDs, refer to 'Monitoring Front-
Panel LEDs' on page 49.

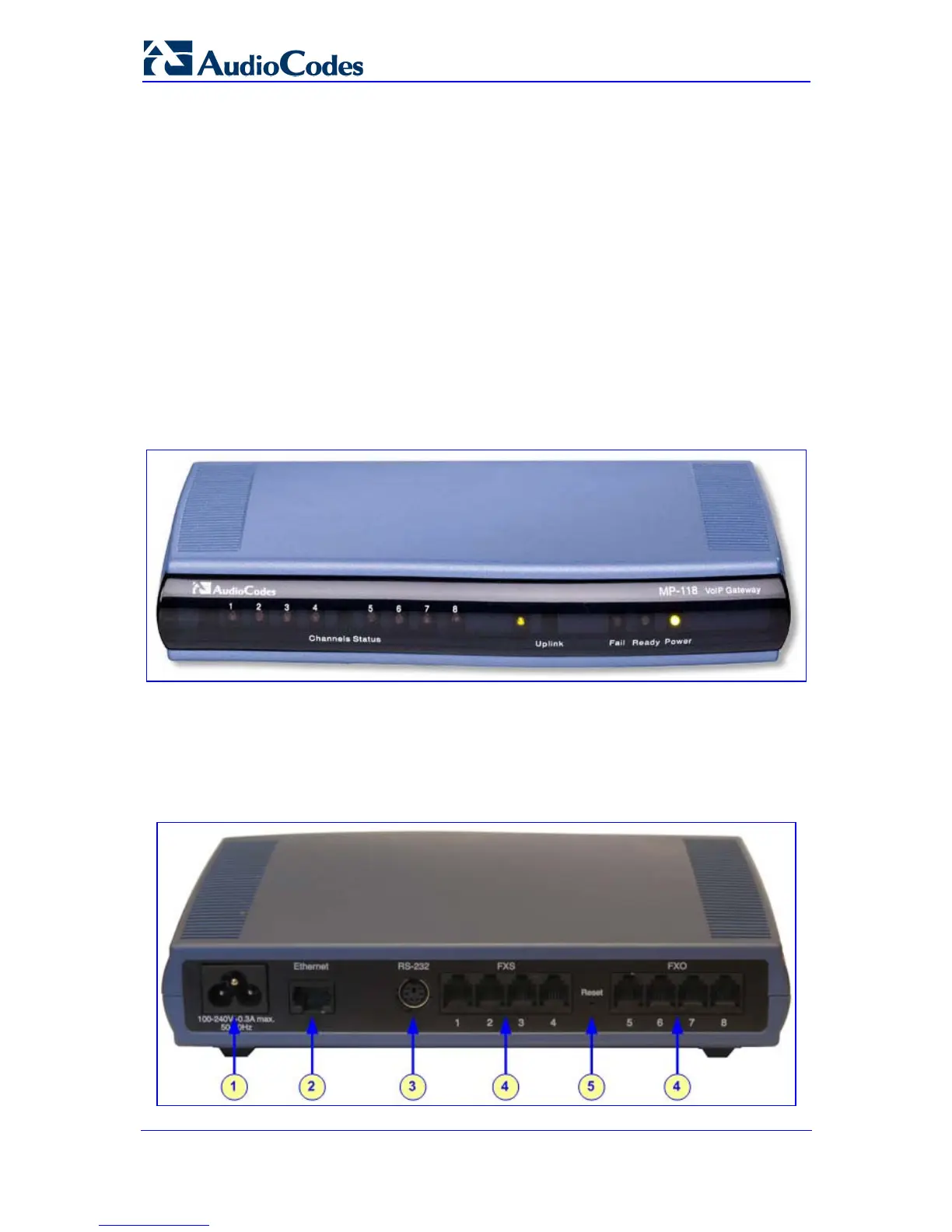

Figure 2-1:
MP-11x (e.g., MP-118) Front Panel
2.1.1.2 MP-11x Rear Panel
The device's rear panel provides the ports for cabling the device to the various interfaces.
The figure below illustrates the rear panel of the MP-118 device, as an example.
Figure 2-2: MP-11x (e.g., MP-118) Rear Panel Connectors

AudioCodes MediaPack MP-114 Specifications

General

Model	MP-114
Category	Gateway
Analog Ports	4 FXS
Network Interfaces	2 x 10/100Base-T Ethernet
Voice Codecs	G.711, G.726, G.723.1, G.729A/B
Fax Support	T.38
Management	Web-based management, CLI, SNMP
Security	SRTP, TLS, HTTPS
Ports	4 RJ-11, 2 RJ-45
Protocols	SIP, H.323
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90%, non-condensing
