AudioControl ACM-1.300 User Manual

Quick Start Guide PN 914-017-0 Rev A
Specications
All specications are measured at 14.4 VDC (standard automotive voltage). As technology advances, AudioControl reserves the right to continuously
change our specications, like our Pacic Northwest weather, although we are working on changing that as well.
The ACM-1.300 Amplier
Power Output (RMS) ............................175 Watts @ 4 Ohms
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300 Watts @ 2 Ohms
Input Voltage (RCA) Range ........................500 mV to 6 V RMS
Speaker-Level Input Voltage Range . . . . . . . . . . . . . . . . . . . 3 V to 40 V RMS
Total Harmonic Distortion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 0.01%
S/N Ratio ..........................102 dBa, Ref 175 Watts @ 4 Ohms
Bass Processing ..........................................AccuBASS®
Recommended Power / Ground Wire Gauge .................8 Gauge
Fuse Rating .............................................1 X 30 Amps
Crossover. . . . . . . . . .12dB/Octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
PFM Subsonic Filter ........................................... 24 Hz
Weight .......................................................1.3 lbs
Dimensions ...............................9.41" W X 2.97" D X 1.75" H
©2017 AudioControl. All rights reserved.
Warranty
For details of the limited warranty for your ACM-1.300, please visit the follow-
ing page on our website: http://www.audiocontrol.com/warranty
Please keep your receipt in a safe place.
AudioControl
22410 70th Avenue West, Mountlake Terrace, WA 98043 USA,
Phone 425-775-8461, FAX 425-778-3166
e-mail: sound.great@audiocontrol.com
Protection Codes

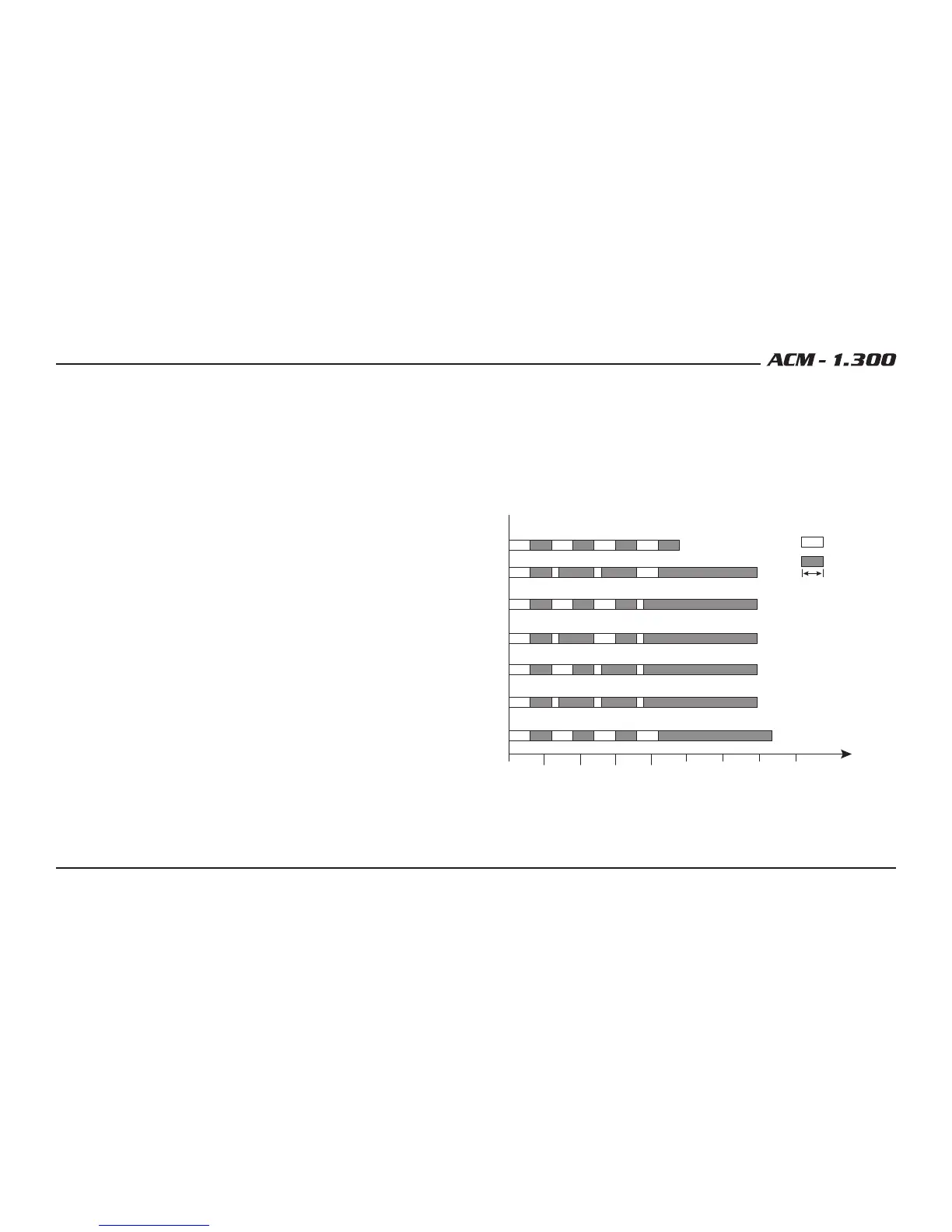

The various codes ashed by the Protection LED will help you diagnose any
problems with your system.
Turn On Delay
KEY
LED ON
LED OFF
300 mS
Short Protec�on
DC Output Protec�on
Transformer Overtemp
Heatsink Overtemp
Overvoltage
Undervoltage
0 0.5 1.0 1.5 2.0 2.5
Time sec
3.0 3.5 4.0
