Installation Manual
4 Channels
These 4 channels give you 230 watts at 8 ohms and over 300 watts at 4 ohms. This
will render your content in fantastic detail, adeptly handling transients like a (insert
humorous analogy here). For example, connect your ATMOS outputs directly to
channel 1 – 4 inputs for a spectacular immersive audio experience.
Crossover 1/2
High-Pass
80 Hz
Crossover 3/4
High-Pass
80 Hz
Switch
STEREO
Switch
STEREO
Connect to
Home Theater
Preamplier/Receiver
Height Speaker
Line-Level outputs
Front
Height
Speakers
Rear
Height
Speakers
Congurations
Congurations
The Avalon G4 is just so wonderfully congurable. It is a 4 channel amplier giving you
unparalleled cool running power that can be set up as a 4 channel, 2.1 channel or 2
channel monoblock amplier. The I/O and back panel controls give you a tremendous
amount of exibility – it’s a grand yoga master of audio, smoothly contorting to adapt
to whatever you need from a full performance high powered supreme amplier.

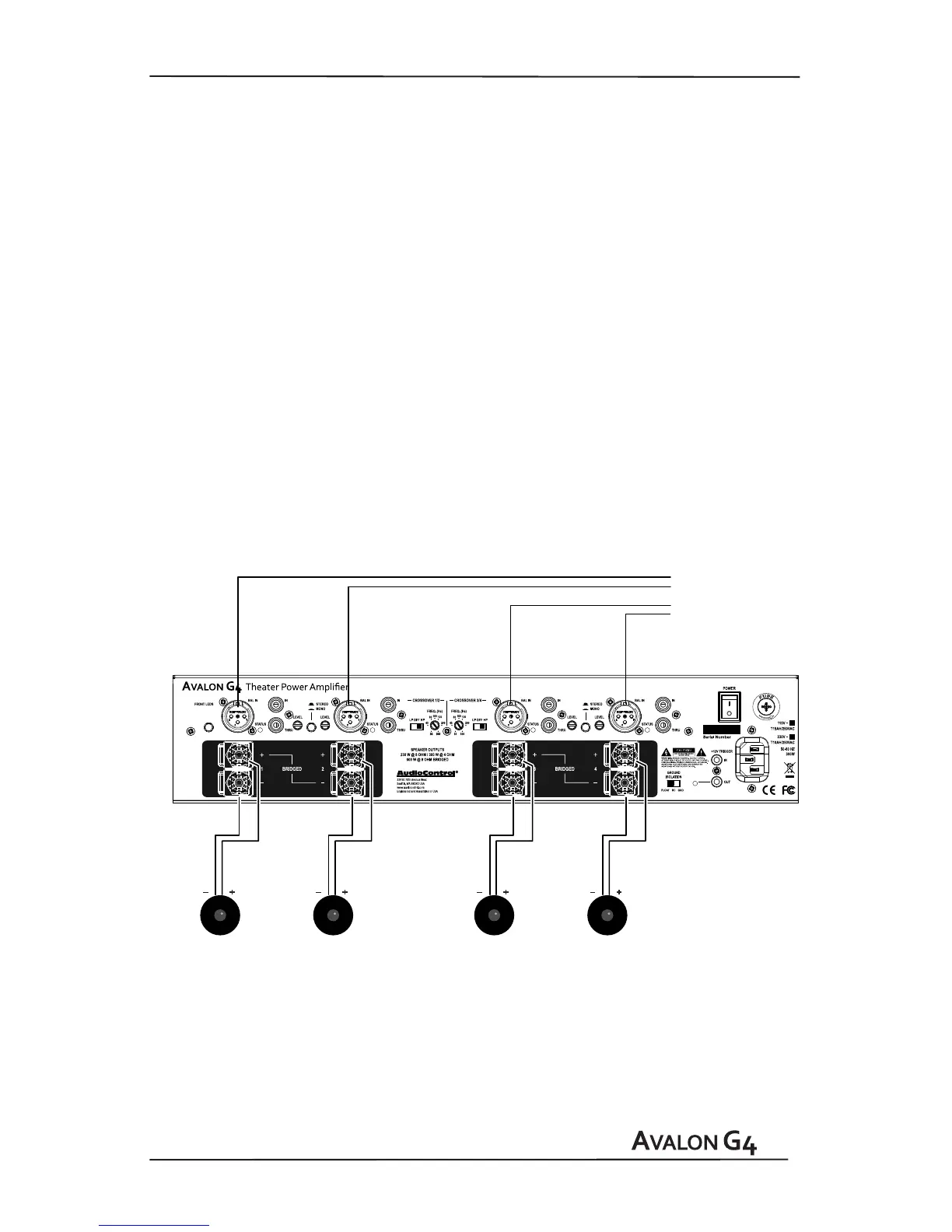

Please take a moment and a nice box of crayons to enjoy the hookup diagram ideas on
the following pages.
