1. Fuses 40A – Replace these fuses only with the exact same style
and Ampere rating. Disconnect 12V power before changing or
inspecting the fuses.
2. Power Input Terminal +12V – This screw terminal connects to
the +12V battery binding post of the vehicle. Use quality insulated
wire, 8 to 3 AWG.
3. Remote Power Input Terminal – This screw terminal connects to
the 12V remote trigger output of some head units. When the head
unit is turned on, then the LC-4.800 will turn on.
4. Power Input Terminal Ground – This screw terminal connects to
a good ground connection on the vehicle. Use quality insulated
wire, gauge 8 to 3 AWG.
5. RCA Analog Line-Level Inputs – The line-level output from the
head unit or factory-installed radios can connect here, so the
LC-4.800 amplier will receive the line-level audio signals. Do not
use these inputs if you are using the speaker-level inputs.
6. RCA Analog Line-Level Outputs – The line-level output can
connect to external ampliers or subwoofer ampliers.
7. Speaker-Level Inputs – The speaker-level output from ampliers
and factory installed radios can connect here. Do not use these
inputs if you are using the RCA line-level inputs.
8. Remote Control Connector – This connects to the ACR-1 remote
level control.
9. Speaker-Level Output Terminals – These screw terminals
connect with speaker wire to your loudspeakers Make sure that
the average combined speaker impedance does not dip below
2 Ohms, or 4 Ohms in bridged mono mode.

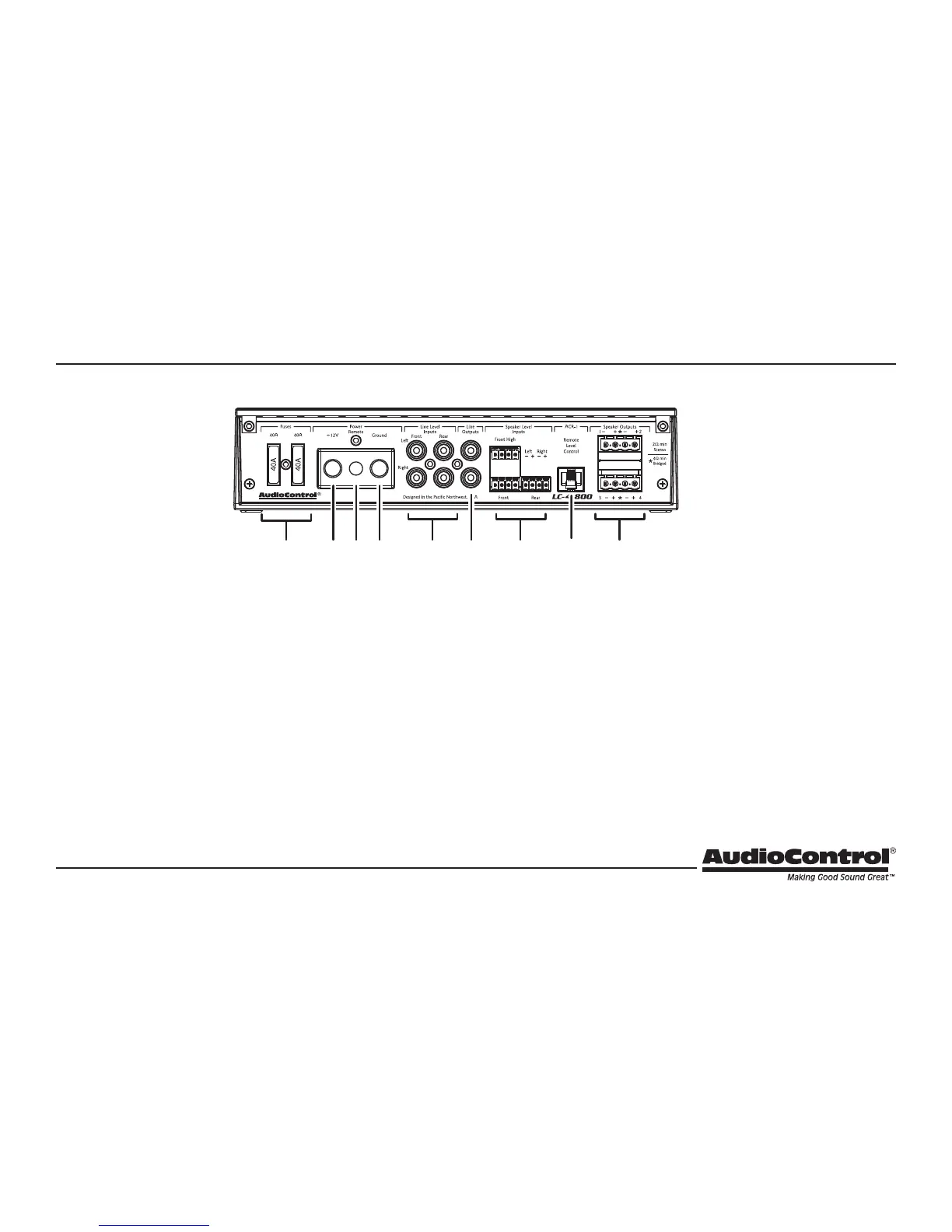

Connection Panel Features
1 2 3 4 5 6
8
97
