8: System Operations
Page 14

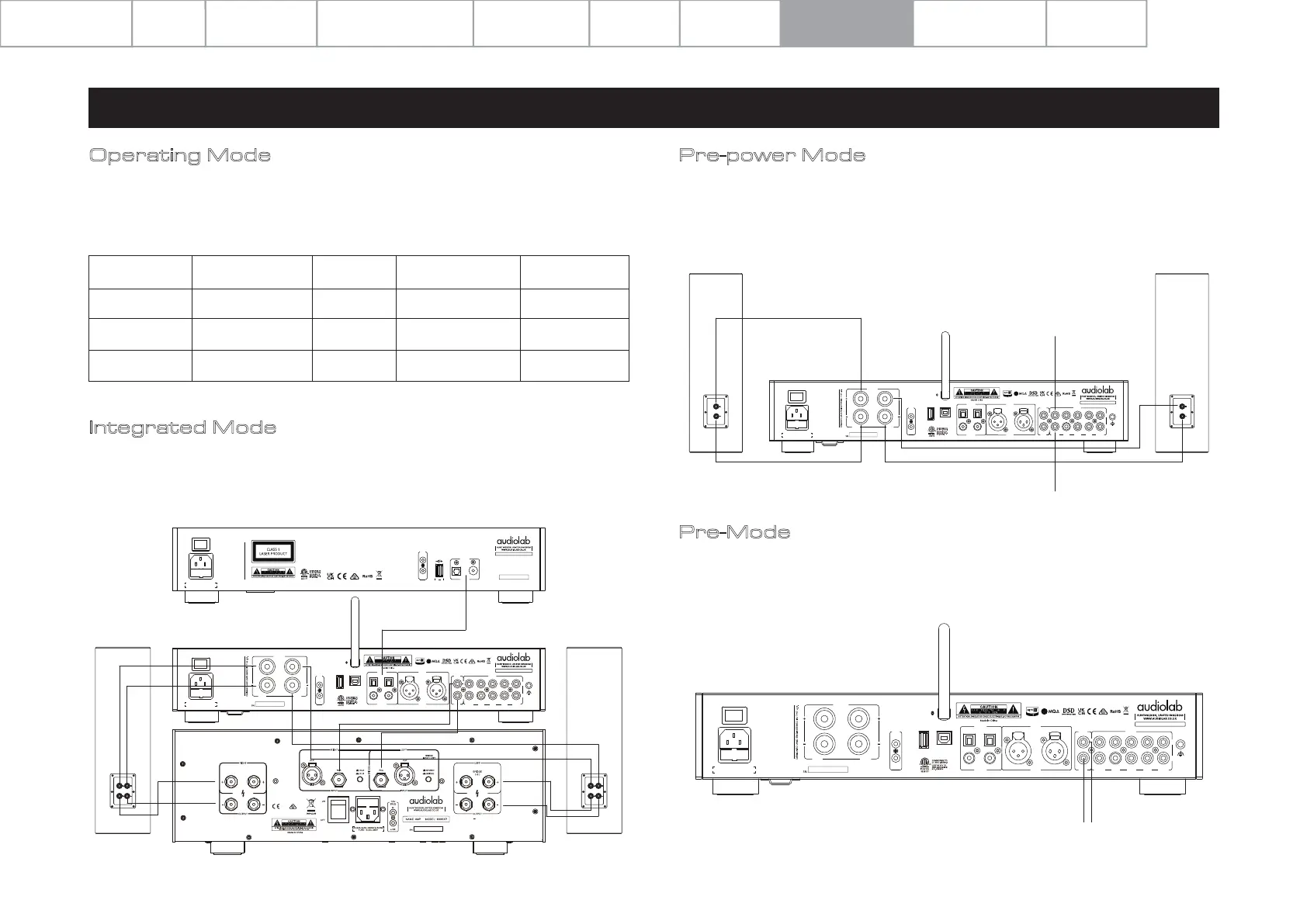

Operating Mode
Although the 9000A is an integrated amplifier it can function as a separate pre and
power amplifier. Rotate the MODE knob on front panel or press the MODE key on
the remote control to select different operating modes.
MODE
Pre
Pre POWER
INTEGRATED
POWER AMP IN
DISABLED
ACTIVE
DISABLED
PRE OUT
ACTIVE
ACTIVE
ACTIVE
HEADPHONE OUT
ACTIVE
ACTIVE
ACTIVE
LOUDSPEAKERS
DISABLED
ACTIVE
ACTIVE
Integrated Mode
The pre-amplifier section is internally connected to the power amplifier,
pre-amplifier output is also operational in this mode. A second power amplifier can
be connected for bi-amplification as shown in the diagram.
Pre-Mode
All signals to and from the power amplifier of the 9000A are disconnected. In this
mode, the 9000A functions as a stand-alone preamplifier. The pre-amplifier section
of the 9000A can be connected to a stereo power amplifier, or two mono-block
amplifiers.
Output to the
external power amplifier
AC 220-240V～50/60Hz 660W
FUSE T3.15AL 250V
ON
OFF
POWER
9000A
INTEGRATED AMPLIFIER MODEL: 9000A
12V
TRIG
IN
OUT
USBUPDATE
INPUT
OPT2OPT1
COAX1 COAX2
DIGITAL
INPUT
XLR
RIGHT LEFT
INPUT
OUT
PRE POWER AUX1 AUX2 AUX3 PHONO
L
R
OUTPUT
RIGHT LEFT
CLASS 2 WIRING
Pre-power Mode
The preamplifier section is internally disconnected from the power amplifier. The
9000A can be used as a stand-alone power amplifier (ie. part of an AV setup). This
mode can also be used if additional signal processing is required, connecting the
pre-out to an external signal processor and then taking the output from the
processor to the 9000A Power-IN.
Input
Power
AC 220-240V～50/60Hz 660W
FUSE T3.15AL 250V
ON
OFF
POWER
9000A
INTEGRATED AMPLIFIER MODEL: 9000A
12V
TRIG
IN
OUT
USBUPDATE
INPUT
OPT2
OPT1
COAX1 COAX2
DIGITAL
INPUT
XLR
RIGHT LEFT
INPUT
OUT
PRE POWER AUX1 AUX2 AUX3 PHONO
L
R
OUTPUT
RIGHT LEFT
CLASS 2 WIRING
AC 220-240V～50/60Hz 660W
FUSE T3.15AL 250V
ON
OFF
POWER
9000A
INTEGRATED AMPLIFIER MODEL: 9000A
12V
TRIG
IN
OUT
USBUPDATE
INPUT
OPT2OPT1
COAX1 COAX2
DIGITAL
INPUT
XLR
RIGHT LEFT
INPUT
OUT
PRE POWER AUX1 AUX2 AUX3 PHONO
L
R
OUTPUT
RIGHT LEFT
CLASS 2 WIRING
CD Transport MODEL:9000CDT
AC 220-240V～50/60Hz 22W
FUSE T630mAL 250V
POWER
ON
OFF
9000CDT
Made in China
DESI GNED AND ENGINEERED IN THE U.K.
12V
TRIG
IN
LINK
5V
1A
DIGITAL
OUTPUT
OPT
COAX
SN:
