CONTROLS AND INDICATORS
1. ON/OFF SWITCH
Slide the switch to ON position to turn on the
player. Slide the switch to OFF position to
switch off the player.
2. SPEAKER OUTPUT
3. DISPLAY SCREEN
4. PLAY/PAUSE (
) BUTTON
Press once to pause playback, then press
again to continue playback.
5. STOP ( ) BUTTON
Press to stop playback.
6. RED LED CHARGE INDICATOR
Flashes when the battery is charging.
Steadily lit when the battery is charged.
7. INFRARED REMOTE SENSOR
Detects signals from the remote control.
8. GREEN LED ON/OFF INDICATOR
Steadily lit when the player is on.
9. MENU BUTTON
Press to return to the root menu when playing
a DVD.
10. VOL- BUTTON
Press to decrease the volume.
11. VOL+ BUTTON
Press to increase the volume.
12. OPEN
Pull up to open the disc tray cover.
13. DC IN 9-12V JACK
14. DC OUT JACK
Connect the power cord to the DC OUT jack
on the Main Unit and to the DC IN jack on the
Satellite Unit.
15. AV OUT JACK
Connect the AV Cable to the AV OUT jack on
the Main Unit and to the AV IN jack on the
Satellite Unit.
16. 3.5 mm HEADPHONE JACK
Note: When headphones are connected, no
sound will be emitted from the speakers.

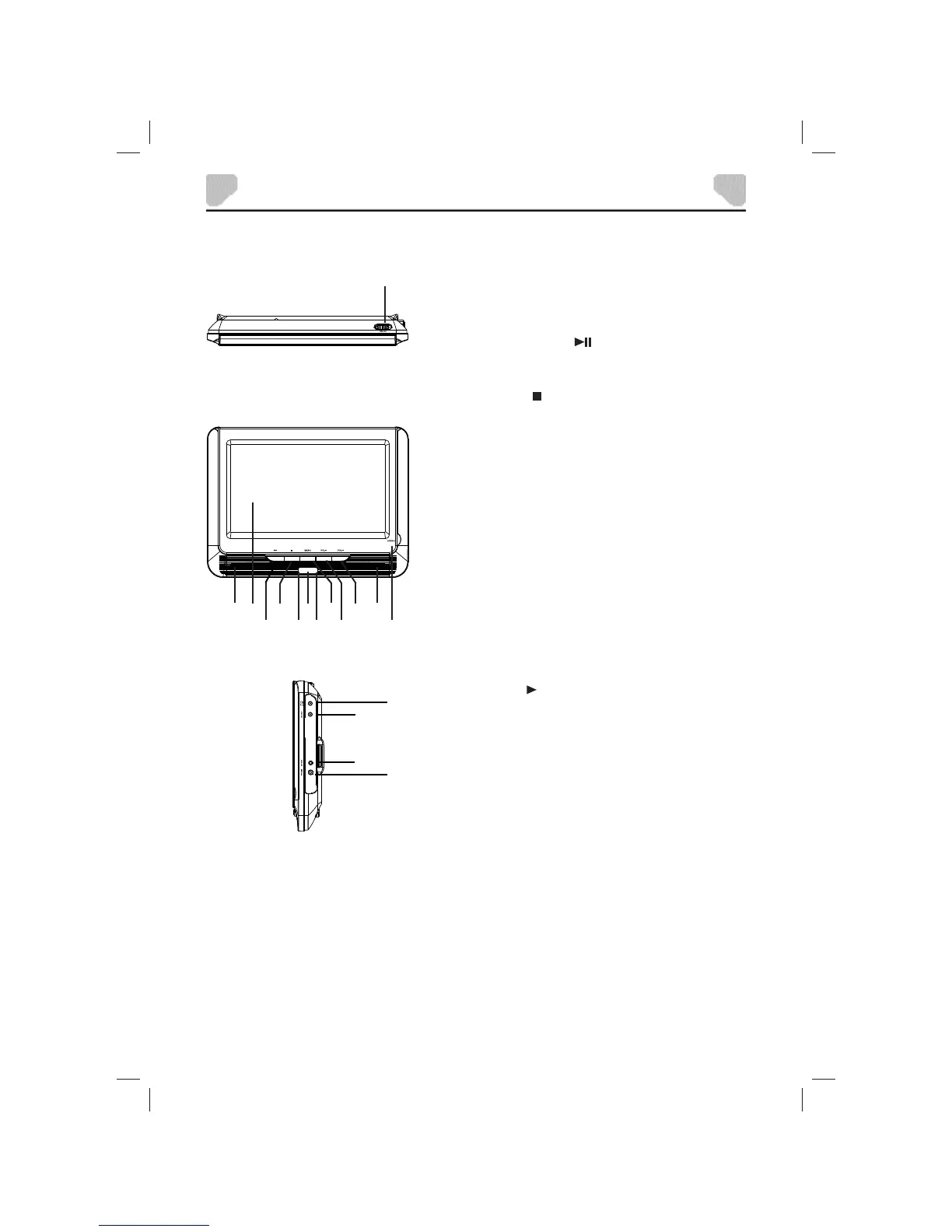

Main Unit
1
32
2
6
4
7
8
12
13
15
14
16
5
10
9
11
