alpha Configuration Suite User Manual
Page 10 of 33
21003-1.2

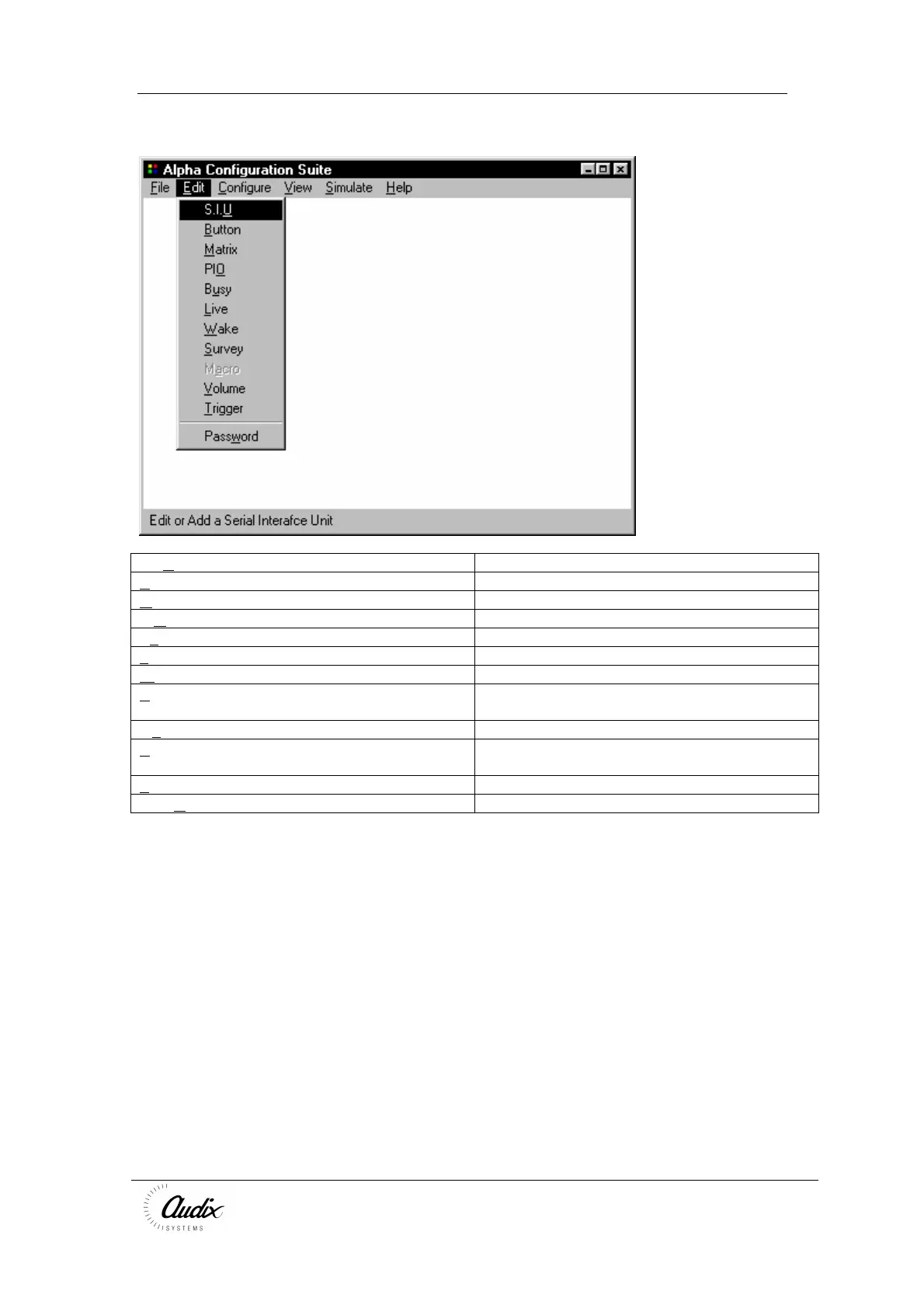

Edit Menu
S.I.U Add or Edit A Serial Interface Unit
Button Edit a Button on an SIU
Matrix Configure Inputs and Outputs to the Matrix
PIO Configure Parallel I/O
Busy Configure Busy Outputs
Live Configure Live Outputs
Wake Configure Wake up Signaling to amplifiers
Survey Set up 20kHz Critical path testing signal
sources.
Macro Not yet implemented
Volume (now in Configure Menu “Input Level”) Volume and EQ settings for each input to the
matrix
Trigger (now in Configure Menu) Configure SIU buttons to trigger an I/O line
Password Configure User Passwords
