Audix alpha - Example 2

alpha Configuration Suite User Manual
Page 23 of 33
21003-1.2
Example 2

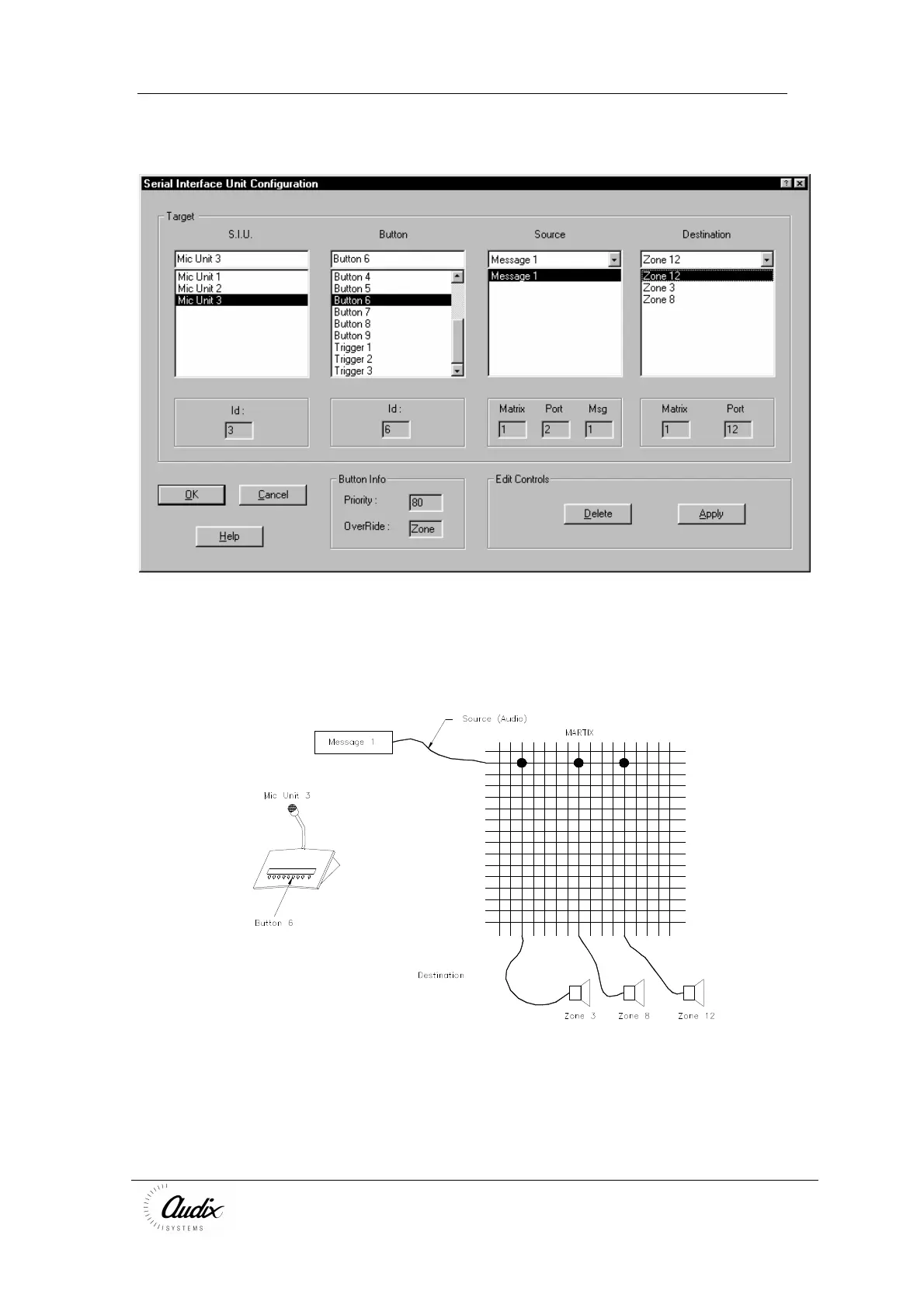

This example shows the Routing of a message as the audio source to multiple destinations
dependant upon a button selection on a specific SIU. Shown below is how the above
configuration would work in practice
