alpha Configuration Suite User Manual
Page 22 of 33
21003-1.2
Configure SIU
Example 1

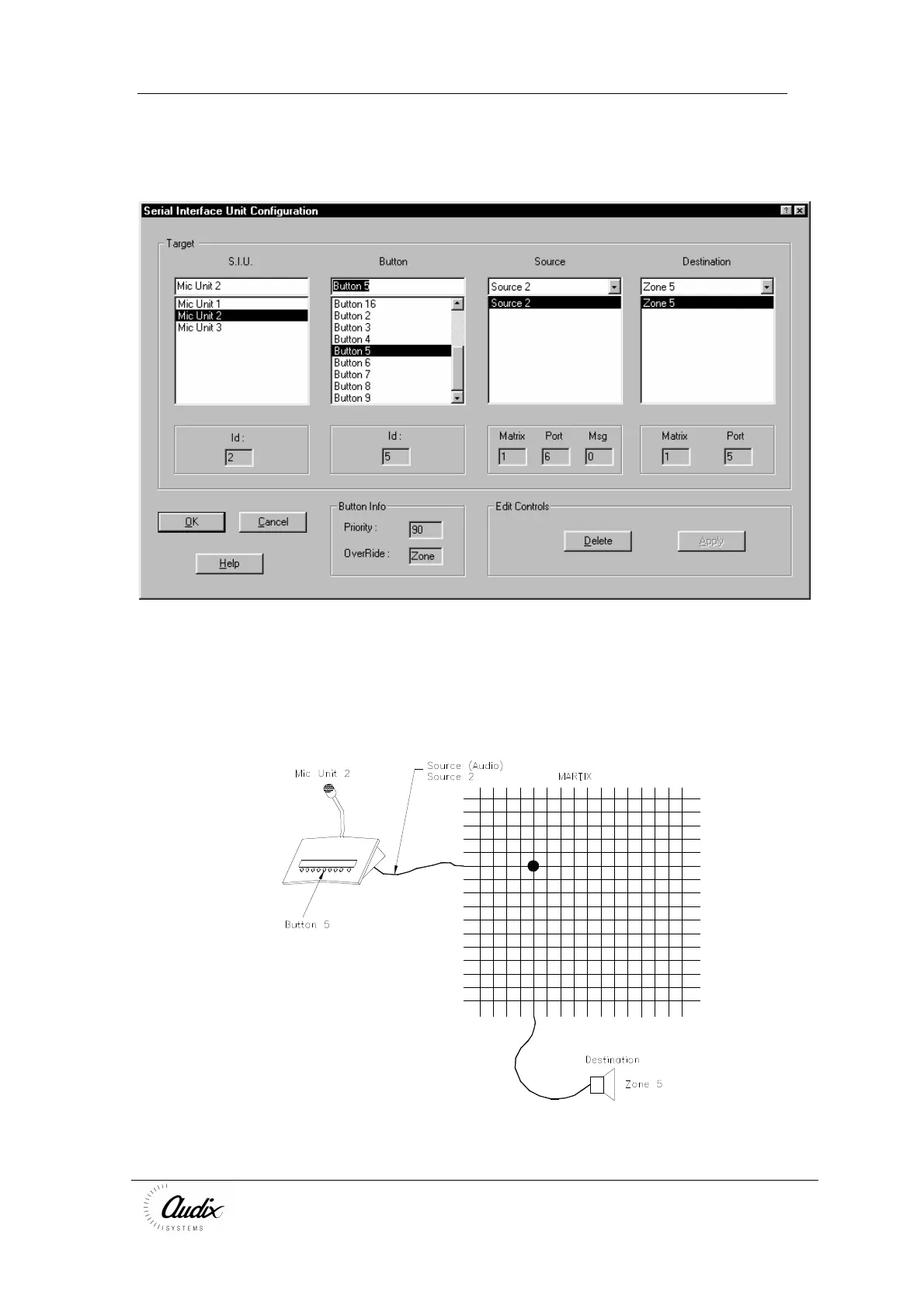

This example shows the Routing of a microphone Audio Source to its Destination, dependant
upon a button selection on a specific SIU. Shown below is how the above configuration
would work in practice.
