6. Design AUMATIC Profibus DP
With the AUMATIC Profibus DP, AUMA provides the ideal controls for the
connection of multi-turn actuators of the type range SA and part-turn actua
-
tors of the type range SG to Profibus DP.
The integral controls AUMATIC Profibus DP consist of the following
modules:
.
Profibus DP interface. This links the Profibus DP data with the internal
electronics.
.
The logic board links the signals of the actuator with the local controls and
the Profibus DP interface and controls the reversing contactors or the
thyristors.
.
Local controls with selector switch and push-buttons, indication lights and
display. With the selector switch the control stations for local control
LOCAL – 0 – REMOTE for remote control are selected. The
push-buttons (OPEN) – Stop – (CLOSE) are used for the
electric operation of the actuator on site.
.
Plug/ socket connectors for easy mounting of the AUMATIC Profibus DP
on the actuators.
.
Motor controls: Reversing contactors or thyristors for motor controls.
.
Profibus DP connection board with terminals for the Profibus DP cable
and the termination resistor for the bus termination.
Actuators which have already been installed can be retrofitted for Profibus
DP by exchanging controls AUMATIC for controls AUMATIC Profibus DP.
Actuator controls AUMATIC AC 01.1 / ACExC 01.1
Operation instructions Profibus DP
11

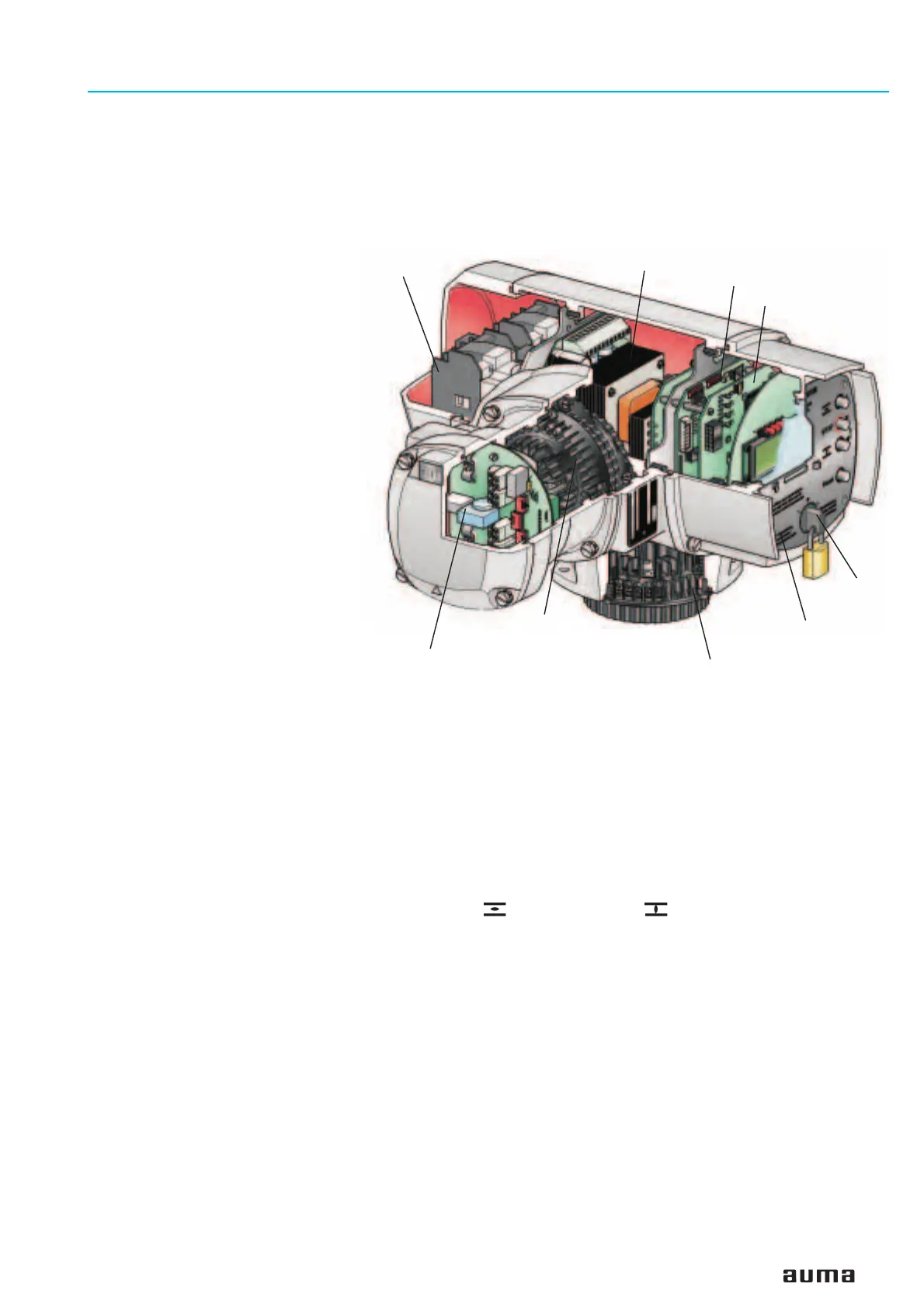

Figure A: AUMATIC Profibus DP
Motor controls
(switchgear)
Power supply unit
Logic board
Profibus DP
interface
Profibus DP
connection board
Electrical connection
with AUMA plug/ socket connector
Plug/ socket connector
to the actuator
Local controls
with display
Selector switch
