AUMA SQEx 12.2 - Output Drive for Coupling; 4.3.1.1. Part-Turn Actuator (with Coupling): Mount to Valve

4.3.1. Output drive for coupling
Design Figure 10: Valve attachment via coupling
[1] Actuator worm wheel with internal splines
[2] Splined plug-in coupling
[3] Valve shaft (example with key)
Application
●
For valve attachments according to EN ISO 5211
●
For rotating, non-rising valve stem
4.3.1.1. Part-turn actuator (with coupling): mount to valve
Unbored couplings or couplings with pilot bore must be machined to match the valve
shaft prior to mounting the part-turn actuator to the valve (e.g. with bore and keyway,
two-flat or square bore).
Information Assemble valve and part-turn actuator in the same end position. As standard, the
part-turn actuator is supplied in end position CLOSED.
●
Recommended mounting position for butterfly valves: End position CLOSED.
●
Recommended mounting position for ball valves: End position OPEN.
Assembly steps

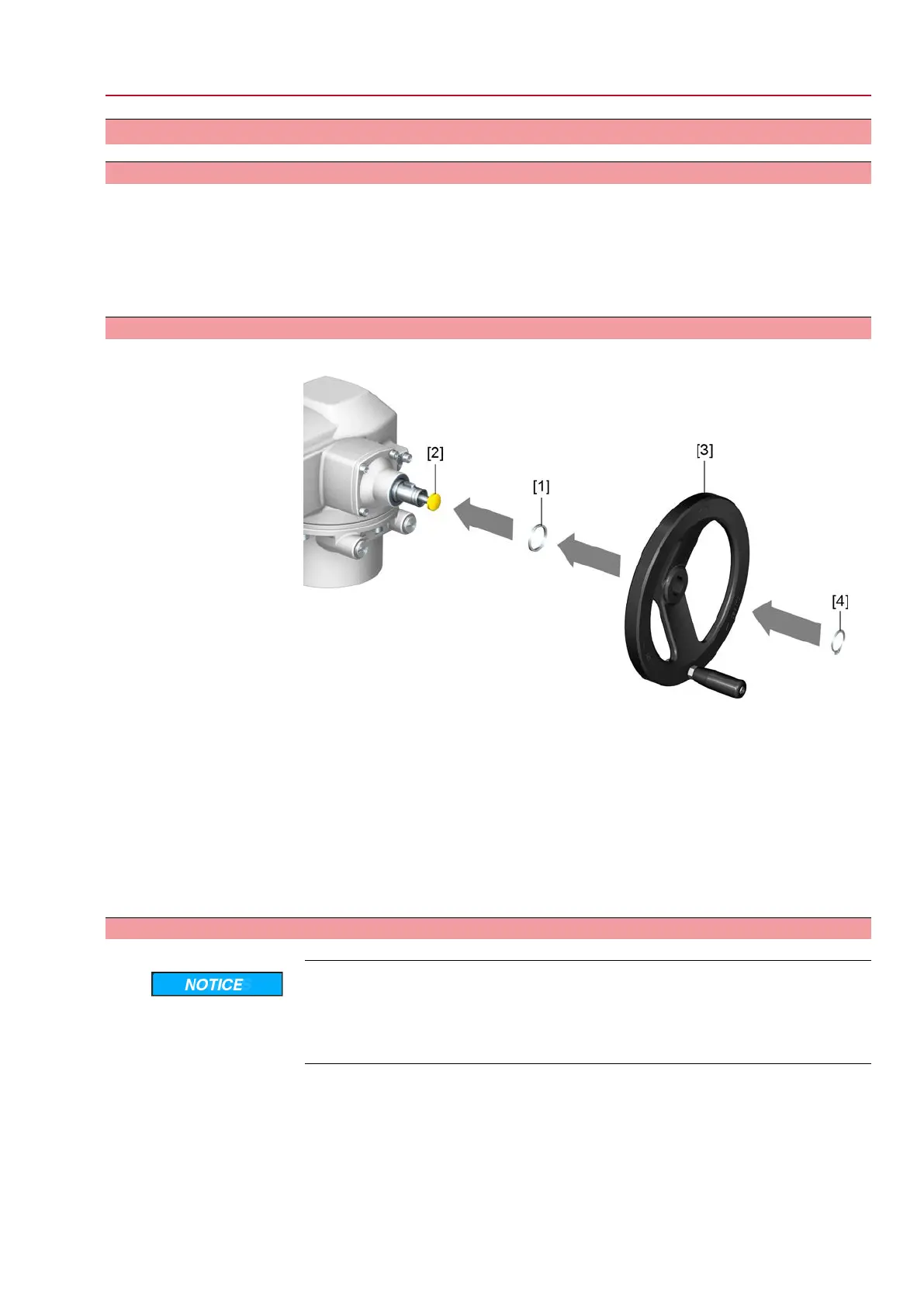

1. If required, move part-turn actuator in same end position as valve using the
handwheel.
2. Clean mounting faces, thoroughly degrease uncoated mounting surfaces.
3. Apply a small quantity of grease to the valve shaft [2].
17
