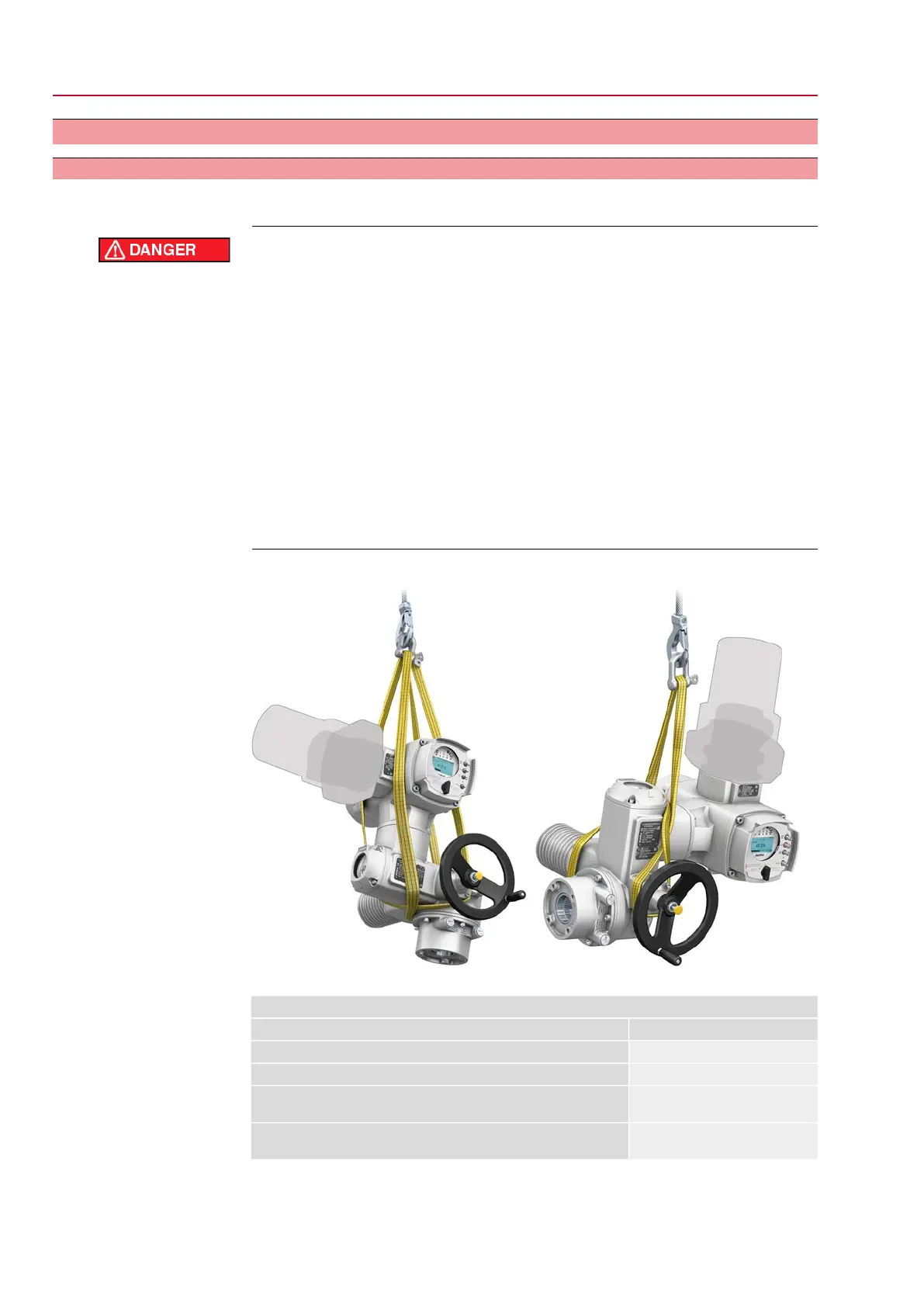

AUMA SQEx 12.2 - Storage

Table 5:
Weights for part-turn actuators SQEx 05.2 – SQEx 14.2 / SQREx 05.2 – SQREx 14.2
with 3-phase AC motors
Weight with base and lever
2)
Weight
1)
Type designation
Actuator
approx. [kg]approx. [kg]
3429SQEx 05.2/
SQREx 05.2
3429SQEx 07.2/
SQREx 07.2
3834SQEx 10.2/
SQREx 10.2
5042SQEx 12.2/
SQREx 12.2
6251SQEx 14.2/
SQREx 14.2
Indicated weight includes AUMA NORM part-turn actuator with 3-phase AC motor, electrical con-
nection in standard version, unbored coupling and handwheel. For other output drive types, heed
additional weights.
1)
lndicated weight includes AUMA NORM part-turn actuator with 3-phase AC motor, electrical connec-
tion in standard version, and handwheel, including base and lever. For other output drive types,
heed additional weights.
2)
Table 6:
Weights for part-turn actuators SQEx 05.2 – SQEx 14.2 / SQREx 05.2 – SQREx 14.2
with 1-phase AC motors
Weight with base and lever
2)
Weight
1)
Type designation
Actuator
approx. [kg]approx. [kg]
3933SQEx 05.2/
SQREx 05.2
3933SQEx 07.2/
SQREx 07.2
4339SQEx 10.2/
SQREx 10.2
5547SQEx 12.2/
SQREx 12.2
6756SQEx 14.2/
SQREx 14.2
Indicated weight includes AUMA NORM part-turn actuator with 1-phase AC motor, electrical con-
nection in standard version, unbored coupling and handwheel. For other output drive types, heed
additional weights.
1)
Indicated weight includes AUMA NORM part-turn actuator with 1-phase AC motor, electrical con-
nection in standard version, and handwheel, including base and lever. For other output drive types,
heed additional weights.
2)
3.2. Storage
Danger of corrosion due to inappropriate storage!
→
Store in a well-ventilated, dry room.
→
Protect against floor dampness by storage on a shelf or on a wooden pallet.
→
Cover to protect against dust and dirt.
→
Apply suitable corrosion protection agent to uncoated surfaces.
Damage on display caused by temperatures below permissible level!
→
AC actuator controls MUST NOT be stored below –30 °C.
Long-term storage
For long-term storage (more than 6 months), observe the following points:
14
SQEx 05.2 – SQEx 14.2 / SQREx 05.2 – SQREx 14.2 Control unit: electronic (MWG)
Transport, storage and packaging ACExC 01.2 Non-Intrusive Modbus TCP/IP
