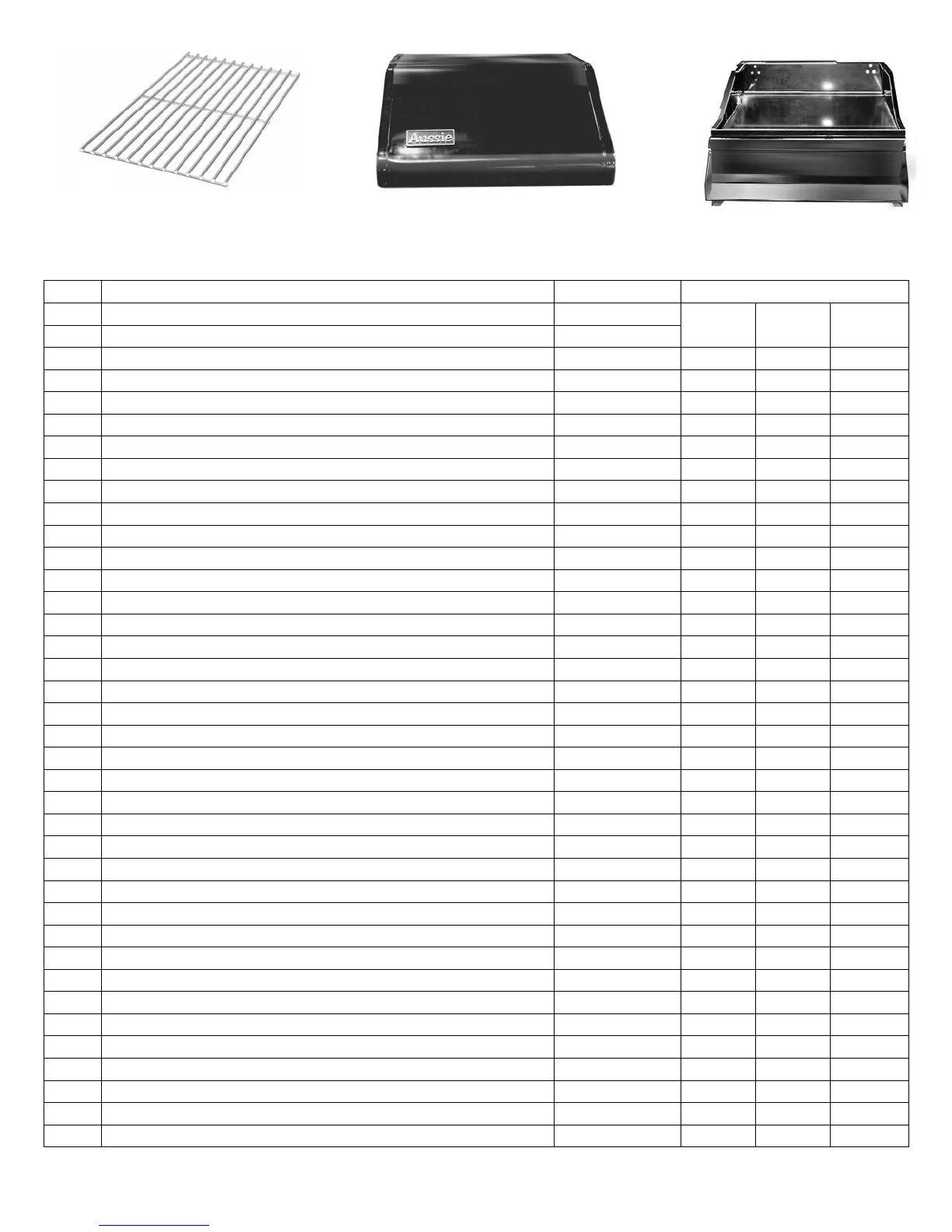

PARTS LIST
ITEM DESCRIPTION PART #
1 Owner's Manual 03.6077.01 1 1 1
2 Side Table (Metal Insert) 03.6495.00 -- 2 2
2A Side Table (Metal Insert ) 03.6597.00 -- -- 2
2B Side Table (All Wood) 03.5845.00 2 -- --
3 Fixed Leg (Metal) 03.6496.00 -- 2 2
3A Fixed Leg (Wood) 03.6066.00 2 -- --
4 Wheel Leg (Metal) 03.6497.00 -- 2 2
4A Wheel Leg (Wood) 03.6065.00 2 -- --
5 Bolt, 1/4-20 x 1 3/8" 03.6498.00 -- 24 24
5A Bolt, 1/4-20 x 1 " 03.4062.00 24 -- --
6 Bottom Shelf (Model 7652K5) 03.6499.00 -- 1 --
6A Bottom Shelf (Model 7652K6) 03.6598.00 -- -- 1
6B Bottom Shelf (Model 7652K1) 03.6067.00 1 -- --
7 Axle (Assembled with Item 10 Axle Nut) 03.5014.00 1 1 1
8 Steel Washer, (Axle) 03.4072.00 2 2 2
9 Wheel 03.5003.00 2 2 2
10 Axle Nut (Assembled on Item 7 Axle) 03.4073.00 2 2 2
11 Body Assembly (See 25, 25A & 26 for Replacement) -- 1 1 1
12 Slide Vent 03.6072.00 2 2 2
13 Bolt, 6mm x 16mm 03.6070.00 8 8 8
14 Washer, 6mm 03.6501.00 18 18 18
15 Spacer, Sleeve 03.6071.00 8 8 8
16 Locknut, 6mm 03.4070.00 10 10 10
17 Bolt, 6mm x 90mm 03.6020.00 2 10 10
17A Bolt, 6mm x 110mm 03.4066.00 8 -- --
18 Handle, Hood (Models 7652K1 & 7652K5) 03.6036.00 1 1 --
18A Handle, Hood (Model 7652K6) 03.6599.00 -- -- 1
19 Spacer, Handle 03.6023.00 2 2 2
20 Spacer, Body 03.4074.00 8 8 8
21 Wing Nut, M6 03.6003.00 8 8 8
22 Drip Pan 03.6069.00 1 1 1
23 Charcoal Grate 03.6074.00 1 1 1
24 Cooking Grid 03.6075.00 2 2 2
25 Hood (Embossed Logo) 03.6502.00 1 -- --
25A Hood (Decal Logo) 03.6503.00 -- 1 1
26 Body 03.6068.00 1 1 1
