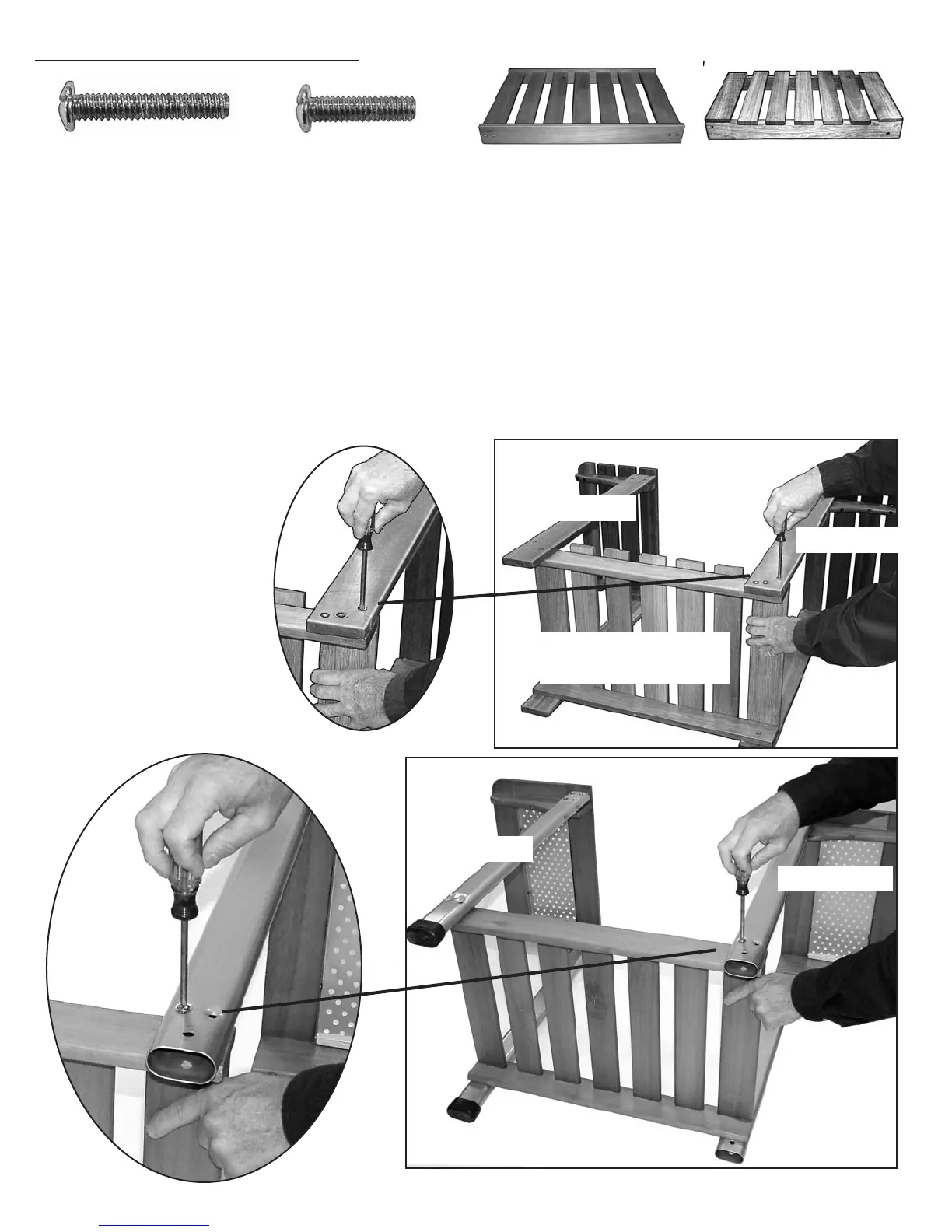

STEP 2- Bottom Shelf/Leg Assembly
(ITEM 5)
1/4-20 x 1 3/8” Bolt
(ITEM 6 or 6A)
Bottom Shelf
6
· Place both Leg/Side Table Assemblies opposite each other as shown with Bottom Shelf
between them.
· Align Bottom Shelf holes with holes of Wheel Legs and attach with four 1/4-20 Bolts (Item 5 or
5A). Do not tighten Bolts completely.
· Secure Fixed Legs to Bottom Shelf with 1/4 -20 Bolts. Go ahead and tighten Wheel Leg bolts
securely. (This will not be possible after the Wheel is assembled.)
Fixed Legs
Wheel Legs
(ITEM 5A)
1/4-20 x 1” Bolt
Fixed Legs
Wheel Legs
All Wood Bottom
Shelf/ Leg Assembly
(ITEM 6B)
Bottom Shelf
