Austroflamm Clou - Electrical wiring diagram; Wiring for rotating feeder motor models

English 23

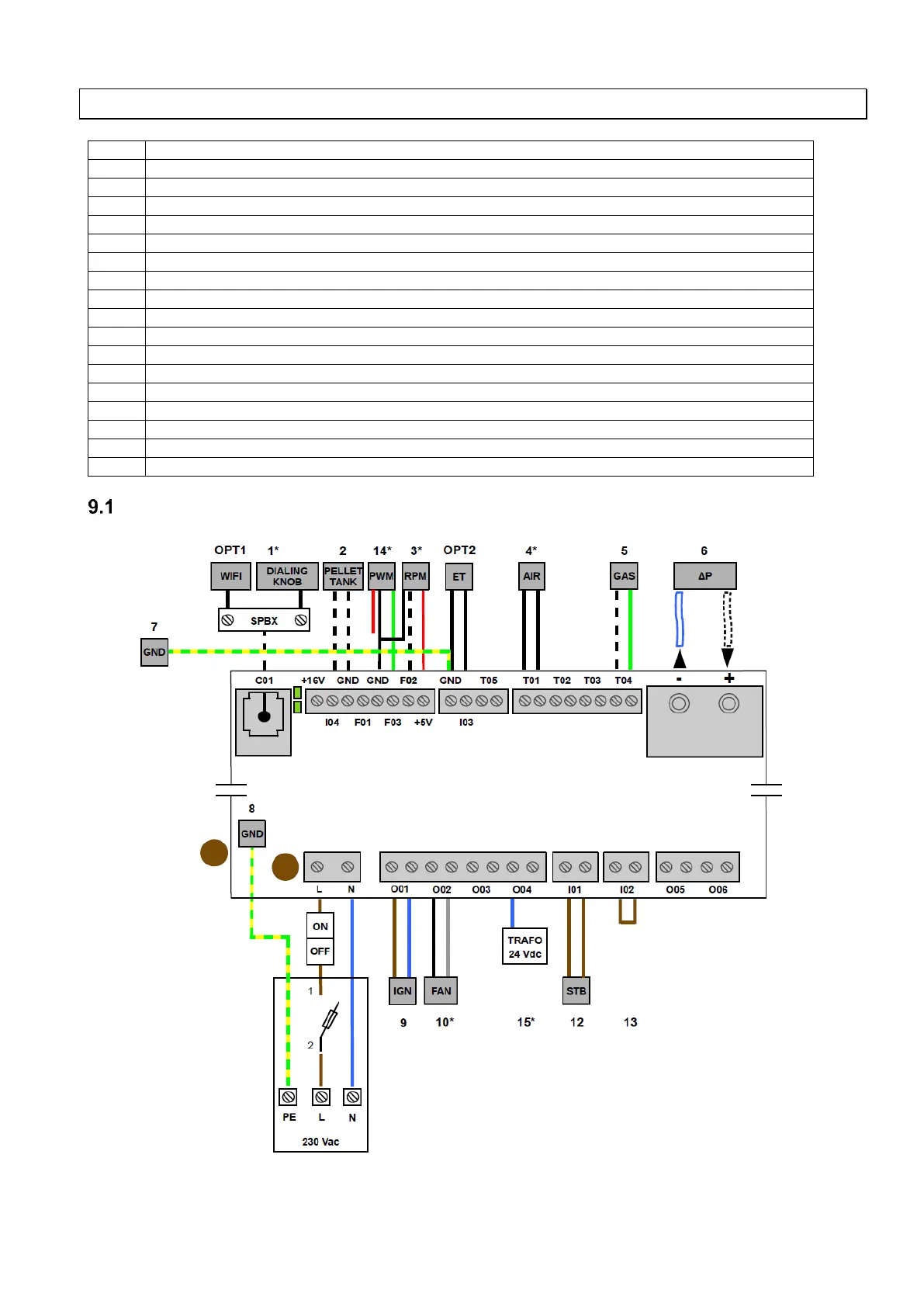

9 Electrical Wiring Diagram
Models with a permanently rotating feeder motor
1
Dialing knob
2
Pellet hopper lid switch
3
RPM / HAL-IC
4
Room temperature sensor
5
Firebox temperature sensor
6
Differential pressure measurement
7
Central grounding
8
Controller grounding
9
Ceramic ignition
10
Combustion fan
11
Feeder motor
12
Safety temperature limiter
13
Jumper wire
14
PWM to DC converter
15
24 V transformer
OPT1
optional WLAN-BOX
OPT2
External thermostat
*
Detail of electrical wiring diagram
