Austroflamm Integra II - Detailed Parts Descriptions (Figs. 2-4)

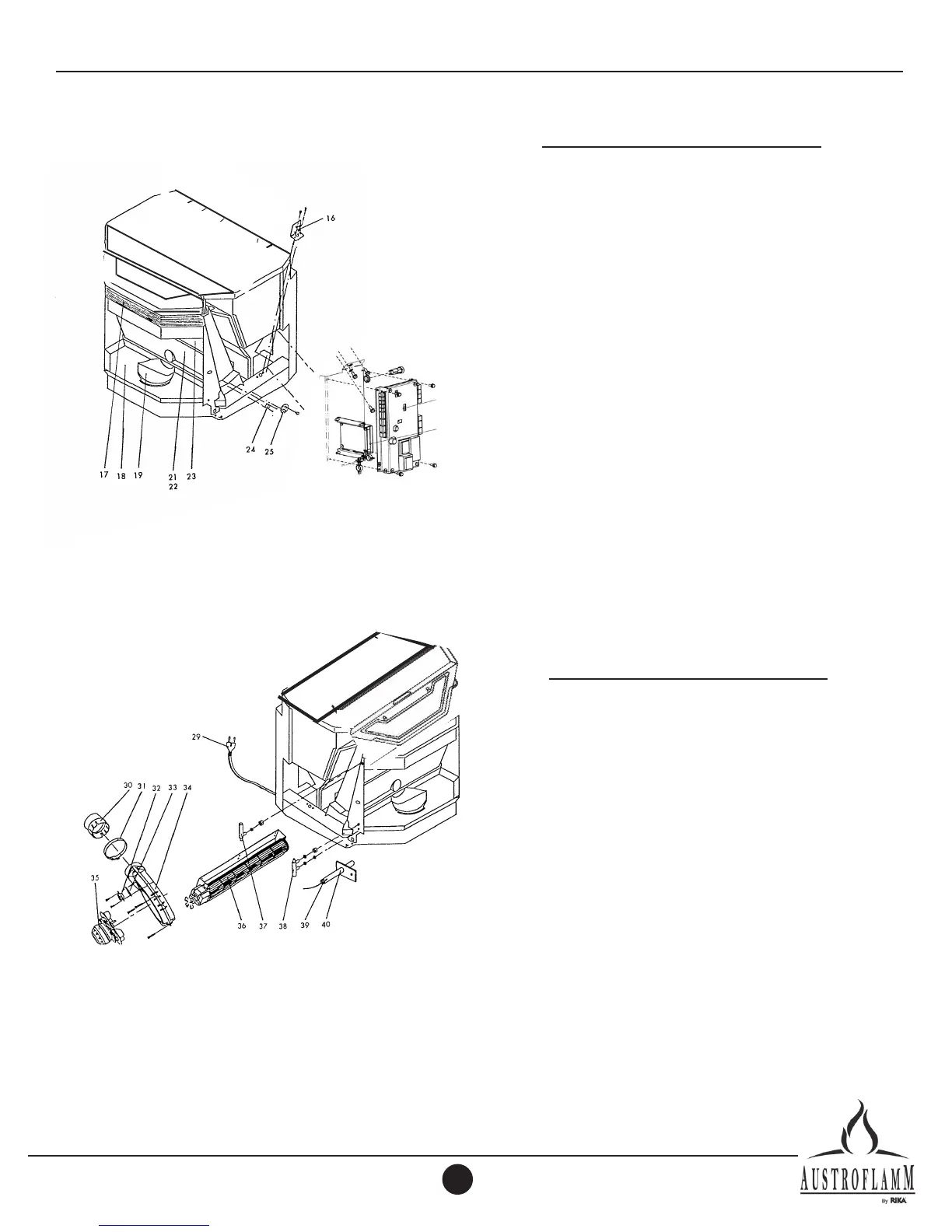

Parts Illustration
3
Fig. 3
Fig. 4
27
28
Parts Descriptions (13-28):
Fiqure 3
15. Hopper Cover
16. Air Sensor
17. Top Grill
18. Ash Pan
19. Burn Pot
21. Lower Cast Wall
22. Lower Cast Wall Gasket
23. Upper Cast Wall
24. High Limit switch
25. Adjustable Door Latch
27. Main Circuit Board
28. Tele-Control (Europe Only)
Parts Descriptions (29-40):
Fiqure 4
29. Power Cord
30. Flue Adapter
31. Connecting Band
32. Low Limit Switch
33. Low Limit Gasket
34. Combustion Motor Housing
35. Combustion Motor
36. Covection Fan
37. Upper Door Hinge
38. Lower Door Hinge
39. Ignitor Element
40. Ignitor Bracket
