The fire must only be started when fully fitted.
Your pellet furnace is exclusively for burning
pellets made from wood of a controlled quality.
Non-pelletised solid fuels (straw, maize, chop-
ped matter etc.) are not permitted. Failure to
adhere to these guidelines will make all gua-
rantee and warranty claims null and void and
could have a negative effect on the safety of
your fire.
When run correctly your pellet furnace cannot
overheat. Improper operation can however shor-
ten the life expectancy of the electric furnace
components (fan, motors and electric control)
and is not permitted.
CONTROL AND INTERNAL CONTROL
UNIT - FUNCTION
(Fig. 5, Part 45)
BASIC INFORMATION
Your pellet furnace is fitted with a modern
programmable microprocessor control.
The user can preset the individual equip-
ment functions via the internal control unit
(keypad with operating display) fitted on
the right hand rear wall.
The control (main board) and the control
board may only be altered by trained speci-
alist dealers or the service department.
Improper handling of these parts leads to
the guarantee and warranty becoming null
and void.
„MENU“ key
„MINUS“ key
„ON/OFF“ key
Display box
„ENTER“ key
„PLUS“ key
Internal control unit
All settings and functions can be regulated
via this unit.

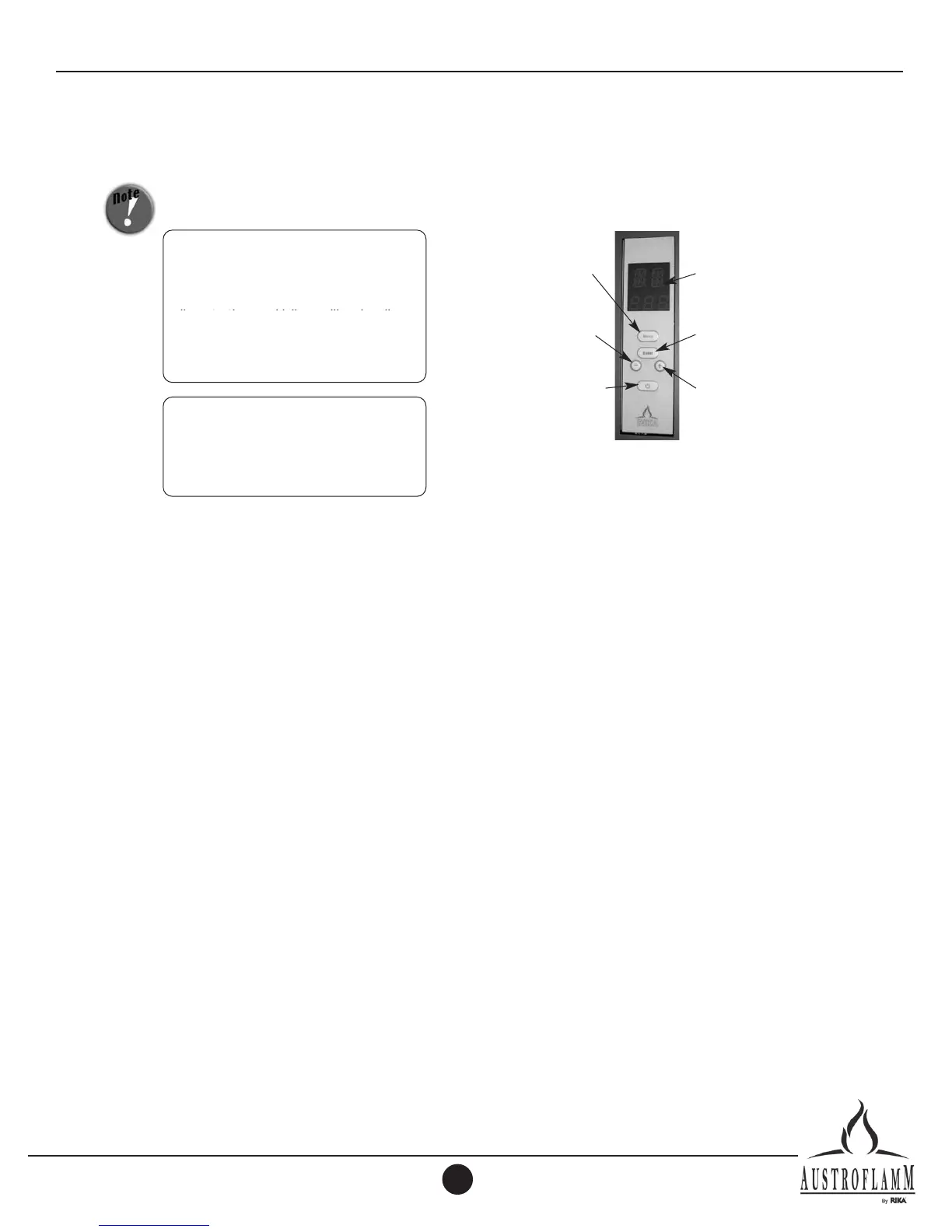

Fig. 1 Internal control unit, key assignment
DISPLAY BOX:
Displays the operating modes in illuminated
letters.
MENU:
Navigation in and to the different sub-
menu levels.
ENTER:
Navigation in the main menus (SB; ON; TM)
and confirming user entries.
MINUS/PLUS:
Lowering or increasing user values.
ON/OFF:
Switching the fire on or off.
See the
APPENDIX
page 26 for a graphic
display of the menu driven operation.
