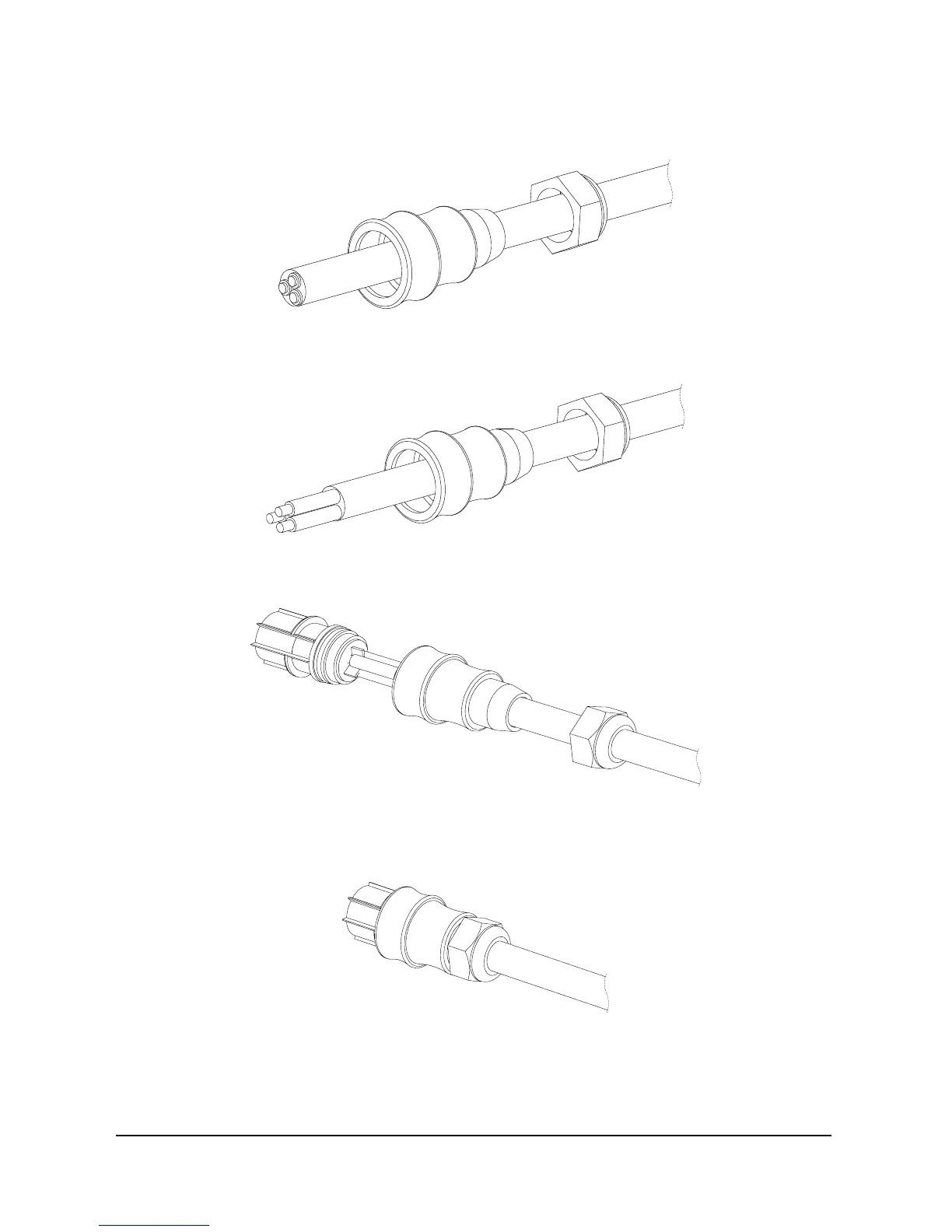

Step 1 — Slide the cable gland cap, cable gland body and adapter to the cable.
Step 2 — Strip outer jacket 60mm and strip each cable insulation about 12±1mm.
Step 3 — Insert cable strands into connector socket, and lock the screws. Make sure to fit the ground wire
into the PE hole.
Step 4 — Fit the connector, cable gland body and cable gland cap to the connector as per below.
