8

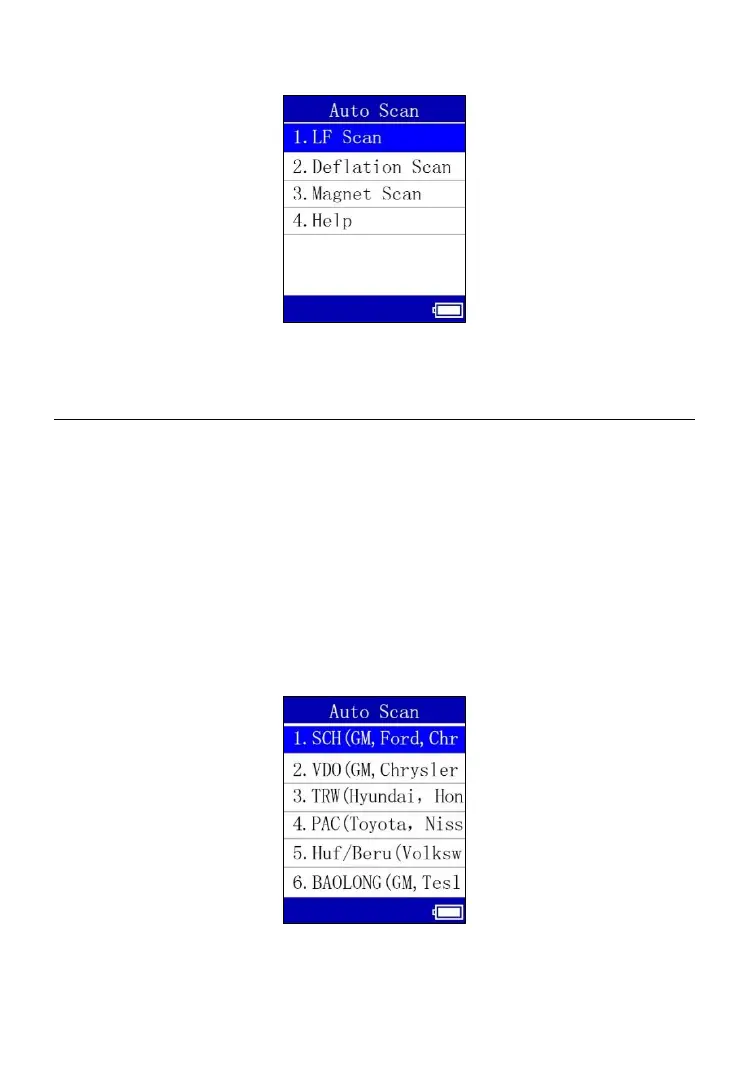

Figure 4.2
4.1 LF Scan
In this function, the tool will send out low frequency (LF) signal to active the
TPMS sensors.
4.1.1 Select sensor’s manufacturer
From the Auto Scan screen, select the manufacturer name or brand of the
original sensor by using the UP and DOWN Arrow buttons. The name of
vehicle manufacturers using these sensors are listed within parenthesis. For
example, GM, Ford, Chrysler and Mercedes often use Schrader (SCH)
sensors.
Figure 4.3
