Autel MaxiTPMS TS201 - Testing Results

15

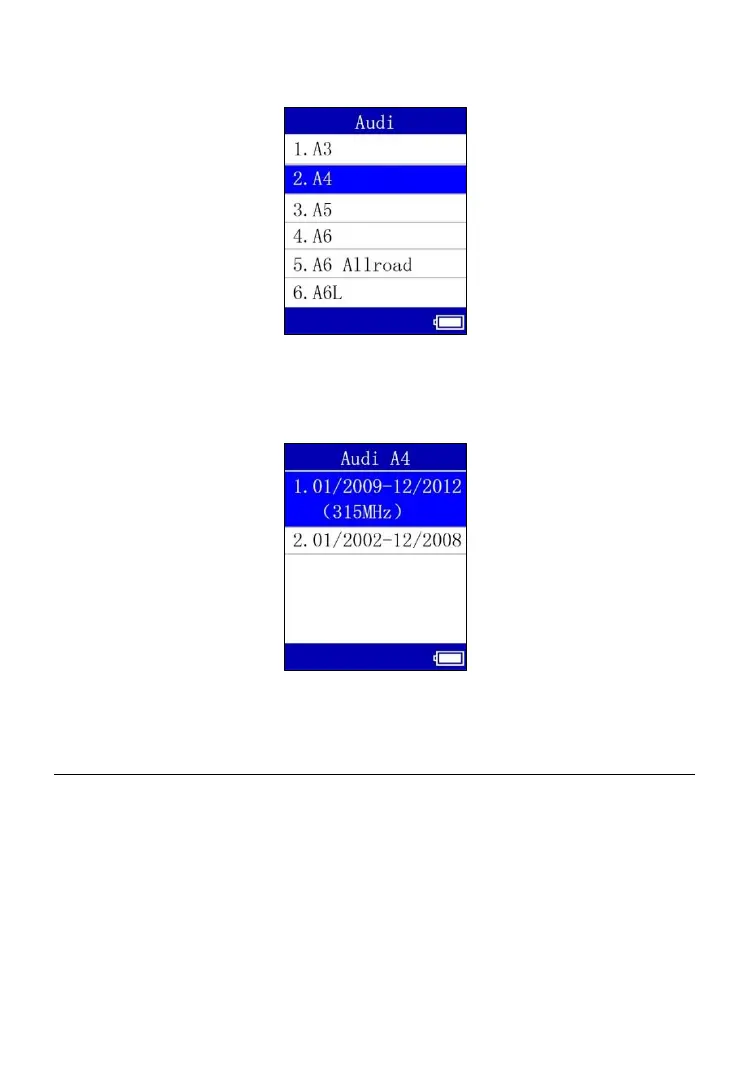

Select by Model
Figure 5.2
Select by Year
Figure 5.3
5.2 Testing results
Activate the sensors in the following order as the tool displays, LF (Left Front),
RF (Right Front), RR (Right Rear), LR (Left Rear) and SPARE (if equipped).
Use the UP or DOWN Arrow button to move to the desired wheel for testing.
