Rudolf R2 User's Manual
Opening Communication port
Rudolf opens the PC communication port, Com1 – Com4.
If the selected port is in use by another program, this operation
fails. If no port is selected, Rudolf brings up a dialog that
makes you select a port.
Connecting to control unit
Rudolf makes sure that a control System is connected to the PC.
If it fails, make sure the right cable is connected and that the
control unit is powered.
Receiving Data…
Rudolf receives the project currently in the control unit. If it
fails, there is a bad cable connection between the PC and the
control unit.
Verifying Data…
After receiving all data, Rudolf reads the control unit again to
make sure all data is correct. If it fails, there is a bad cable
connection between the PC and the control unit.
Completing
Rudolf informs the control unit the upload is finished and closes
the PC communication port.
2.2.2 Transmit to control unit…
Alt+C+T
Transmit the open project to the control unit. This takes approx.
~10 seconds.

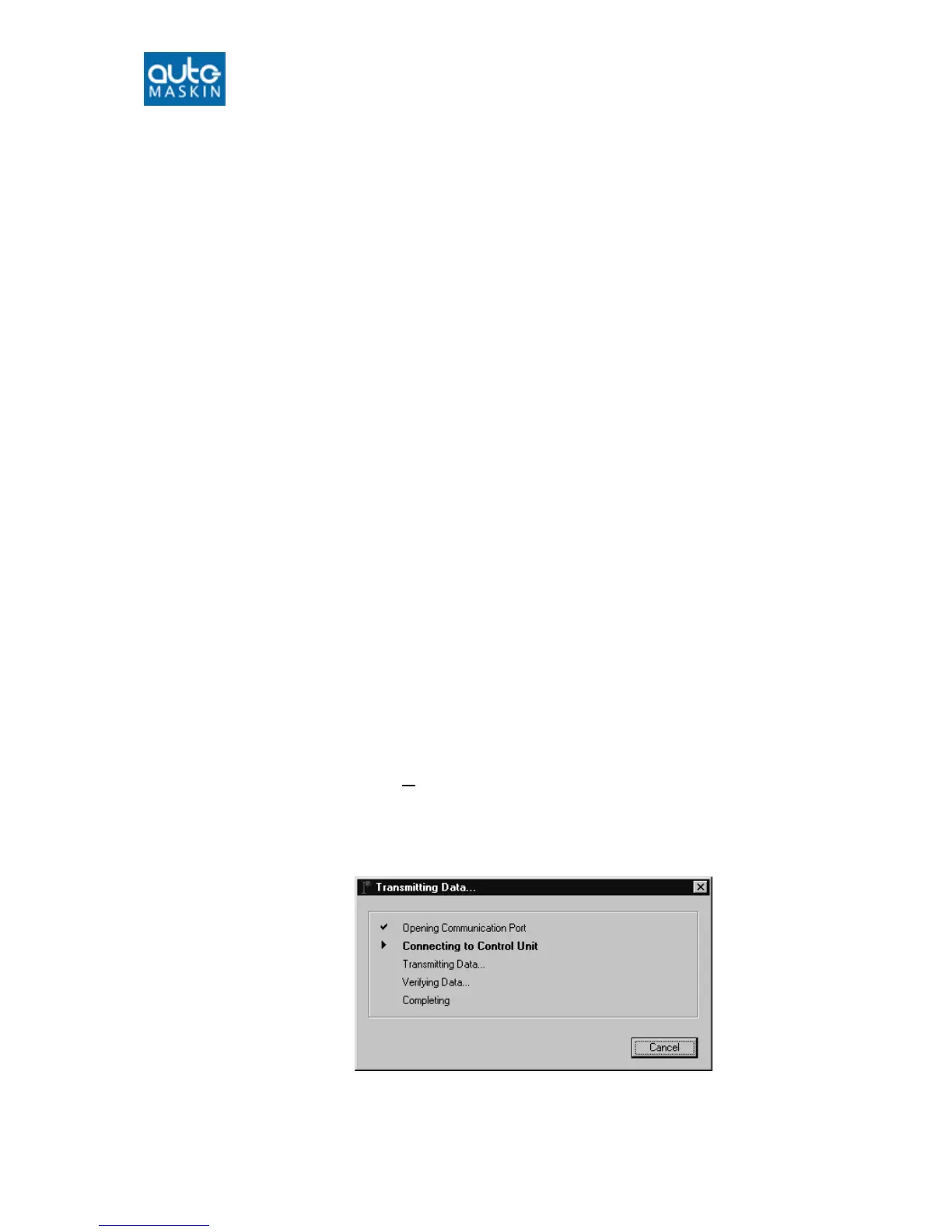

The following dialog will appear:
