Rudolf R2 User's Manual
3BConfiguration Sections - 12BAnalog In • 29
The limit can be set with one decimal.
4.3.8 Action Type
None: No setpoints are set. The analog value will be displayed
only.
Warning: Does not need acknowledge. Activates the common
warning relay.
Alarm: Needs acknowledge. Activates the common alarm relay.
Shutdown: Needs acknowledge. Stops the engine. Activates the
common alarm and common shutdown relay.

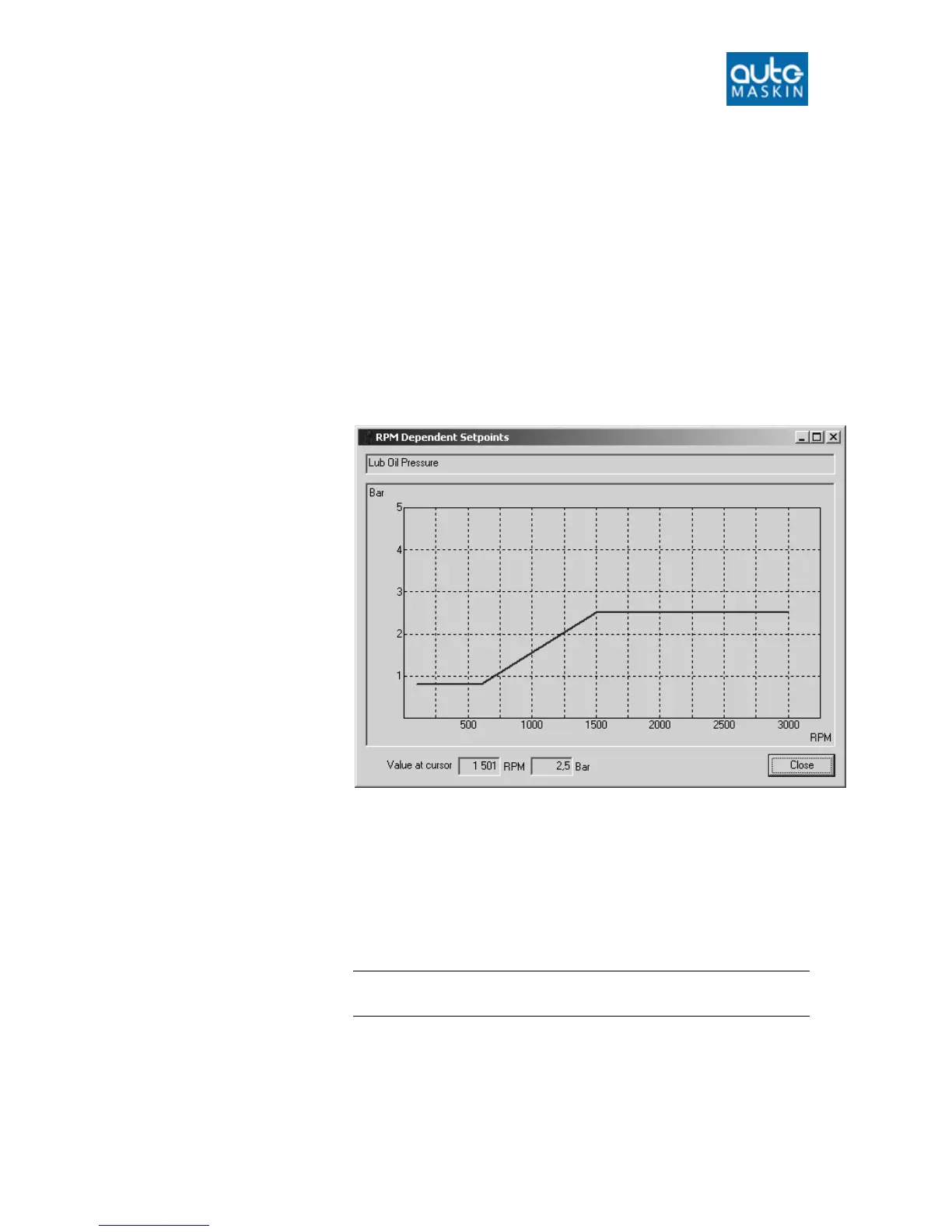

RPM dependent…: The setpoint varies with the current rpm.
Here, the Lub Oil Pressure alarm setpoint varies as follows:
 0.8Bar @ <600rpm
 2.5Bar @ >1500rpm
 Linear setpoint between 600rpm and 1500rpm
Note: To make a ramp function, just make the two rpm-values
equal.
4.3.9 Double Scale
Ticking this option doubles the size of the bargraph.
