Rudolf R2 User's Manual
3BConfiguration Sections - 18BRelays • 39

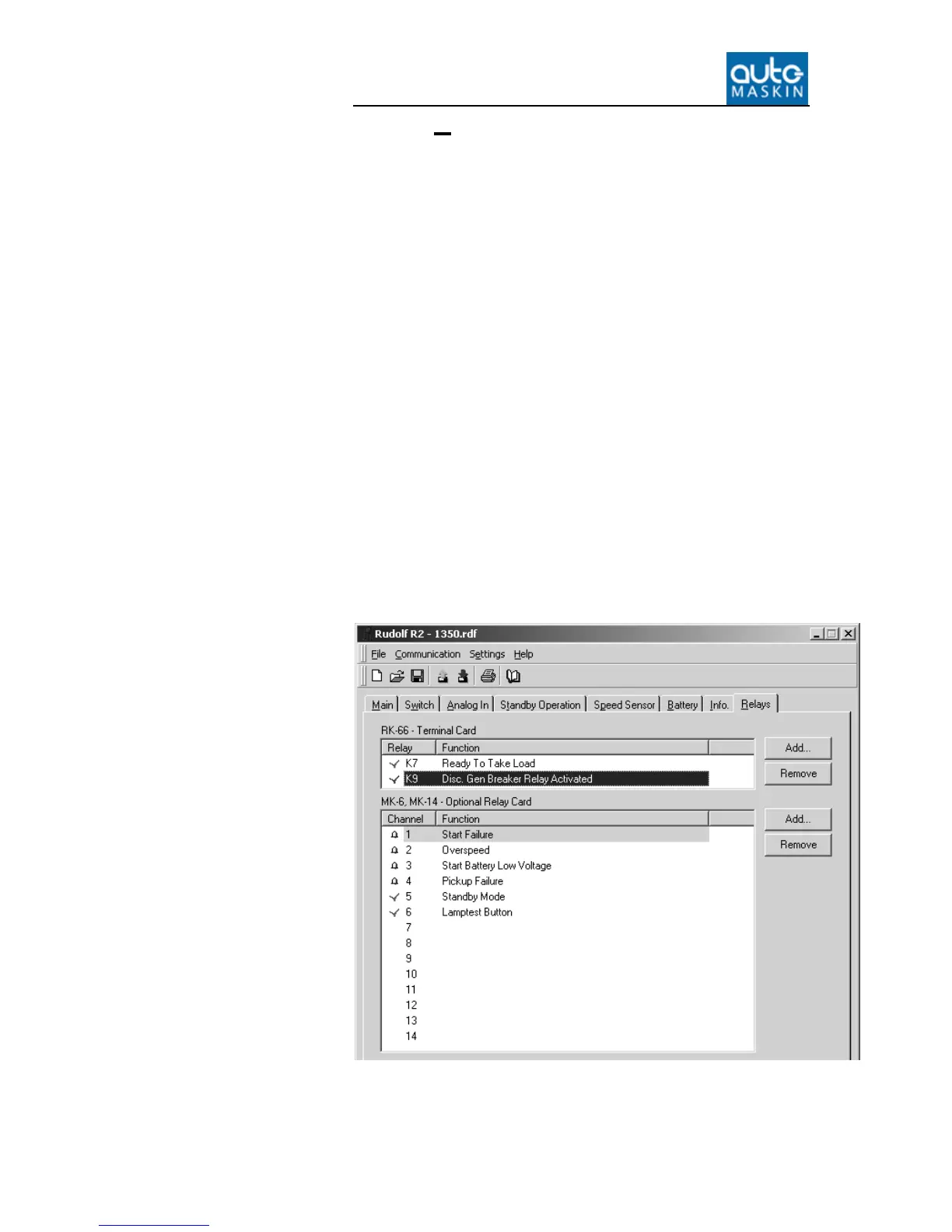

4.9 Relays
Alt+R
On the terminal card, a number of functions are configurable to
different relays as follows:
4.9.1 RK-60
There are no configurable relays available on this card. The
card is used with the DCU 305 R1 system and is not
configurable.
4.9.2 RK-66 R2
On the RK-66 R2 wire terminal card, the two relays K7 and K9
are configurable. See page 41 for available signals to these
relays
4.9.3 MK-6 and MK-14
When necessary, optional extra relay-cards can be connected
directly into the control unit.
Two types are available; the MK-6 with six relays, and the MK-
14 with 14 relays.
