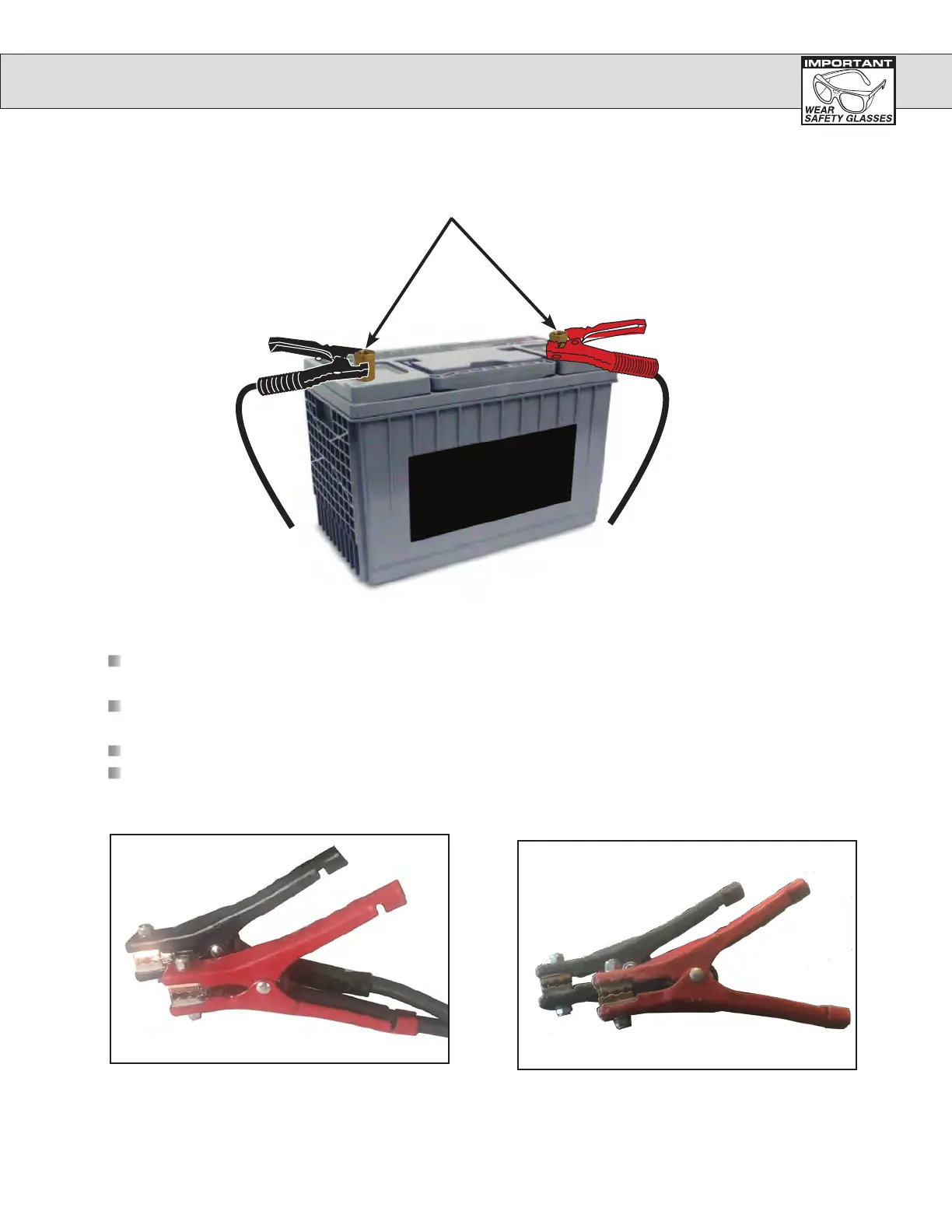

HOOK UP
CONNECTION ERRORS
If the clamps are reversed the Reversed Connection warning will be displayed on the
Control Module with an audible beeping.
If one or both of the clamps are not in complete contact (both sides of each clamp jaws)
A "Check Connections" screen will appear on the control module.
Clean battery terminals with a wire brush if battery terminals are corroded or dirty.
Clean clamp jaws with 1 part ammonia and 10 parts water if clamp jaws are corroded or
dirty.
Connect Black Clamp to
Negative (-) Terminal
Connect Red Clamp to
Positive (+) Terminal
Clean Clamps Corroded Clamps
Note: Brass or lead battery terminal adapters must be
used when performing individual battery tests.
See page 11 for list of available adapters
