39

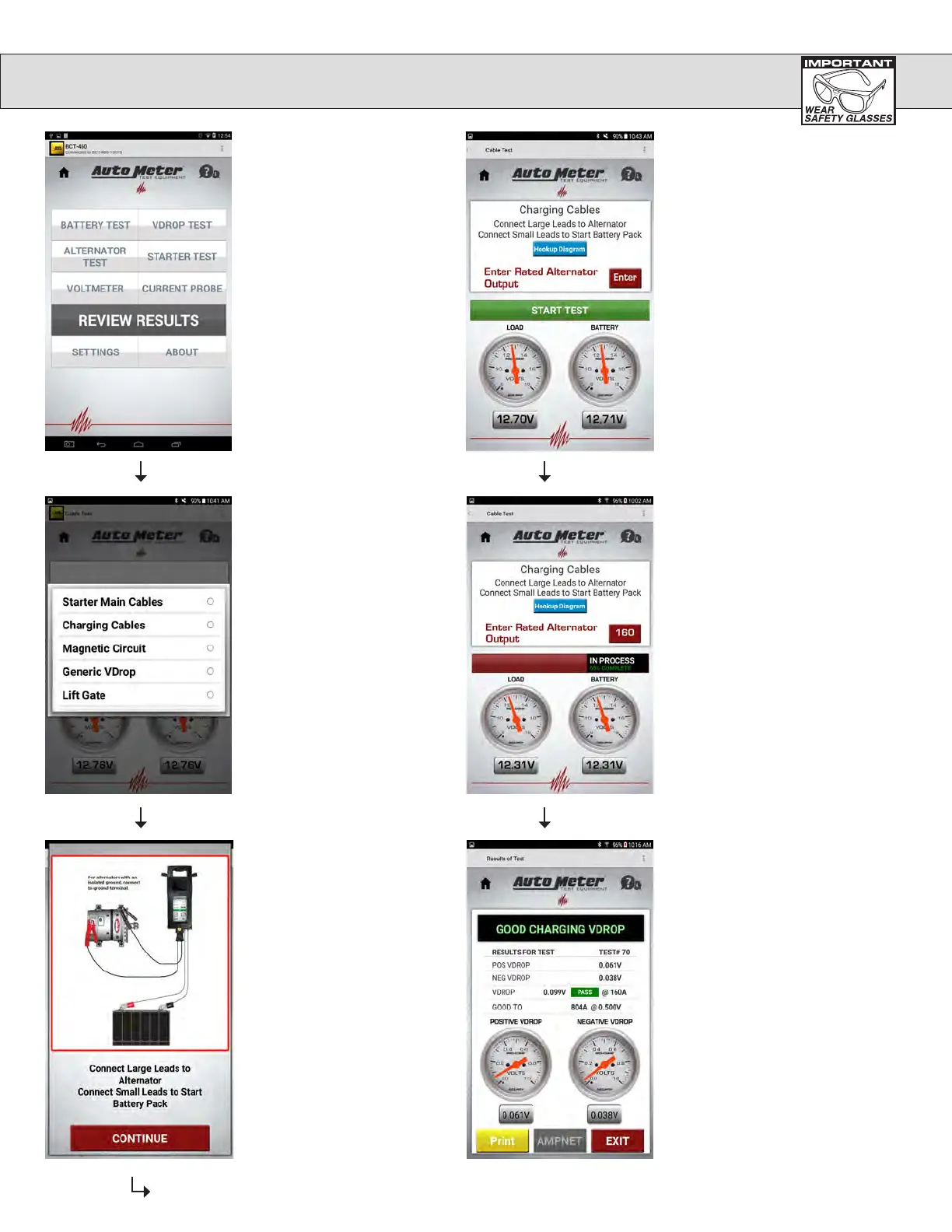

The screen will show you
where to make your connections.
The large clamps need to be
connected to the alternator
terminals. The red clamp to
the alternator positive terminal,
black to the alternator ground.
The small clamps need to be
connected to the battery posts.
The small red clamp to the
battery +, the small black clamp
to the battery -.
If the combined voltage drop of
the positive and negative circuit
is less than 500mV, the voltage
drop test passes. If the voltage
drop test fails you should start by
troubleshooting and repairing the
side of the circuit with the highest
voltage drop.
Select individual tests, then
select the V DROP Test from
the main menu.
Select Charging Cable Test. Test in process, please wait.
To set the test
current, press the Test current box
and a numeric keypad will appear.
Enter in the alternator output for
the vehicle you are testing. Press
the Done button and then press the
Start Test button.
VOLTAGE DROP TEST (Charging Cable Test)
