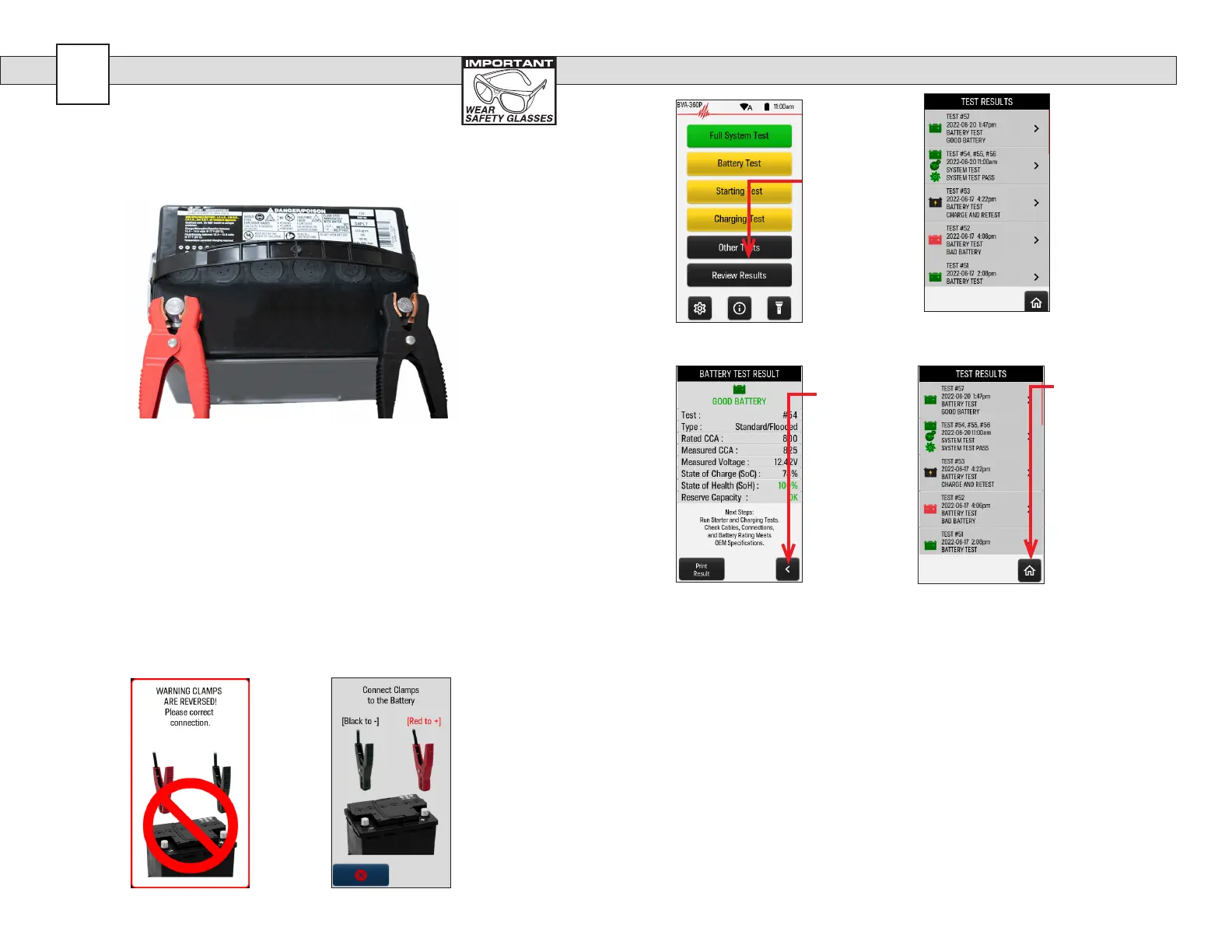

HOOK UP
1. Turn the tester on
2. Connect the leads to the battery. Red to positive (+), and black to negative (-)
3. Choose either Battery Test, or Full System test. If your leads are not
connected or not making good contact, the tester will prompt you to connect
the leads after entering in the battery information.
When testing dual post batteries always check the post to which the system
is attached. If a load test in made from a post connection and the alternator is
connected to side terminals a battery load test and charge can be completed, but
the problem may be in the side post connections. AutoMeter offers proper side
post adapters as model number AC-74. Connections should never be made to a
steel bolt, as that may result in improper test readings.
• If the clamps are reversed the “WARNING CLAMPS ARE REVERSED”
message will be displayed on the LCD with an audible beeping.
• If one or both of the clamps are not in complete contact “Connect Clamps to
the Battery” will display on the LCD.
CONNECTION ERRORS
1
REVIEW RESULTS
To review a
previous test,
touch the
black Review
Results
button.
From here (on
360P version)
you may print
the test
results. To go
back, touch
the left
pointing arrow
at the bottom
right of
the screen.
To Exit Test
Results,
touch the
Home icon
at the bot-
tom right of
the screen.
This will be an
example of what
you will then see.
You may touch
the arrow at the
right of a given
test that you
wish to review.
