114 ST4000+ Wheel & Tiller Autopilots: Owner’s Handbook
110 mm (4.33 in)
115 mm (4.53 in)
90 mm (3.55 in)
24 mm
(0.95 in)
17 mm
(0.67 in)
D3242-2

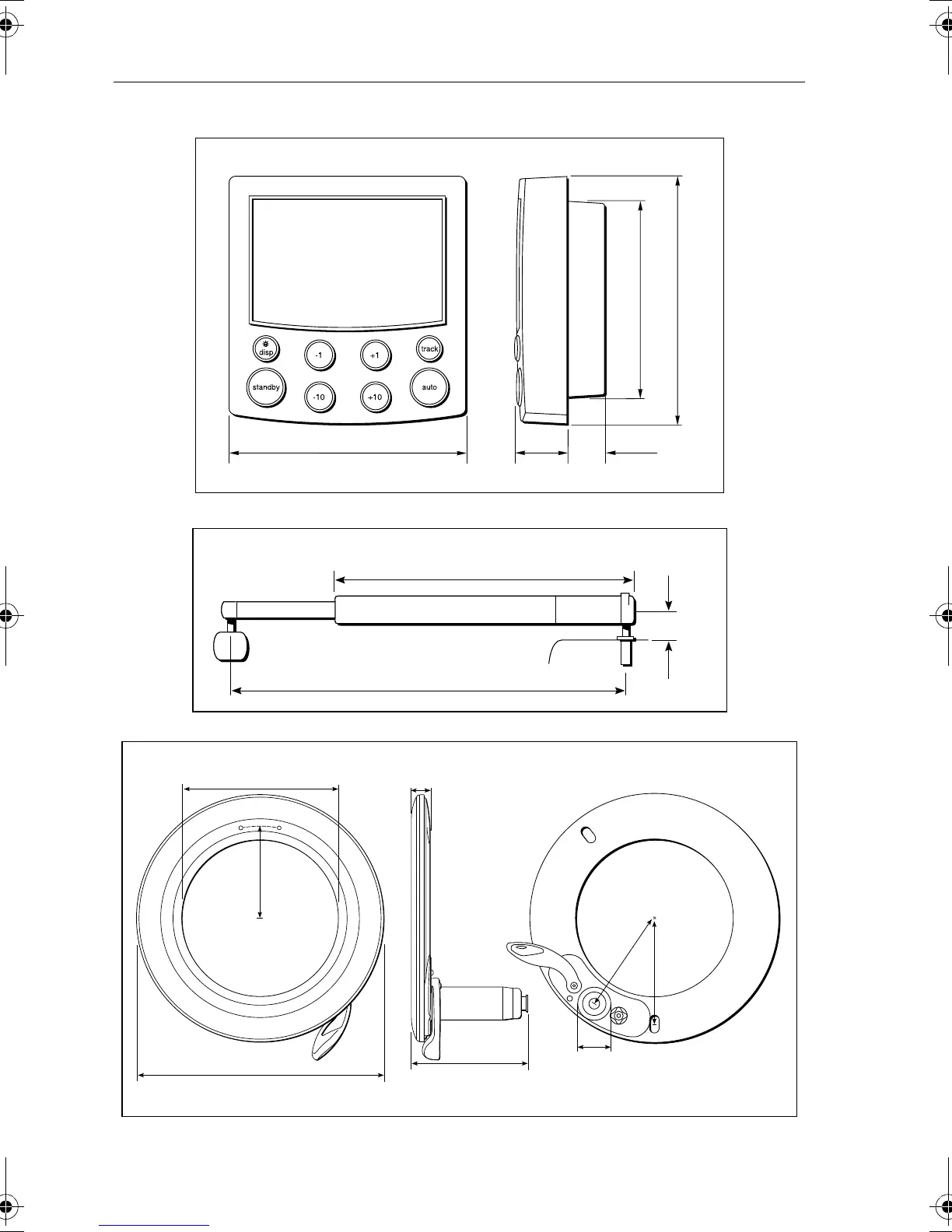

Control unit dimensions
Tiller drive dimensions
midstroke
620 mm (24.5 in)
468 mm (18.4 in)
38 mm
(1.5 in)
D5436-1
D5370-2
361 mm (14.2 in) diameter
228 mm (9.0 in) diameter
135 mm
(5.3 in)
171 mm (6.7 in)
[plus 60 mm (2.4 in)
for cable clearance]
motor tube:
48 mm (1.9 in)
diameter
Wheel drive dimensions
28 mm
(1.1 in)
152 mm
(6.0 in)
154 mm
(6.1 in)
