Machine hole
90 mm (3.55 inch)
diameter
Drill 5 mm (3/16 inch)
diameter hole
Drill 5 mm (3/16 inch)
diameter hole

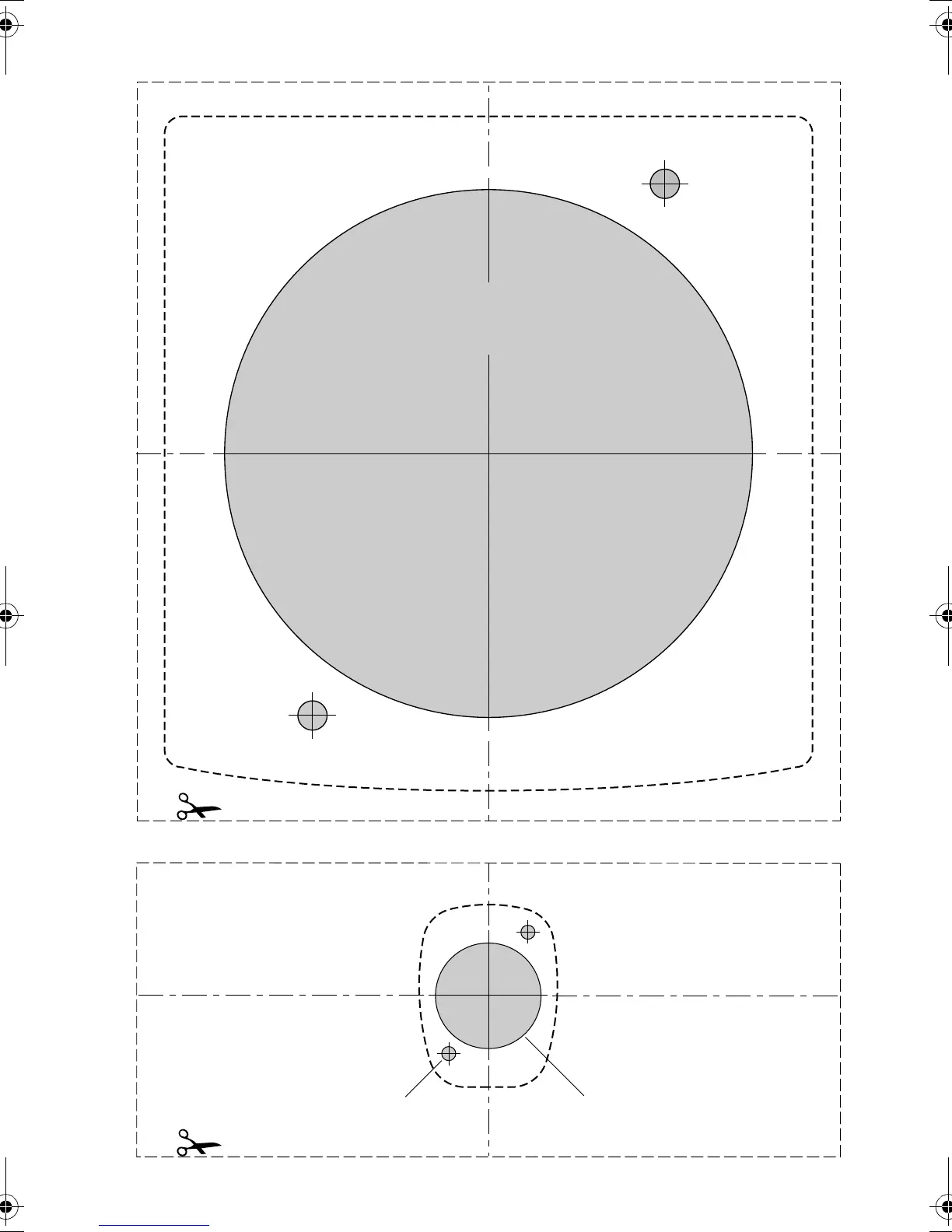

Control unit - surface mount template
Drill 2.5 mm (3/32 inch)
diameter hole (2 positions)
Drill 18 mm (23/32 inch)
diameter hole
Tiller drive - plug template
