80 ST4000+ Wheel & Tiller Autopilots: Owner’s Handbook
5 Installing the ST4000+

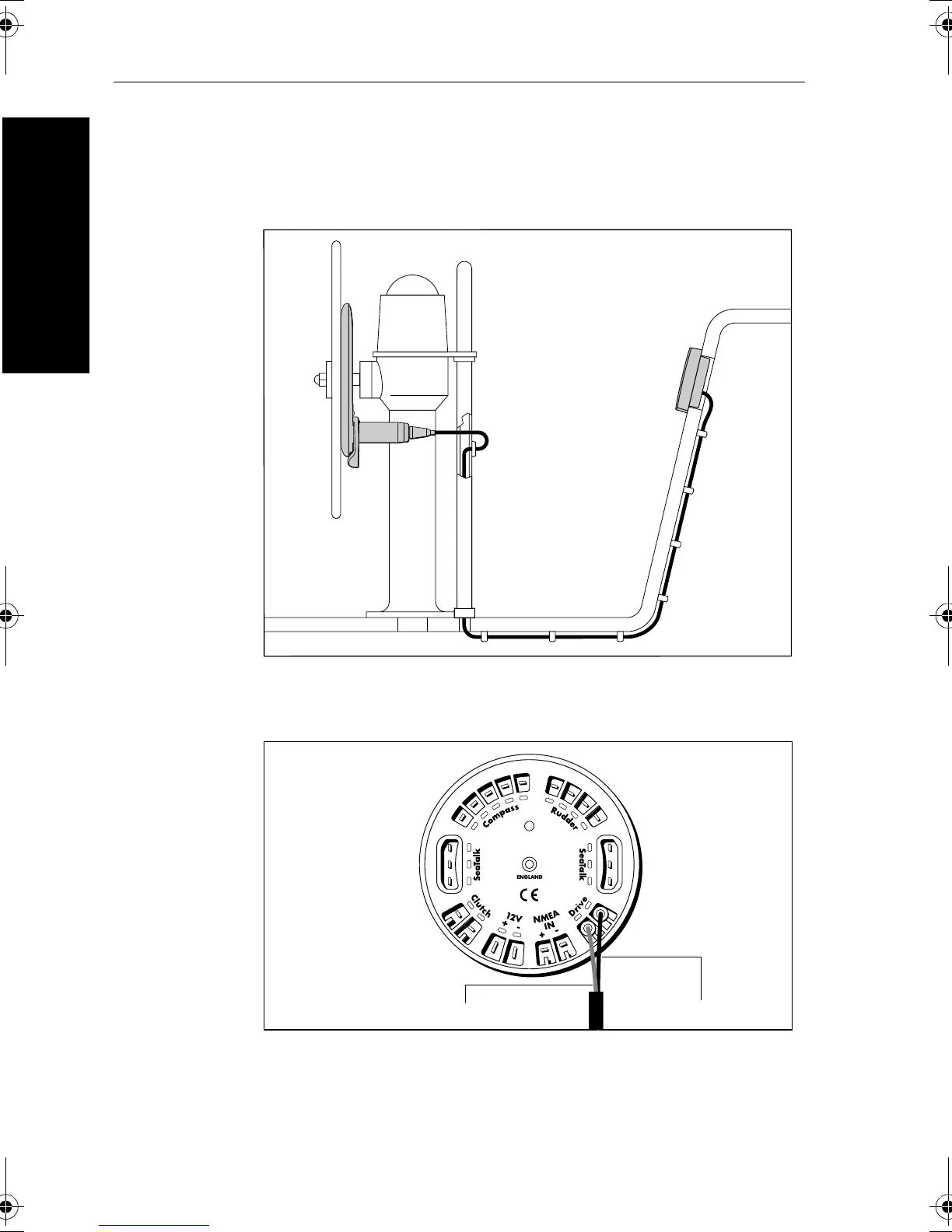

2. Route the cable through the pedestal (or guard rail) and back to the
control unit:
• if the pedestal has a cable duct, use this for the drive cable to
make sure that it cannot foul the steering mechanism
3. Run the drive cable back to the control unit and connect the two
cores to the
Drive terminals as shown.
D5338-1
Brown Blue
D3284-2
