ST50 WindTrim and SpeedTrim Operation and Installation Handbook ST50 WindTrim and SpeedTrim Operation and Installation Handbook

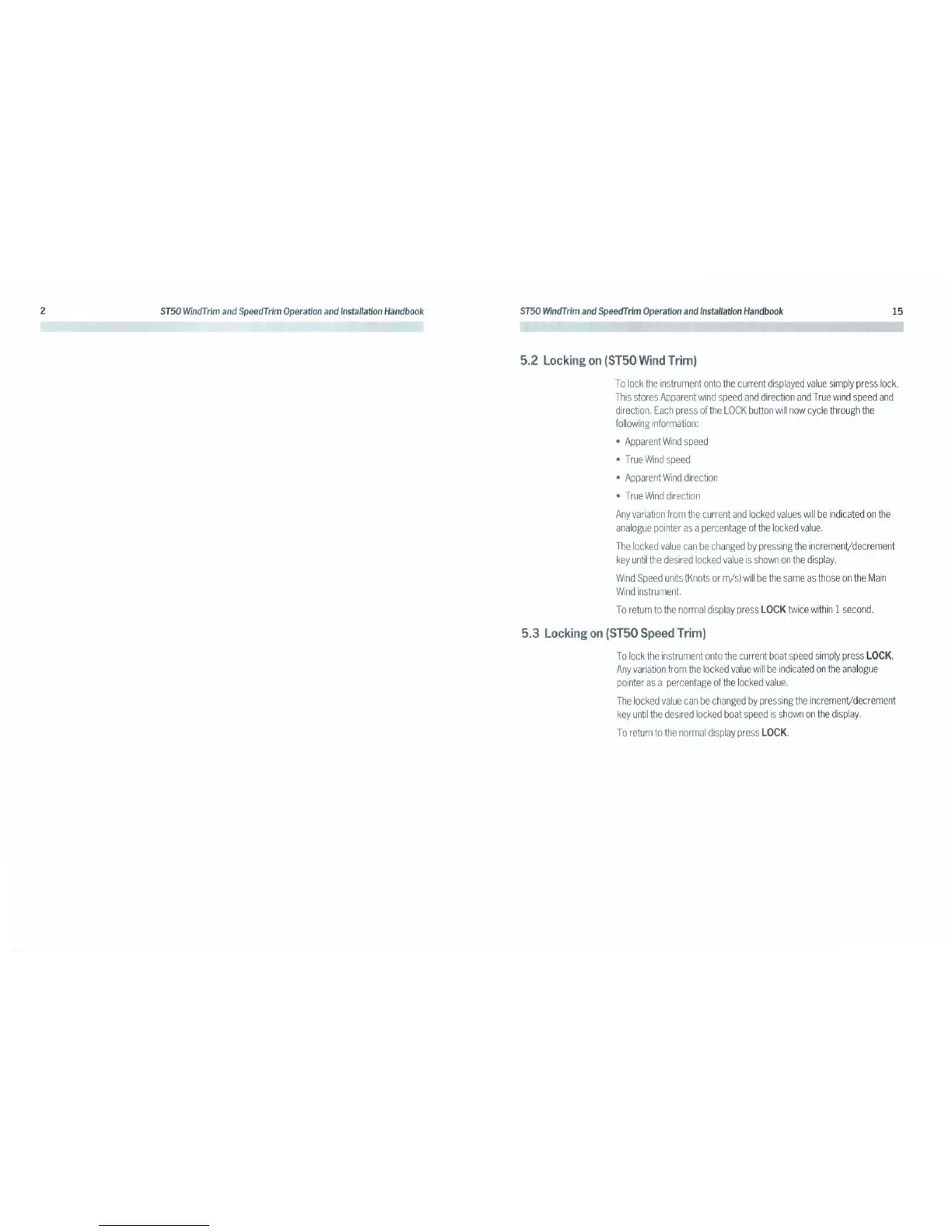

5.2 Locking on (ST50 Wind Trim)
15
To lock the instrument onto the current displayed value simply press lock.
This stores Apparent wind speed and direction and True wind speed and
direction. Each press of the LOCK button will now cycle through the
following information:
• Apparent Wind speed
• True Wind speed
• Apparent Wind direction
• True Wind direction
Any variation from the current and locked values will be indicated on the
analogue pointer as a percentage of the locked value.
The locked value can be changed by pressing the incremenVdecrement
key until the desired locked value is shown on the display.
Wind Speed units (Knots or m/s) will be the same as those on the Main
Wind instrument.
To return to the normal display press LOCK twice within 1 second.
5.3 Locking on (ST50 Speed Trim)
To lock the instrument onto the current boat speed simply press LOCK.
Any variation from the locked value will be indicated on the analogue
pointer as a percentage of the locked value.
The locked value can be changed by pressing the incremenVdecrement
key until the desired locked boat speed is shown on the display.
To return to the normal display press LOCK.
