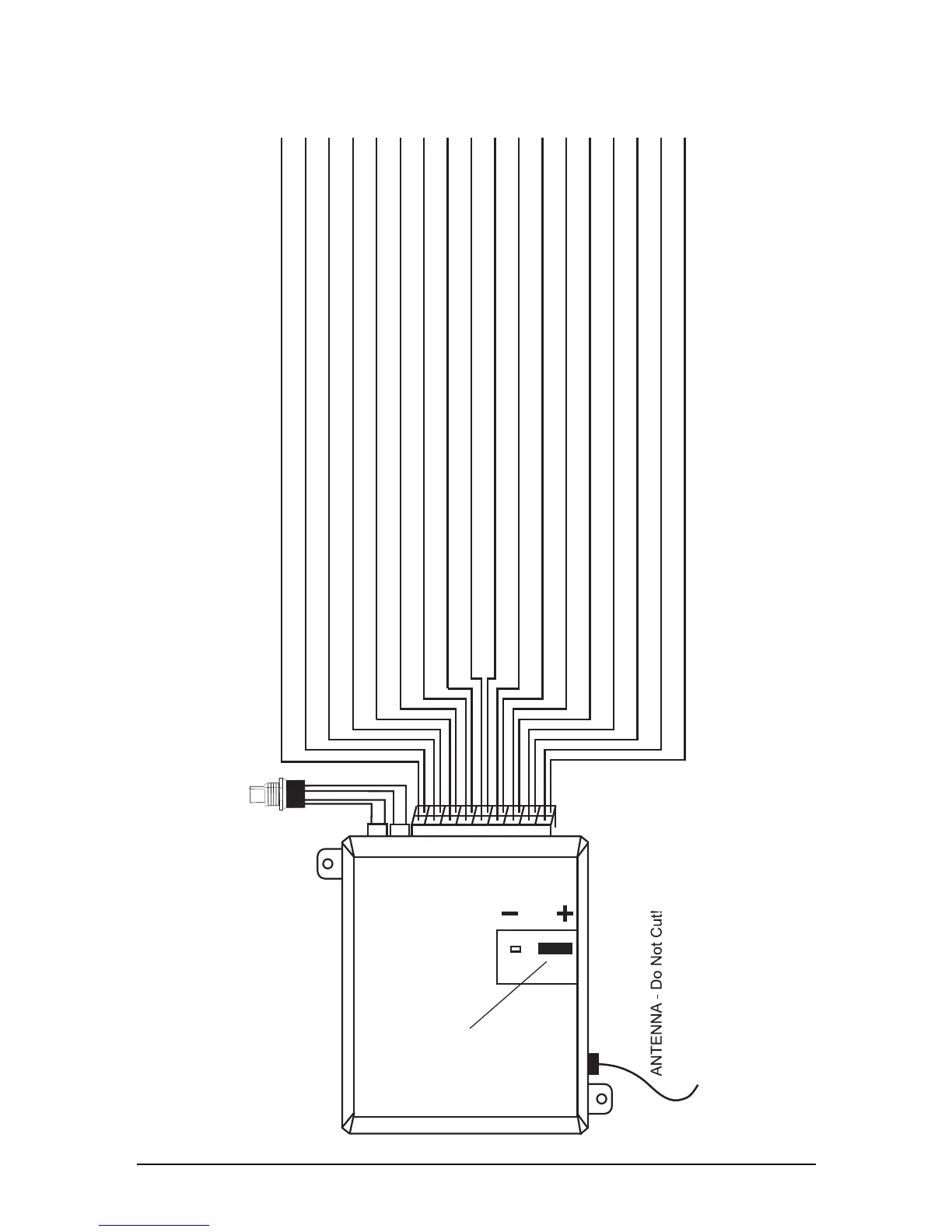

Wiring Quick Reference Guide
Valet/LED
Switch
GREEN/BLACK Lock #30 Common Output
WHITE/BLUE (-) 200 mA Channel 3 Validity Output
BLACK/WHITE Output of Domelight Supervision/Aux Chnl 2 Relay #30
LT. GREEN/BLACK Factory Alarm Disarm (-200ma) output
BLACK/WHITE-1 Input to Domelight Supervision/Aux Channel 2 Relay #87
BROWN (-) Horn Honk Output
BLUE (-200mA) 2nd Unlock Output
BLACK (-) Chassis Ground Input
RED (+) 12V Constant Power Input
WHITE (+/-) Light Flash Output
YELLOW (+) Switched Ignition Input
WHITE/BLACK Lock #87A Normally Closed
ORANGE (-) 500 mA Ground-When-Armed Output
VIOLET/BLACK Lock #87
Normally Open (Input)
BROWN/BLACK Unlock #87A Normally Closed
BLUE/BLACK Unlock #30 Common Output
RED/WHITE (-) Channel output 2 / Domelight supervision
VIOLET Unlock #87 Normally Open (Input)
LIGHT FLASH JUMPER
