8
.
©
2007
Directed Electronics
H1/16 ORANGE (-) 500mA Ground-When Armed Output
This wire supplies a (-) 500mA ground as long as the system is armed. This output ceases as soon
as the system is disarmed.

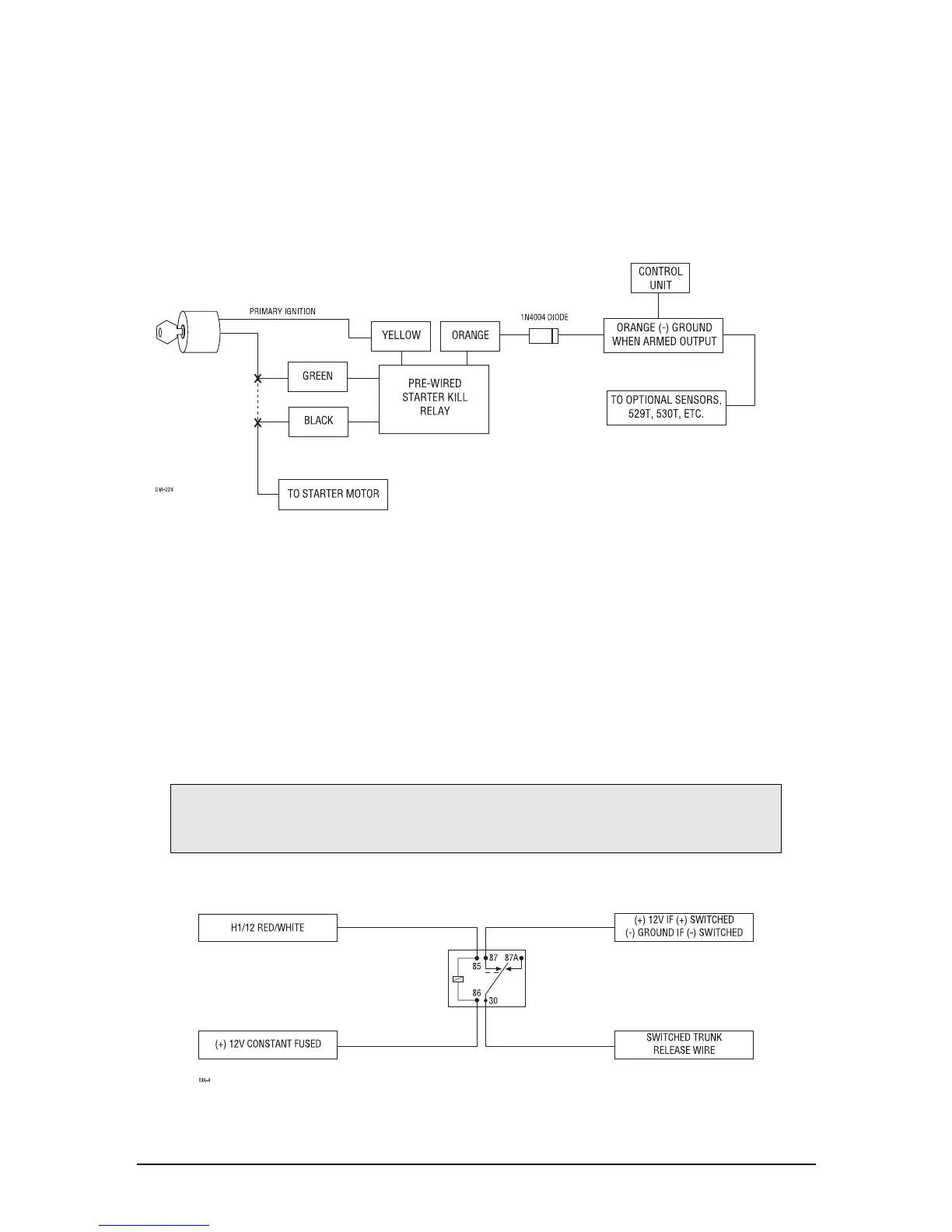

Note: If using the H1/16 Orange wire to activate an add-on accessory such as window automation,
pager or voice module a 1-Amp diode must be installed to ensure proper operation. Insert the diode
as shown in the following diagram.
H1/17 BROWN/BLACK Unlock #87A Normally Closed
See H1/5.
H1/18 RED/WHITE
CChhaannnneell 22
/Programmable Domelight Supervision, (-) 200ma output
When the system receives the transmitter code controlling Channel 2/Aux for longer than 1.5
seconds, the red/white wire will supply an output as long as the transmission continues. This is often
used to operate a trunk/hatch release or other relay-driven functions. When feature 15 is selected to
Aux channel 2, this output becomes a (-) 200ma domelight supervision output.
IMPORTANT! Never use this wire to drive anything but a relay or a low-current input!
The transistorized output can only supply 200 mA of current. Connecting directly to a
solenoid, motor, or other high-current device will cause it to fail.
