Automated Logic LGE User Manual

Revised 12/22/99 • LGE 2 © 1999 Automated Logic Corporation
Using the LGE
The LGE is a gateway module that provides
communication between a workstation and a
control module network (CMnet) consisting of
fewer than 100 modules. Up to 199 gateways
can be networked together on an LGnet,
allowing the LGEs to route global information
between CMnets. Note that versions of
SuperVision earlier than 3.01 do not support
more than 60 gateways.
The LGE provides an Ethernet 10base-T port
for 10Mbps communication with the LGnet,
one console port that can be connected to a
workstation or portable computer, and an
Access Port. The console port has a 9-pin
connector that can be used to connect to a
workstation, portable computer, or modem.
TCP/IP (Transmission Control Protocol/
Internet Protocol) is a family of protocols used
for computer communications. The LGE uses
the UDP/IP (User Datagram Protocol/Internet
Protocol) of the TCP/IP family. The
workstation must be configured to
communicate with the LGE over TCP/IP as
discussed in the document TCP/IP Setup for
SuperVision.
The LGE uses the CEM module driver; for
more information, see the CEM Module Driver
document on the Automated Logic website at
www.automatedlogic.com.
CAUTION Changes or modifications to this
unit not expressly approved by the party
responsible for compliance could void the
user’s authority to operate equipment.
NOTE This equipment has been tested and
found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide

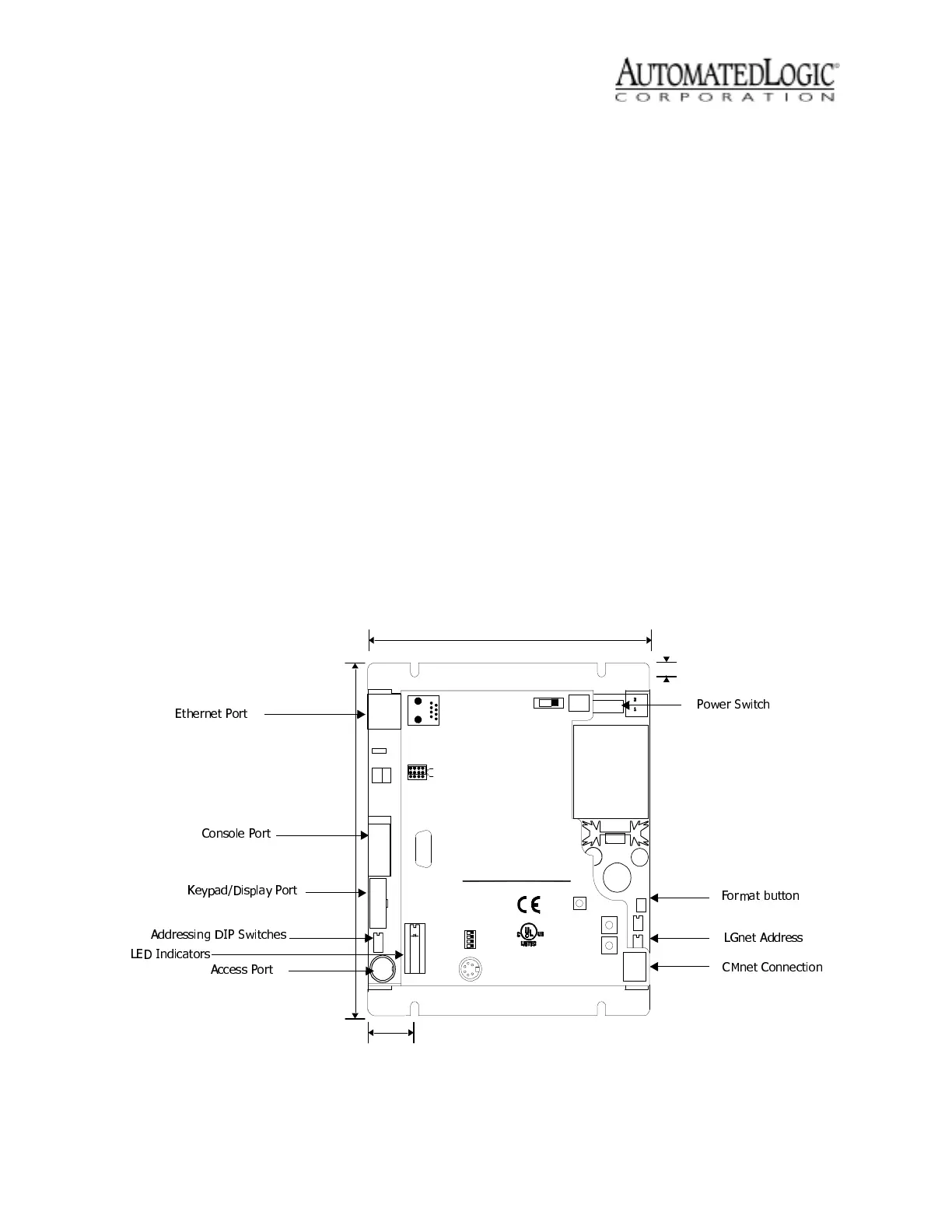

Figure 1. Module dimensions and layout
6"
15.2cm
1"
2.54cm
1/5"
0.5cm
7 1/20"
17.9cm
Console transmit
Console re ceive
Error
CMnet transmit
CMnet receive
Power
Run
Link
Lan
9600/38.4k baud
Default/Assigned
ARC156/Legacy
LGnet Address
Port
Access
Keypad/Display
Port
Console Port
n/c
EIA-232
Ethernet
OnOff
Ground
24 Vac
Power
Format
LGnet
Address
10's
1's
UTOMATED
CORPORATION
A
OGIC
L
Management Equipment
TYPE: 03305
E143900
88FO
R
Open Energy
LGE
CMnet
Connection
Over ARCNET 156 KBaud
BACnet
TM
10 baseT
Legacy
IP Ad dr
+0 / +100
Source Only
Single Class 2
24 Vac
50-60 Hz
7.2VA
0.3A
Use Copper
Conductors
Only
Shield
Net -
Net +
0
1
3
4
5
2
7
8
9
6
0
1
3
4
5
2
7
8
9
6
n/c
n/c
n/c
+10v
3
8
9
4
5
7
6
2
1
tx
dtr
sig gnd
rx
dcd
 
  
 
 
 
 
 
 
 
 !  
