Parameter Option Default Menu Section
Menu 9 - Memory Tools
CLR CONTROL 9.1 Appendix E
CLR TRANSMITTERS (TX’ERS) 9.2 Appendix E
Menu 10 - Setup Travel
LIMIT TRAVEL 10.1 8.1
REPROFILE TRAVEL 10.2 9.5
SET PEDESTRIAN 10.3 14.1
Appendix
B - Viewing & Editing Parameters
This section illustrates how to locate, view and
adjust parameters.
Locating parameters
Refer to Appendix A for Consile Menu
Structure. Locate the required parameter and
note the MENU number. The example used in
(Fig. B.1) displays “CLOSE LOCK TIME”
Changing Setting
a. Press NEXT/PREV to navigate to the required
menu.
b. Press SET to show the sub-menu.
c. Press NEXT/PREV to go to the required sub-
menu.
d. Press OPEN/CLOSE to enter Edit mode and
change parameter setting (Fig B.2).
e. Holding the button down causes the
parameter’s value to change rapidly. The
longer the button is held the faster the value
changes.
f. Press SET to SAVE setting.
Reload Default Setting
g. Press NEXT/PREV buttons to display LOAD
DEFAULT screen.
h. Press SET to load the default value.
Return To Menu
If the parameter values are not to be changed,
press EXIT to return to sub menu. Press EXIT
again to return to the MAIN SCREEN.
2: Close Lock
Time (SEC) 0.5
2: Close Lock
Time (SEC) 0.5

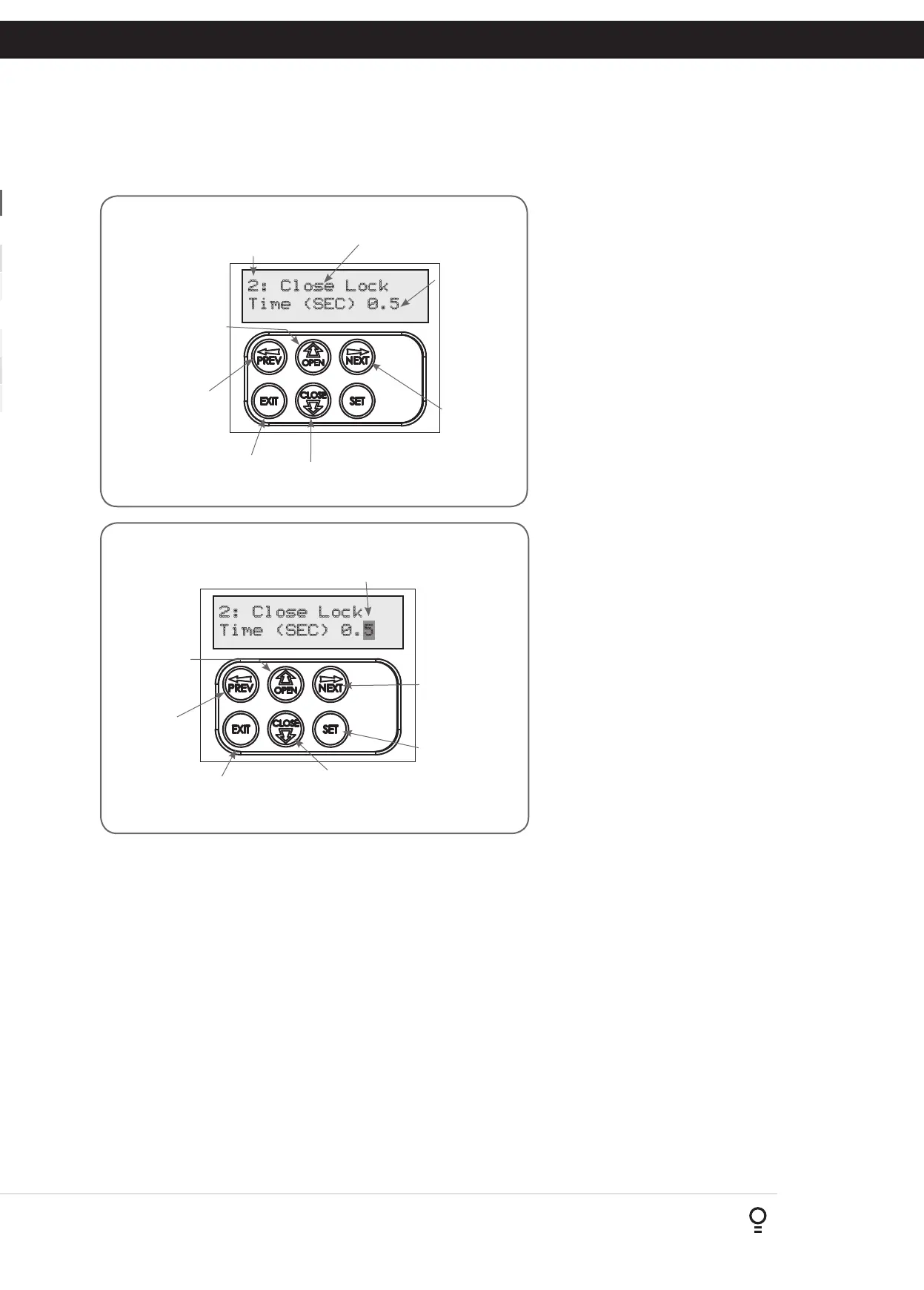

Fig B.1
Fig B.2
Parameter
name
Parameter
value
Displays
next
parameter
in list
Parameter
number in list
Enter Edit Mode
Displays
previous
parameter
in list
Returns back
to menu
Enter Edit Mode
View Mode (No cursor)
Edit Mode (Cursor shown)
Increase
value
Displays “Load
Default?”
screen, giving
option of
loading default
value
Exits back to
View Mode with
no changes made
Decrease
value
Saves new value
and exits back to
View Mode
Displays “Load
Default?” screen,
giving option of
loading default
value
Cursor shown
