Automation Direct CTT-1C-A120 User Manual

Digital Counter / Timer / Tach User Manual, 1st Ed.
2-121
www.automationdirect.com

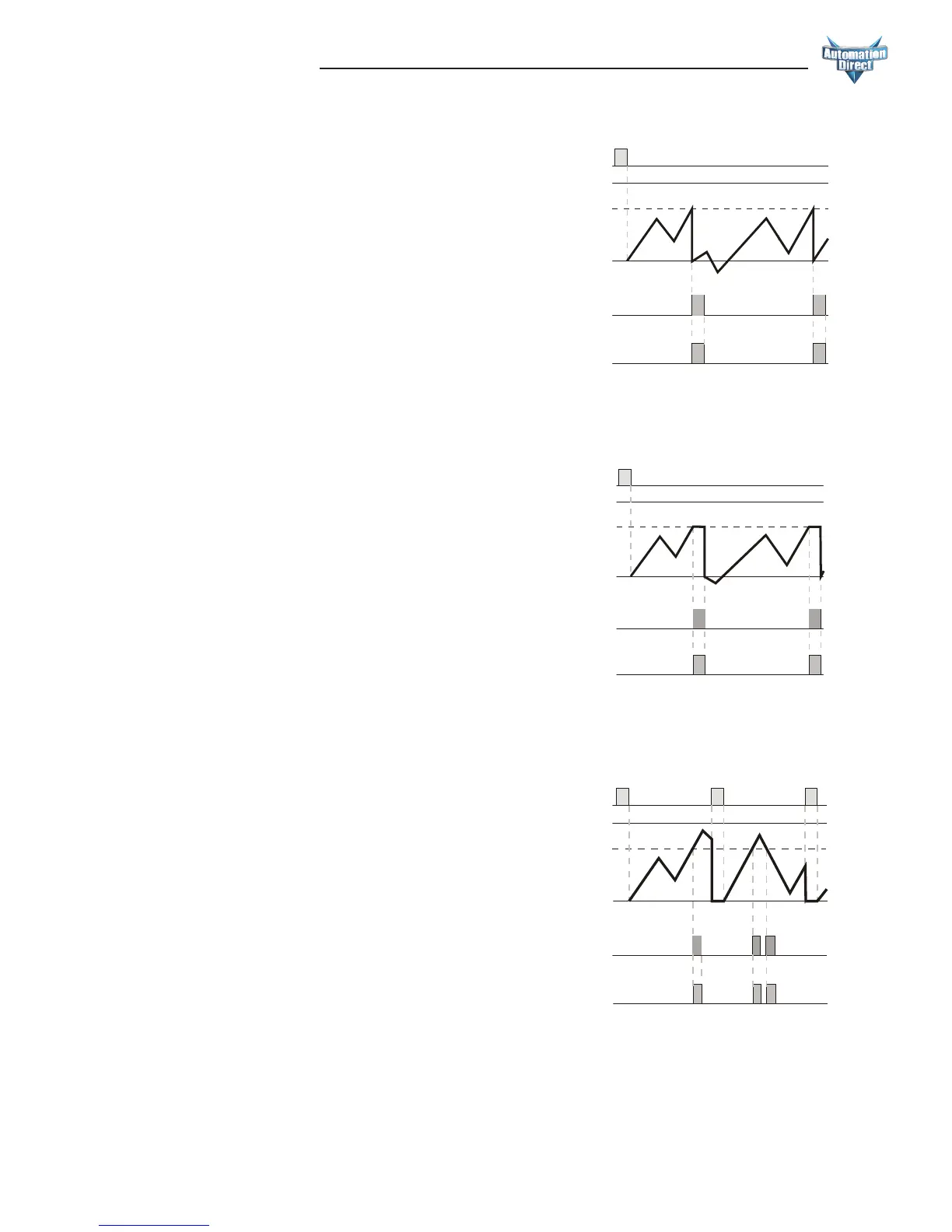

Mode C (
C
)
When the count present value PV counts up to the count setting
value SV both outputs 1 and 2 will turn ON momentarily for
the time set in the output pulse width parameter (
tout2
) and
the count PV will reset automatically to 0.
The leading edge of a “reset” input signal at RST1 will turn
OFF both outputs, reset the count present value PV to 0, and
prohibit an input signal from incrementing or decrementing
the count PV. The trailing edge of the “reset” signal at RST1
enables counting to begin.
The “reset” signal minimum pulse width is set by reset pulse
width parameter (
rtSr
) or DIP Switch 8.
T
T
RESET
999999
SV
PV
OUT2
OUT1
DUAL
Input Mode SUBTRACTION
Output Mode C
T
T
0
Mode R (
r
)
When the count present value PV counts up to the count setting
value SV both outputs 1 and 2 will turn ON momentarily for
the time set in the output pulse width parameter (
tout2
). The
count PV is prohibited from incrementing or decrementing
until the end of the output pulse time (
tout2
) when the
outputs turn OFF and the count PV is reset automatically to 0.
The leading edge of a “reset” input signal at RST1 will turn
OFF both outputs, reset the count PV to 0 and prohibit an
input signal from incrementing or decrementing the count PV.
The trailing edge of the “reset” signal at RST1 enables counting
to begin.
The “reset” signal minimum pulse width is set by reset pulse
width parameter (
rtSr
) or DIP Switch 8.
T
T
T
T
DUAL
Input Mode SUBTRACTION
Output Mode R
RESET
999999
SV
PV
OUT2
OUT1
0
Mode K (
k
)
When the count present value PV counts up or counts down
to the count setting value SV both outputs 1 and 2 will turn
ON momentarily for the time set in the output pulse width
parameter (
tout2
). The count PV will continue to increment
or decrement with each input signal.
The leading edge of a “reset” input signal at RST1 will turn
OFF both outputs, reset the count PV to 0 and prohibit an
input signal from incrementing or decrementing the count PV.
The trailing edge of the “reset” signal at RST1 enables counting
to begin.
The “reset” signal minimum pulse width is set by reset pulse
width parameter (
rtSr
) or DIP Switch 8.
RESET
999999
SV
PV
OUT2
OUT1
DUAL
Input Mode SUBTRACTION
Output Mode K
TT
T
T
T
T
0
