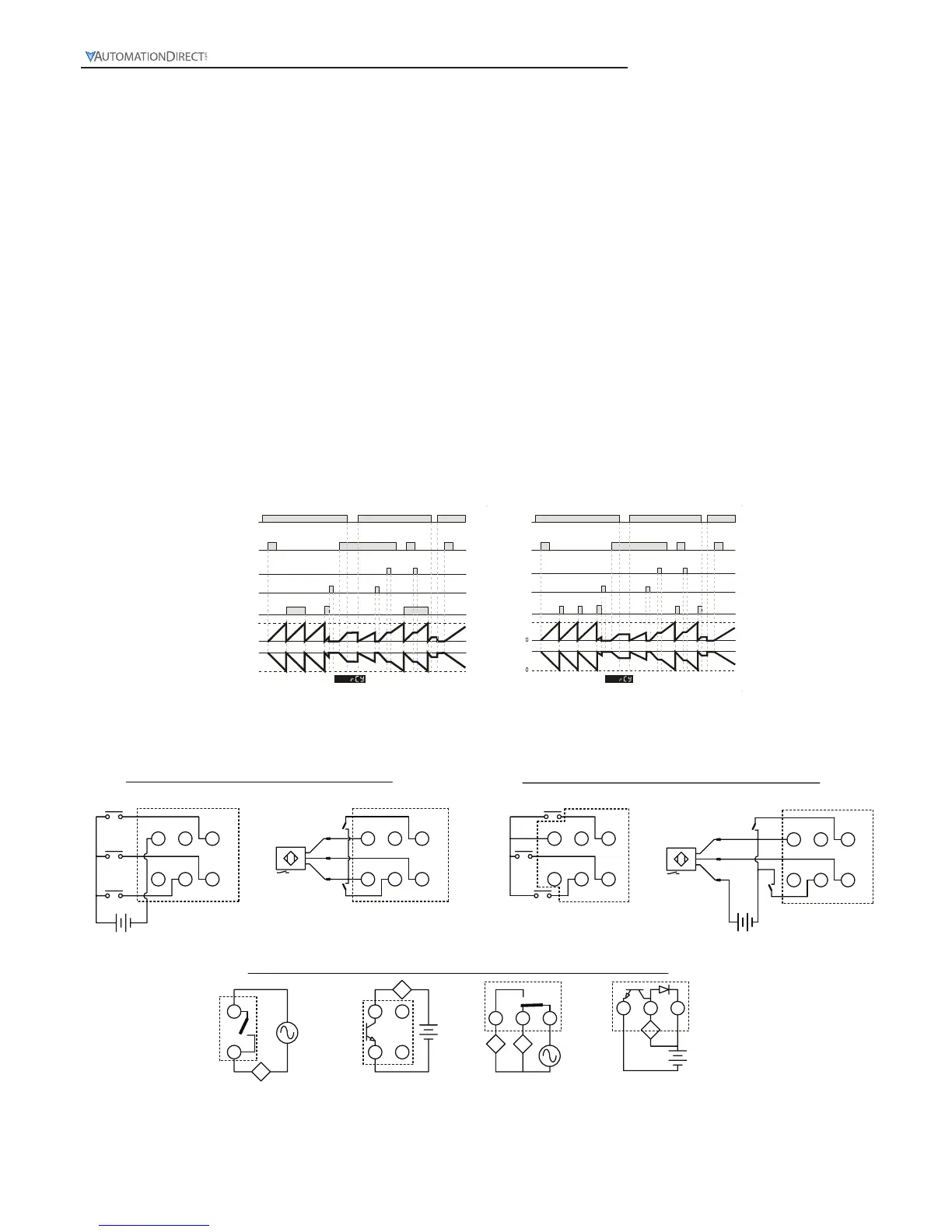

Repeat Cycle (
rCy
)
With power applied to the CTT, the leading edge of the input signal at START will begin the timing period setting
value SV (timing up or down based on parameter (
t modE
). At the end of the timing period, the timing period will
reset and repeat automatically.
If the output pulse width parameter (
tout1
) is set to 0.00 both outputs will turn ON at the end of the first timing
period, turn OFF at the end of the next timing period, turn ON at the end of the next timing period, etc.
If the output pulse width parameter (
tout1
) is set to >0.00 both outputs will turn ON momentarily for the time set
in the output pulse width parameter (
tout1
) at the beginning of the each timing period.
The trailing edge of the “start” signal has no effect on the outputs or timing period.
The leading edge of a “reset” input signal at RST1 will turn OFF the outputs and reset the timing period. The “reset”
signal minimum pulse width is set by reset pulse width parameter (
rtSr
). The leading edge of a new “start” signal is
necessary to restart the cycle.
The leading edge of a “pause” input signal at GATE will pause the timing period after it has been started. The timing
period will continue after the trailing edge of the external switch “pause” (Gate) signal.
When power is removed, both outputs will turn OFF and the timing period will be reset.
CTT Timer
Repeat Cycle
Power signal
Start signal
Pause signal
Reset
Output signal
Up
Down
SV
SV
Repeat Cycle
0
0
timer output set as 0
Power signal
Start signal
Pause signal
Output signal
Up
Down
SV
SV
Repeat Cycle
ttt
timer output not set as 0
Reset
0V CP1
+12V RST1
RST2/
START
Start
Reset
PNP
INPUTS
0V CP1
+12V RST1
RST2/
START
Start
Reset
L-
L+
NPN
INPUTS
Outputs
Load
Load
OUT1
NPN/
SINKING
OUT2
SPDT
Load
OUT1
SPST
Load
OUT2
NPN/
SINKING
Load
+VDC
0VDC
+VDC
0VDC
0V CP1
CP2/
GATE (Pause)
+12V RST1
RST2/
START
Gate
Input
Start
Input
Reset
+VDC 0VDC
Externally Powered
(Optional)
Gate
Input(Optional)
Gate
Input(Optional)
0V CP1
+12V RST1
RST2/
START
Reset
L-
Start
Input
Gate
Input
L+
+VDC 0VDC
Externally Powered
(Optional)
Internally Powered
Internally Powered
876
131211
876
131211
To Next Page
