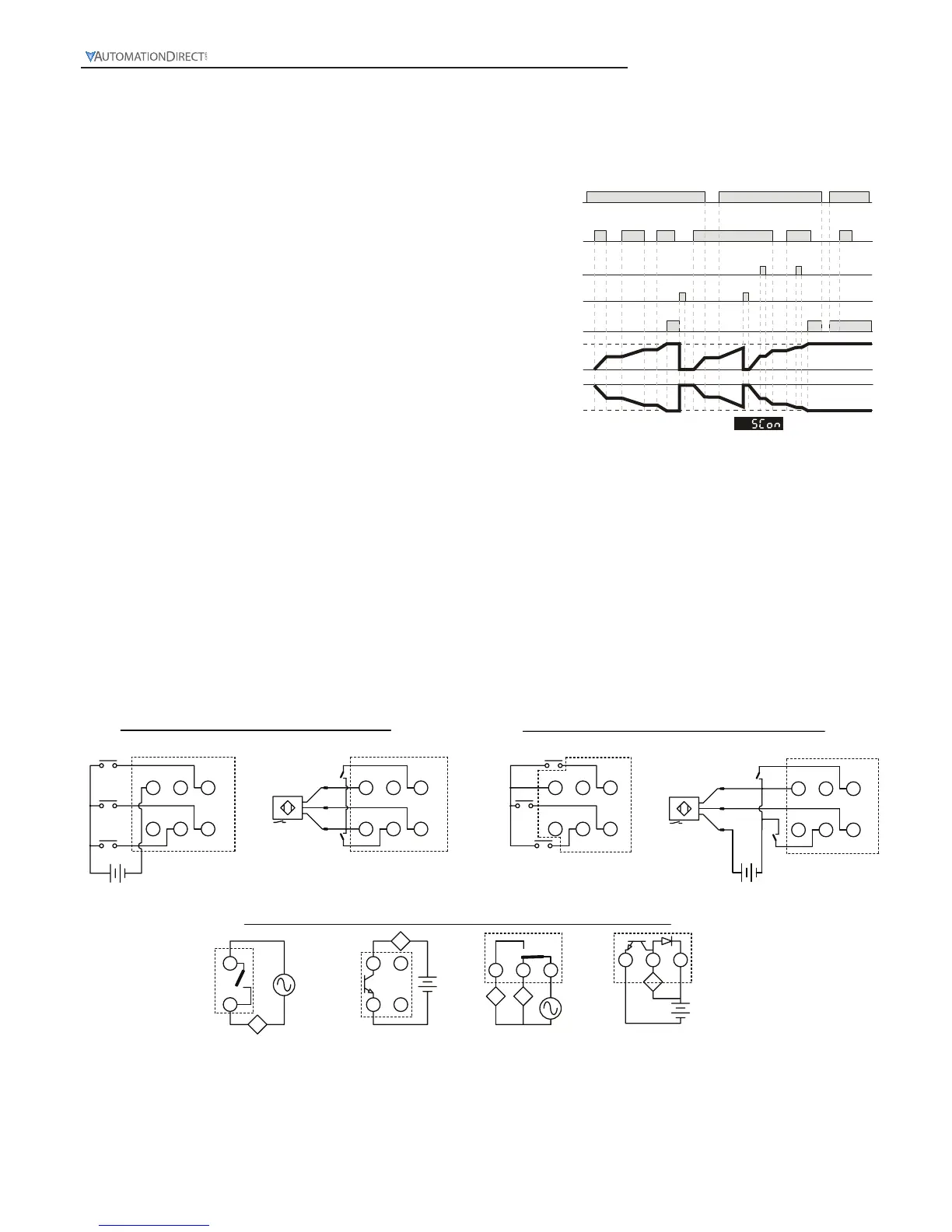

Digital Counter / Timer / Tach User Manual, 1st Ed.
1-800-633-0405
3-22
Signal Cumulate (
SCon
)
With power applied to the CTT, the leading edge of
the input signal at START will begin the timing period
setting value SV timing up or down based on parameter
(
t modE
). The trailing edge of the “start” signal will
pause the timing period. The leading edge of a subse-
quent “start” signal will resume timing from the last
value of the timing period. At the end of the timing
period both outputs will turn ON.
The leading edge of a “reset” input signal at RST1 will
turn OFF the outputs and reset the timing period. The
“reset” signal minimum pulse width is set by reset pulse
width parameter (
rtSr
).
The leading edge of a “pause” input signal at GATE will
pause the timing period after it has been started. The
timing period will continue after the trailing edge of the
external switch “pause” (Gate) signal.
When power is removed, both outputs will turn OFF.
The last state of the outputs and the last value of the
current timing period will be “stored” when power is
removed. When power is reapplied the outputs will
return to their last state and timing will resume from
the last value of the timing period by the leading edge of
a new “start” signal.
CTT Timer
Signal Cumulate
Power signal
Start signal
Pause signal
Reset
Output
signal
Up
Down
0
SV
SV
0
Signal Cumulate
0V CP1
+12V RST1
RST2/
START
Start
Reset
PNP
INPUTS
0V CP1
+12V RST1
RST2/
START
Start
Reset
L-
L+
NPN
INPUTS
Outputs
Load
Load
OUT1
NPN/
SINKING
OUT2
SPDT
Load
OUT1
SPST
Load
OUT2
NPN/
SINKING
Load
+VDC
0VDC
+VDC
0VDC
0V CP1
CP2/
GATE (Pause)
+12V RST1
RST2/
START
Gate
Input
Start
Input
Reset
+VDC
0VDC
Ex
ternally Powered
(Optional)
Gate
Input(Optional)
Gate
Input(Optional)
0V CP1
+12V RST1
RST2/
START
Reset
L-
Start
Input
Gate
Input
L+
+VDC 0VDC
Externally Powered
(Optional)
Internally Powered
Internally Powered
876
131211
876
131211
Timer Wiring Examples
109
321
1514
10
15
321
876
131211
876
131211
CP2/
GATE (Pause)
CP2/
GATE (Pause)
CP2/
GATE (Pause)
