2–3
Chapter 2: Installation and Wiring
SOLO Basic Temperature Controller User Manual
1st Ed. 02/19

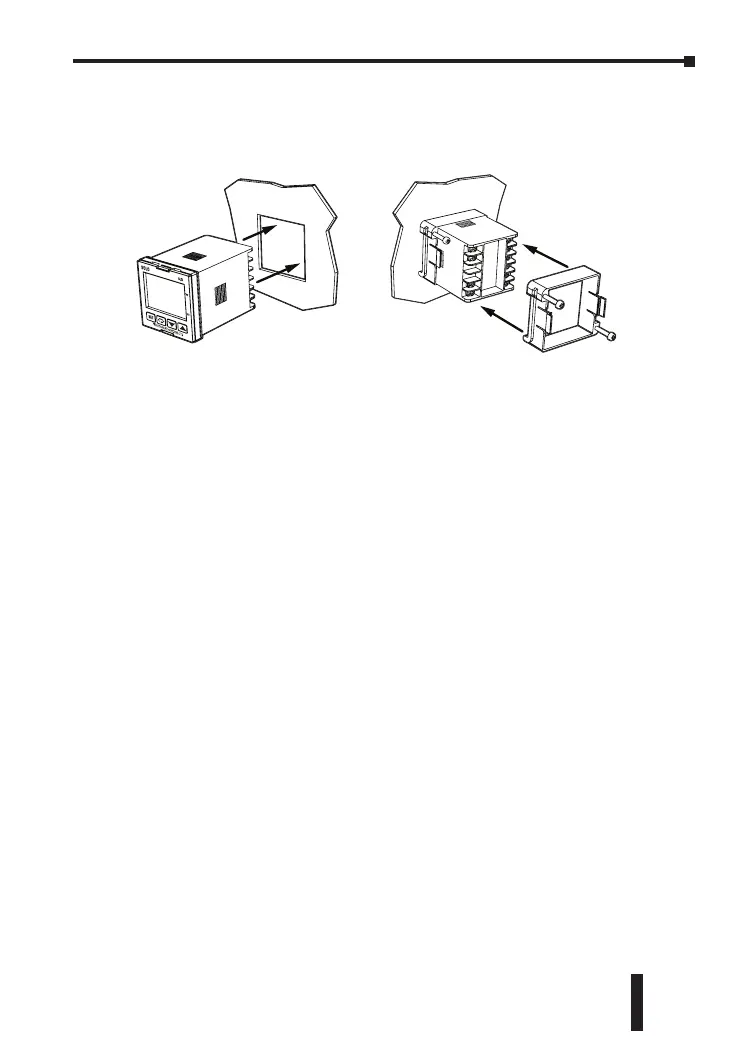

3. Insert the mounting bracket into the mounting groove at the right and left of
the controller, and push the mounting bracket forward until the bracket stops.
4. Tighten top and bottom screws evenly to secure temperature controller in place
(The screw torque should be 0.4 to 0.5 N.m).
