Chapter 3: Keypad Operation and Setup Parameters
SOLO Basic Temperature Controller User Manual
3–2
Display, LCD and Keypad

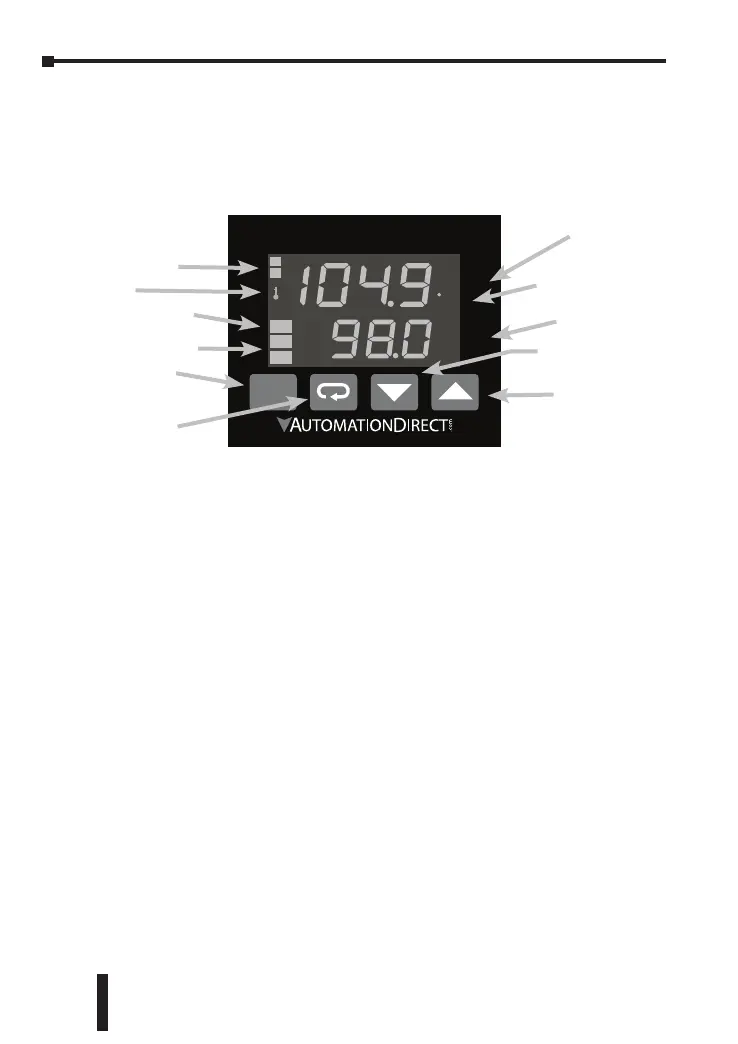

The SOLO temperature controller has a two color seven segment LCD display
and four function buttons.
Key Lock
SLB SOLO
SET
c
SV
PV
A/M
OUT1
1
2
OUT2
ALM1, ALM2
OUT1, OUT2
SV Display
PV Display
°F, °C
Up Button
SET Button
Down Button
Rotate Button
Auto Tuning
PV Display
The Process Value Display. Displays the value from the input source or the
parameter source.
SV Display
The Set Value Display. Displays the set point of the process, the parameter
operation read value, manipulated variable, or the set value of the parameter.
A/M Indicator
A/M indicator flashes when the Auto Tuning operation is ON and is solid when
the controller is in Manual Mode.
OUT1, OUT2 Indicators
Output indicators light when the output is ON.
°F, °C Indicator
Temperature unit indicator. °C: Celsius, °F: Fahrenheit
1, 2 Indicators
Alarm output indicators light when appropriate alarm is activated.
Key Indicator
Key indicator lights when key lock is enabled.
