Autonics CT6M-2P series User Manual

나 5 Guide For Connection
© Copyright Reserved Autonics Co., Ltd. 35

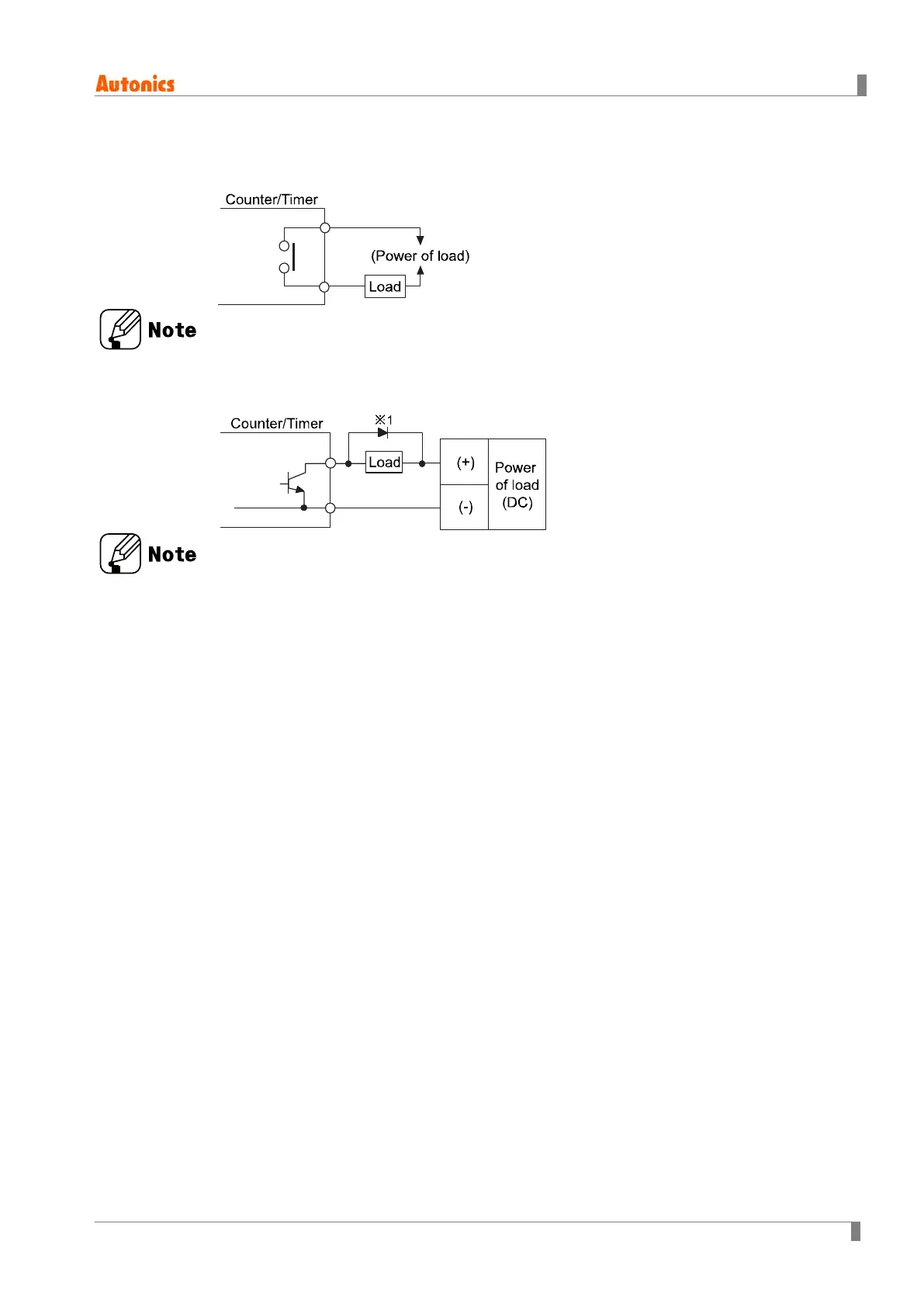

5.2.3 Output connection
(1) Contact output
Select the load which capacity is not over contact capacity.
(2) Solid state output
 For solid state output, select load power and load not to be over (max. 30VDC, 100mA),
switching capacity.
 Do not supply reverse polarity voltage.
※1: For using inductive load (relay, etc), connect surge absorber (diode, varistor, etc) at the both
ends of load.
