Autonics CT6M-2P series User Manual

8 Timer Mode
© Copyright Reserved Autonics Co., Ltd. 57

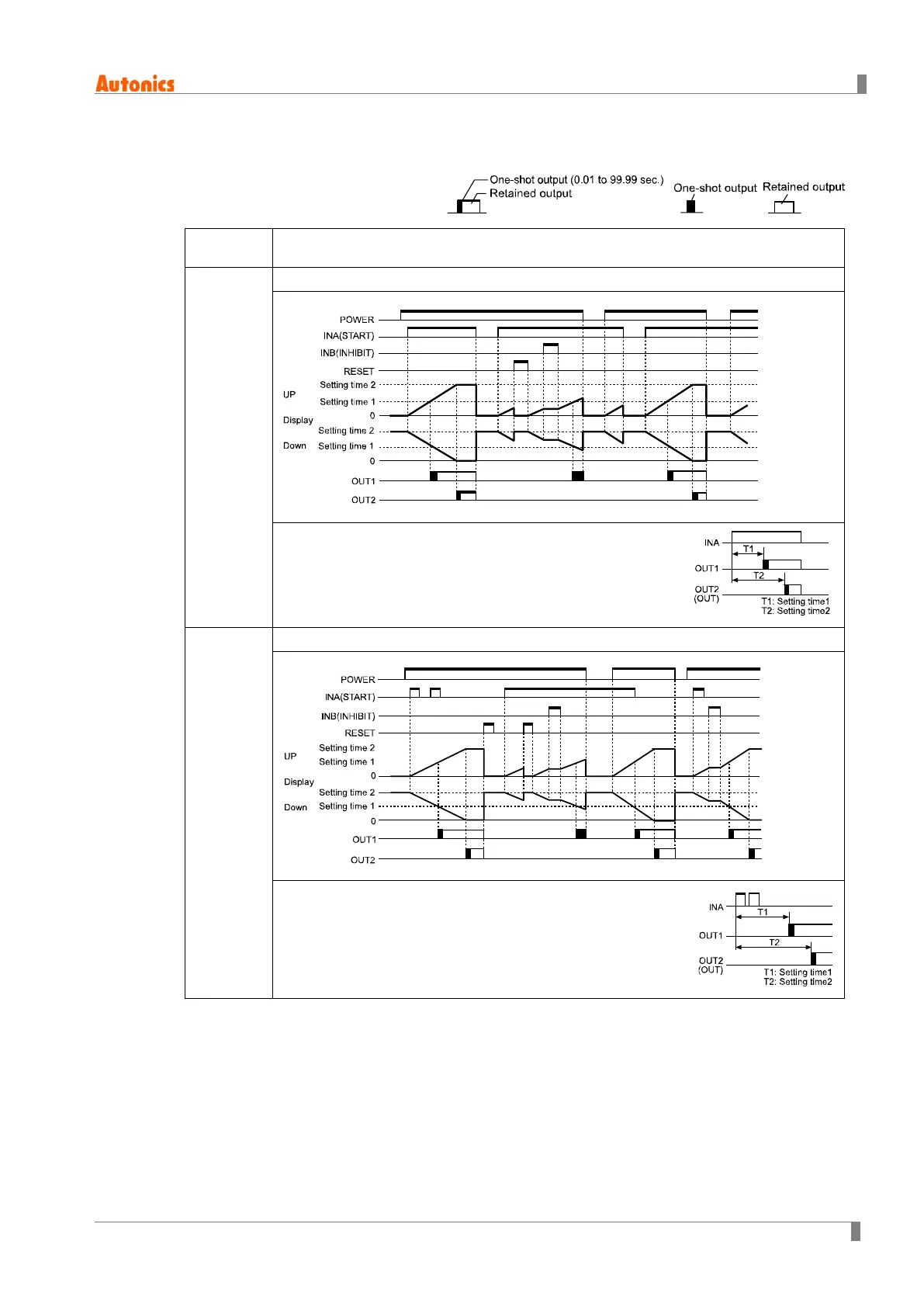

8.2 Output mode
Output
mode
Time chart
OND
[OND]
Signal ON Delay (Power RESET)
1) Time starts when INA signal turns ON.
2) When INA signal turns OFF, time resets.
3) When INA signal is ON: Power ON Time Start is operated.
RESET OFF Time Start is operated.
4) Control output operates as retained or one-shot output.
OND.1
[ONd1]
Signal ON Delay 1 (Power RESET)
1) Time starts when INA signal turns ON.
2) When INA signal is ON: Power ON Time Start is operated
RESET OFF Time Start is operated.
3) Control output operates as retained or one-shot output.
4) Only first INA input signal is valid in case INA input signal is
repeatedly applied.

Autonics CT6M-2P series Specifications

General

Model	CT6M-2P series
Type	Digital Timer
Output Type	Relay
Input Voltage	100-240V AC
Contact Rating	5A 250VAC / 30VDC (resistive load)
Display Type	LED
Display Digits	4
Operating Mode	ON-delay, Flicker, Interval, One-shot
Dimensions	48 x 48 mm
Dielectric Strength	2000V AC for 1 min
Vibration	10 to 55Hz, amplitude 0.75mm (1.5mm P-P) in each X, Y, Z direction for 2 hours
Ambient Temperature	-10 to 55°C (14 to 131°F)
Storage Temperature	-25 to 65°C (-13 to 149°F)
Ambient Humidity	35 to 85% RH (non-condensing)
