8 Timer Mode
66 © Copyright Reserved Autonics Co., Ltd.

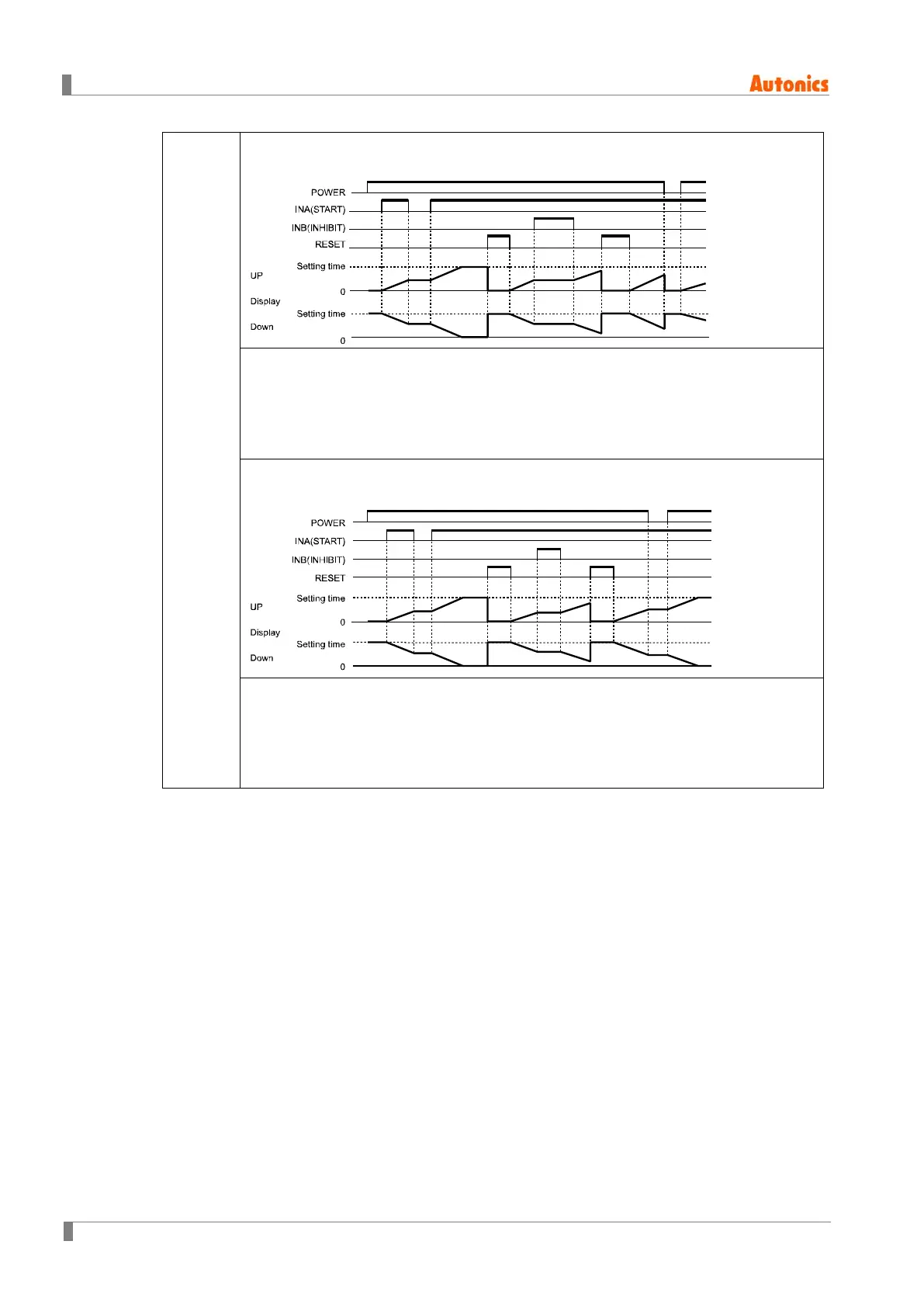

HOLD
[HOLD]
When memory protection setting is OFF
1) Time progresses when INA input is ON.
2) Time progress stops while INA input is OFF.
3) When time reaches setting time, display value will stop and flash.
4) When reset input is applied, display value is initialized.
5) Resets when power is OFF.
When memory protection setting is ON
1) Time progresses when INA input is ON.
2) Time progress stops while INA input is OFF.
3) When time reaches setting time, display value will stop and flash.
4) When reset input is applied, display value is initialized.
5) Display value the moment when power is OFF is memorized.
