Autonics CX6M-1P Series - Memory Protection; Key Lock

6 Timer mode
66 © Copyright Reserved Autonics Co., Ltd.

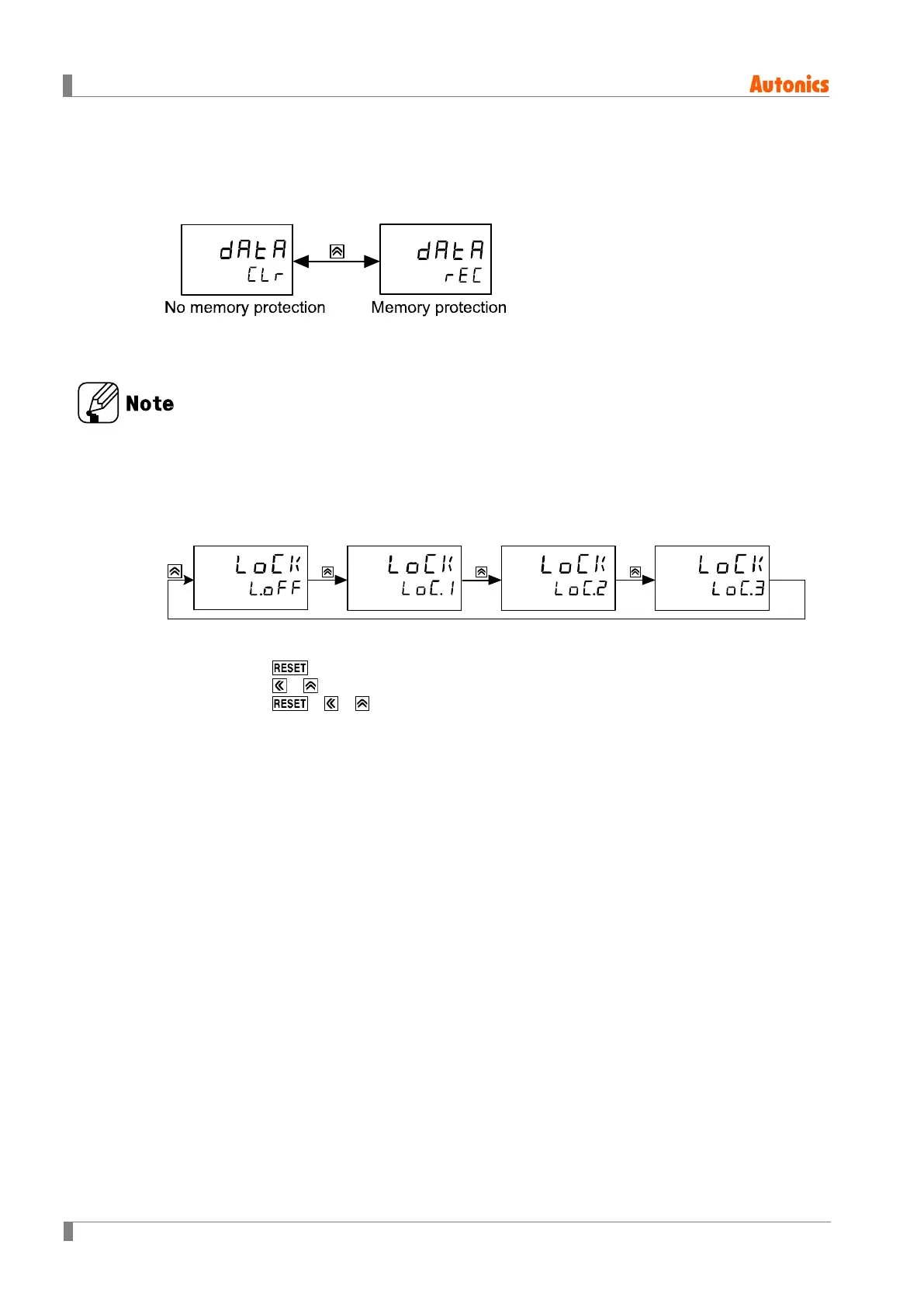

6.2.9 Memory protection
It is available only when timer operation mode is TOTAL
※
1
or
, OntD.
Set the counting value memory protection when the unit power OFF to ON.
※CLR: Resets the counting value when power OFF.
REC: Maintains the counting value when power OFF. (memory protection)
※1: This is for the voltage input(PNP)/no-voltage input(NPN) selectable model (CX6□-□□).
6.2.10 Key lock
Set key lock function depending on counter/timer operation.
※lOFF: Unlock keys.
LOc1: Locks key.
LOc2: Locks , keys.
LOc3: Locks , , keys.
