Autostacker™ Parking Lift 20 P/N 5900248 — Rev. B — May 2021
Assemble the Console and Attach the Power Unit
The Console can go on either side of the front of the Lift.
Tip If you want to place the Console further than 30 inches from your Autostacker, you will
need to get Hydraulic Hoses that are long enough to reach the Lift from where you want
to put the Console. These should be relatively easy to obtain from the local hydraulics
shop; you will also need a longer Return Line.

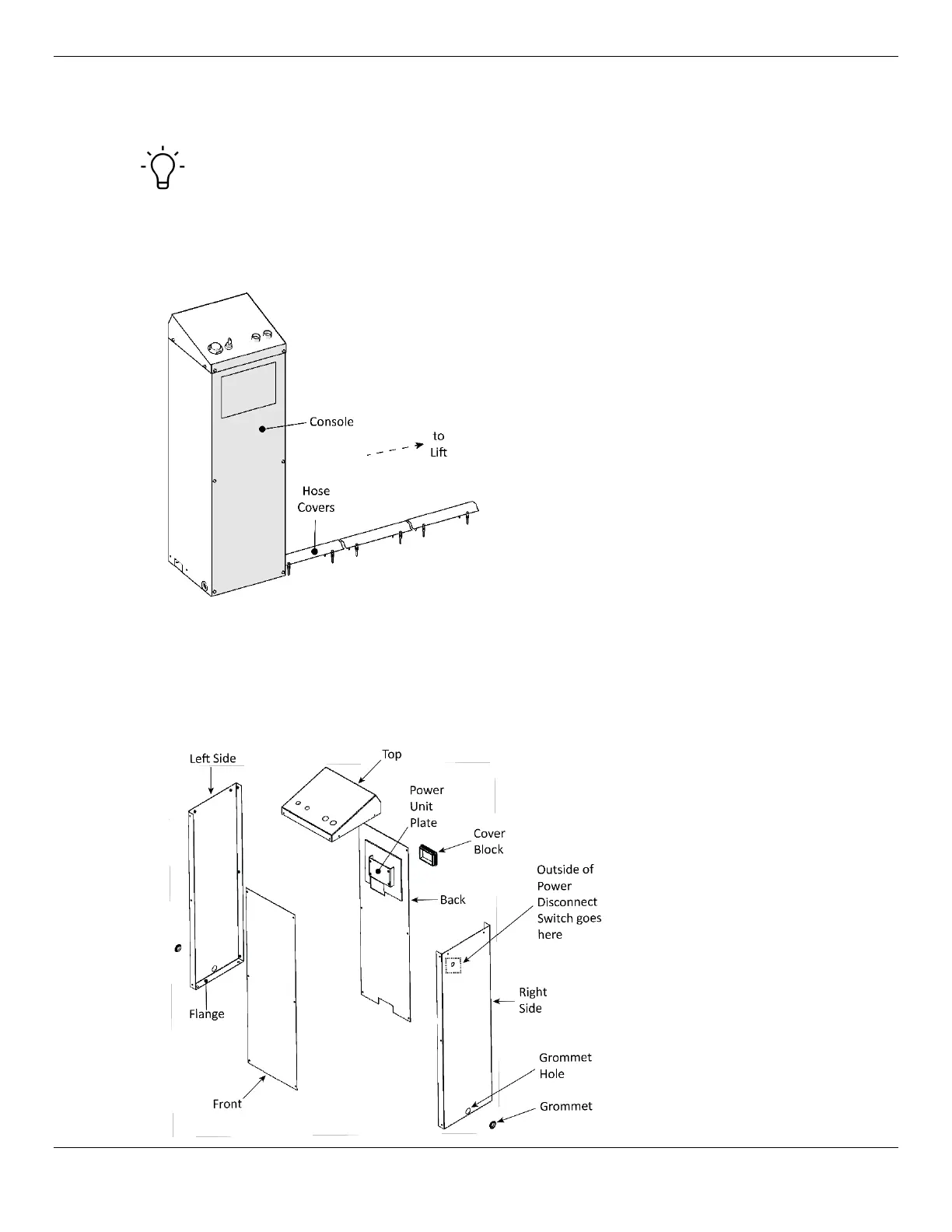

The following drawing shows the components that make up the Console.
To assemble the Console and attach the Power Unit:
1. Select a site for the Console that permits operators to have a full, unobstructed view of the Lift.
2. Arrange all of the Console components as shown below.
Do not attach the Nuts at the top of the sides or the Back at this point;
these will be
attached later when you are ready to attach to the Top of the Console.
