16
The m
inimum clearance between the air conditioner and the combustibles is 1.5
m.
The power cable enables communication between the indoor and outdoor units.
You must first choose the right cable size before preparing it for connection.
G
rou
nding Requirements
The air conditioner is the type I electrical appliance and must ensure a reliable
grounding.
Do not connect the grounding wire to a gas pipe, water pipe, lightning rod,
telephone line, or a circuit poorly grounded to the earth.
The grounding wire is specially designed and shall not be used for other purpose,
nor shall it be fastened with a common tapping screw.
O
th
ers
The connection method of the air conditioner and the power cord and the
interconnection method of each independent element shall be subject to the
wiring diagram affixed to the machine.
The model and rating value of the fuse shall be subject to the silkscreen on
corresponding controller or fuse sleeve.
8-2 Installation of Indoor Unit
8 I
nstallation Parts-checking
Packing list of the indoor unit
NO. Name Quantity Unit
1 I
ndoor U
nit 1 Set
2 R
em
ote Controller 1 PC
3 B
at
teries(7#) 2 PC
4 I
nstructions 1 Set
5 D
ra
in pipe 1 PC
N
OT
E:
※ All accessories shall be subject to actual packaging material, and if there is any
difference, please understand.

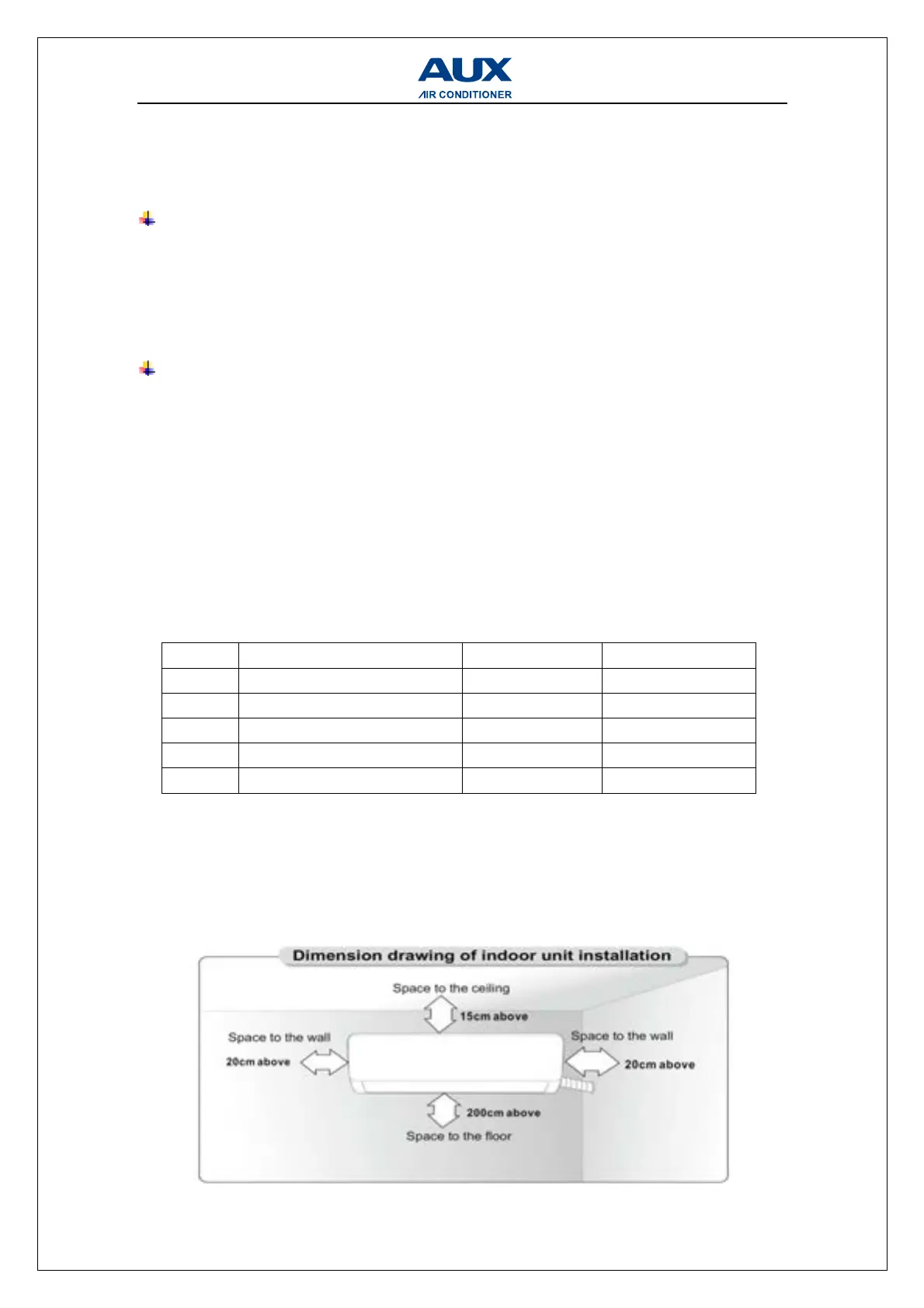

9 Selection of Installation location
