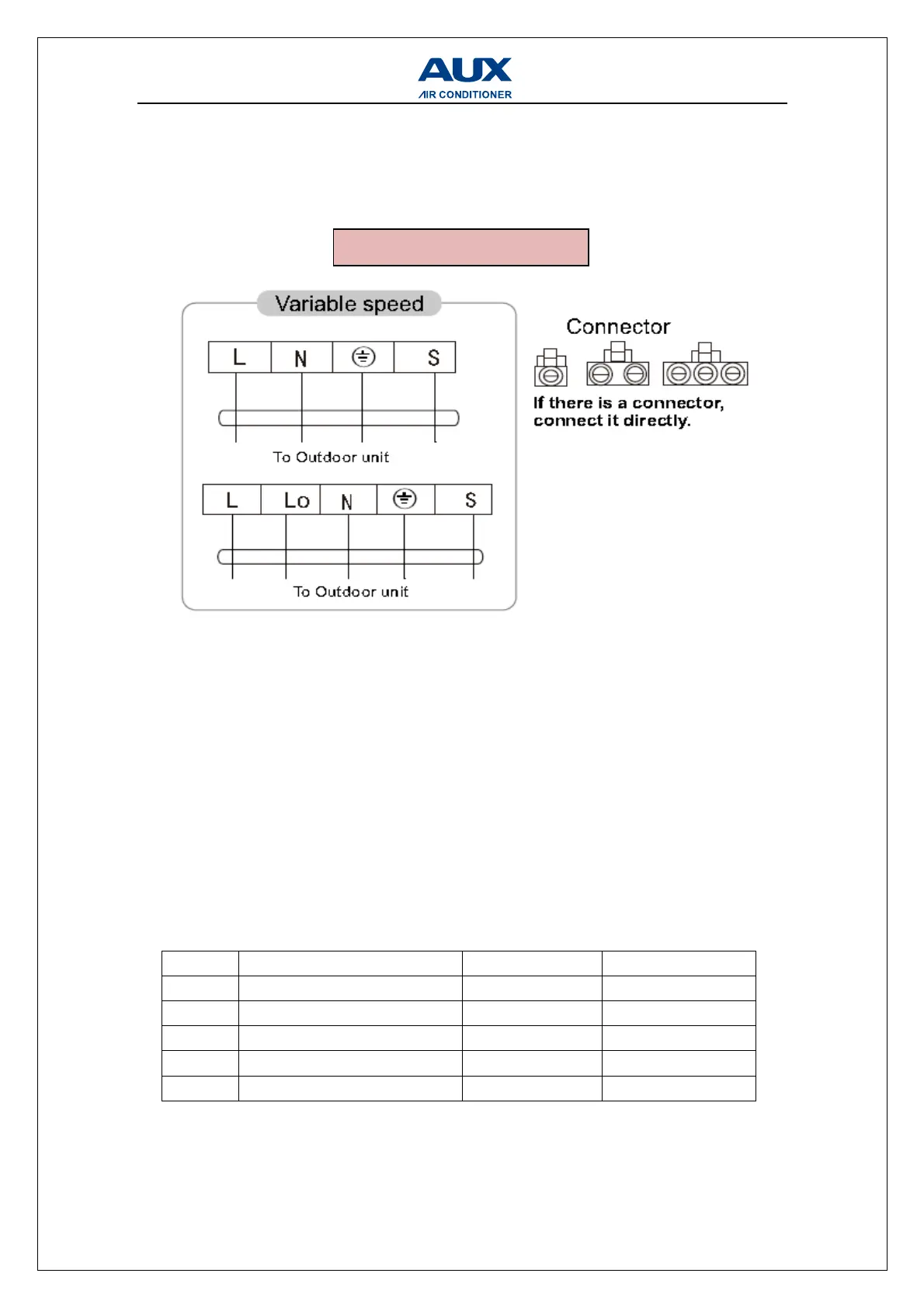

AUX Q Series - Installation of Outdoor Unit

19
●Ground w
ire: Remove the grounding screw out of the electric bracket, cover the
grounding wire end onto the grounding screw and screw it into the grounding hole.
● Fix the cable reliably with fasteners (Pressing board).
● Put the E-parts cover back in its original place and fasten it with screws.
NOTE:
※ This manual usually includes the wiring mode for the different kind of A/C.
We cannot exclude the possibility that some special type of wiring diagrams
are not included.
※ The diagram are for reference only. If the entity is difference with this wiring
Diagram , please refer to the detailed wiring diagram adhered on the unit which
you purchased.
8-3 Installation of outdoor Unit
18 Packing list of the outdoor unit
NO. Name Quantity Unit
1 Out
door Unit 1 Set
2 Conne
cting pipe 2 PC
3 Pl
astic Strap 1 ROLL
4 Pi
pe Protection Ring 1 Set
5 Lut
ing (putty) 1 PACKET
19 S
election of Installation location
W
ir
ing Diagram
